GRAPPLE CONTROL VALVE FITTINGS (PILOT) (DUAL FUNCTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	1	Cap Screw	M12 X 30
2	19M8183	1	Cap Screw	M10 X 90
3	19M8637	2	Cap Screw	M10 X 40
4	24M7047	1	Washer	13 X 24 X 2.500 mm
5	38H1004	2	Elbow Fitting	-
6	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	8	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1007	2	Elbow Fitting	-
9	T77858	10	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	U12547	10	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	38H1009	1	Elbow Fitting	-
12	T77814	5	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
13	38H1029	1	Tee Fitting	-
14	38H1030	1	Tee Fitting	-
15	38H1093	1	Elbow Fitting	-
16	38H1159	1	Adapter Fitting	-
17	R28782	3	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
18	38H1160	3	Adapter Fitting	-
19	38H1163	6	Adapter Fitting	-
20	38H1175	1	Adapter Fitting	-
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	38H1215	1	Adapter Fitting	-
24	38H1435	1	Elbow Fitting	-
27	T215013	1	Tee Fitting	-
28	AT321211	1	Fitting	-
29	R44302	1	Tie Band	-
30	R77175	2	Cover	-
31	RE60700	2	Diagnostic Coupling	-
32	T152706	1	Restrictor	-
33	-	1	Part 30	(ORDER AT359328 ) (SUB FOR T154939 ) (INCLUDES T77858 AND U12547)
34	T163292	1	Pin	-

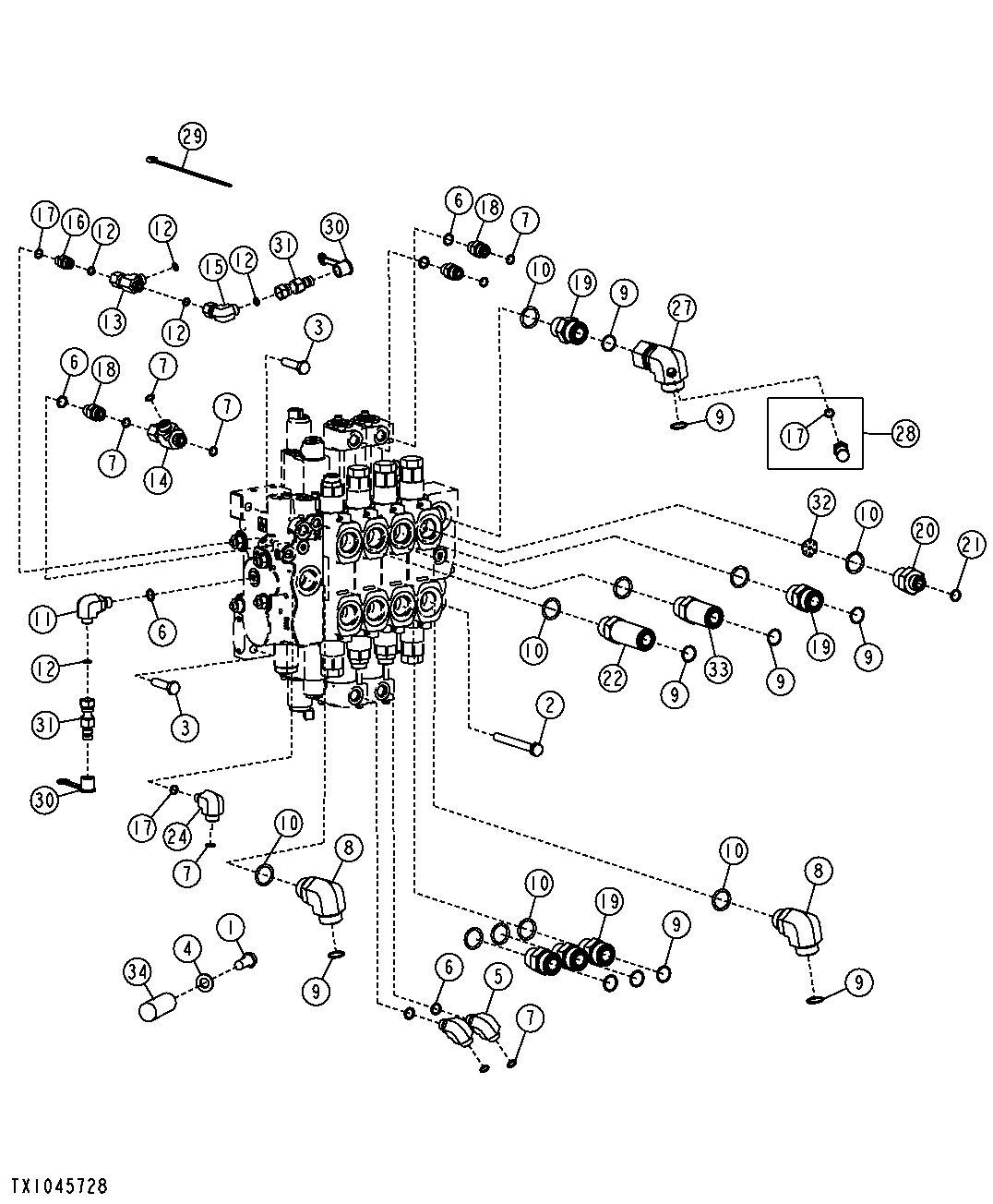

GRAPPLE CONTROL VALVE FITTINGS (PILOT) (DUAL FUNCTION)
