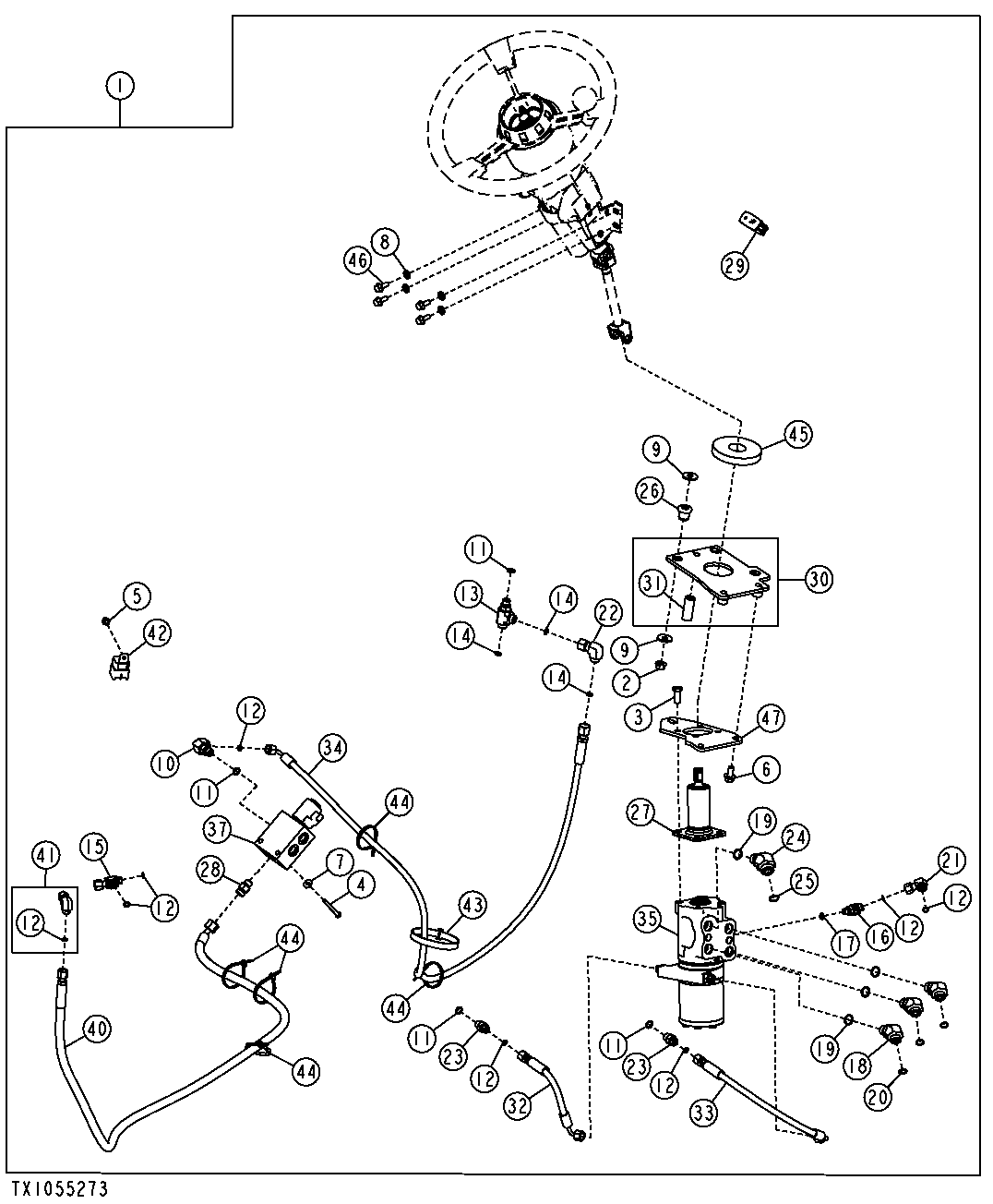

DUAL MODE STEERING (848H) (SN 624143-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT366816	1	Steering Column Kit	(SUB FOR AT366817)(WHOLEGOODS)
2	14M7296	3	Flange Nut	M10
3	19M7402	4	Cap Screw	M10 X 25
4	19M7529	2	Cap Screw	M6 X 55
5	19M7774	1	Screw	M6 X 12
6	19M7784	3	Screw	M10 X 20
7	24M7139	2	Washer	6.400 X 18 X 1.600 mm
8	24M7238	4	Washer	8.700 X 17 X 2 mm
9	24M7296	6	Washer	10.500 X 30 X 2.500 mm
10	38H1009	1	Elbow Fitting	-
11	R26448	4	O-Ring	-
12	T77814	8	O-Ring	-
13	38H1023	1	Tee Fitting	-
14	T77613	3	O-Ring	-
15	38H1029	1	Tee Fitting	-
16	38H1044	1	Elbow Fitting	-
17	R28782	1	O-Ring	-
18	38H1046	3	Elbow Fitting	-
19	R26375	4	O-Ring	-
20	T77857	3	O-Ring	-
21	38H1093	1	Elbow Fitting	-
22	38H1094	1	Elbow Fitting	-
23	38H1168	2	Adapter Fitting	-
24	38H1602	1	Elbow Fitting	-
25	T77932	1	O-Ring	-
26	AT116162	3	Isolator	-
27	AT326326	1	Steering Column	-
28	AT326636	1	Check Valve	-
29	AT327022	1	Toggle/Rocker Switch	-
30	AT329771	1	Support	-
31	T122329	1	Bushing	-
32	AT331897	1	Hydraulic Hose	-
33	AT331898	1	Hydraulic Hose	-
34	AT332023	1	Hydraulic Hose	-
35	AT330806	1	Seal Kit	-
35	AT353988	1	Valve	-
37	AT354279	1	Solenoid Hydraulic Valve	-
37	AT354893	1	Seal Kit	-
37	AT354894	1	Solenoid Valve Coil	-
40	AT365792	1	Hydraulic Hose	-
41	AT366652	1	Adapter	-
42	AT75769	1	Relay	-
43	N189220	1	Tie Band	-
44	R44302	5	Tie Band	-
45	T131980	1	Isolator	-
46	T164946	4	Screw	-
47	T223190	1	Plate	-

DUAL MODE STEERING (848H) (SN 624143-)
