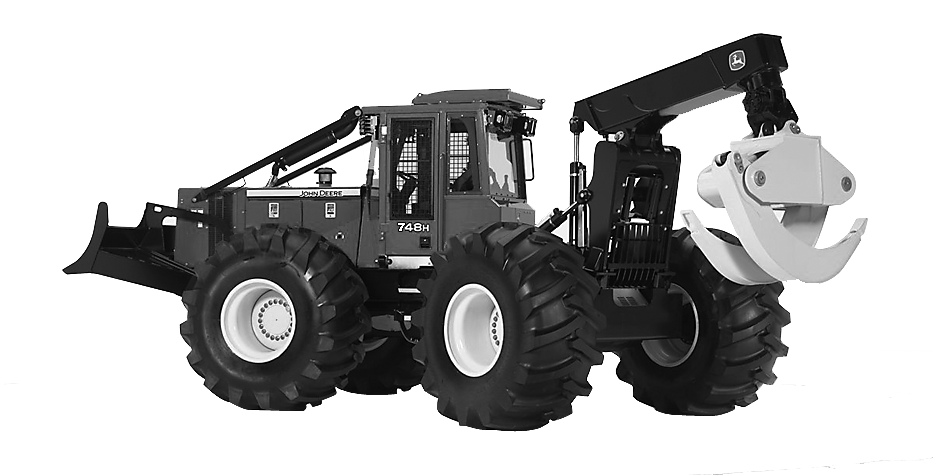

748H Cable and Grapple Skidder (PIN: 1DW748HX_ _C630436 - C666892) (PIN: 1DW748HX_ _D630436 - D666892)

17 Frame Chassis Or Supporting Structure

7 Traction (Engine) And Disconnect Clutch

02A Axles, Differentials & Suspension Systems

748H Cable and Grapple Skidder (PIN: 1DW748HX_ _C630436 - C666892) (PIN: 1DW748HX_ _D630436 - D666892)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	02J 1400 TeamMate™ IV Rear Extreme Duty Axle YZ19493	-
-	-	1	03C DF180 Transmission YZ19461	-
-	-	1	03B DF180 Transmission YZ19460	-
-	-	1	02P 1400 TeamMate™ IV Rear Axle YZ19121	-
-	-	1	02O Axle YZ19118	-
-	-	1	02N Rear Axle with Differential Lock, SWEDA II - 1400 Series TeamMate™ IV YZ19727	-
-	-	1	02M Front Axle with Differential Lock, SWEDA II- 1400 Series Teammate™ IV YZ19726	-
-	-	1	02L Rear Axle with Differential Lock, SWEDA II 8.5C - 1400 Series TeamMate™ IV YZ19196	-
-	-	1	02K Front Axle with Differential Lock, SWEDA II 8.5C - 1400 Series TeamMate™ IV YZ19631	-
-	-	1	02I 1400 TeamMate™ IV Rear Axle YZ19723	-
-	-	1	02H Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19722	-
-	-	1	02G Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19629	-
-	-	1	02F 1400 TeamMate™ IV Front Axle YZ19491	-
-	-	1	02E 1400 SWEDA TeamMate™ IV, Rear Axle, 7C YZ19725	-
-	-	1	02D Rear Axle with Differential Lock, SWEDA - 1400 Series TeamMate™ IV YZ19123	-
-	-	1	02C Front Axle 1400 SWEDA TMIV 7C YZ19724	-
-	-	1	02B Front Axle with Differential Lock, SWEDA - 1400 Series TeamMate™ IV YZ19630	-

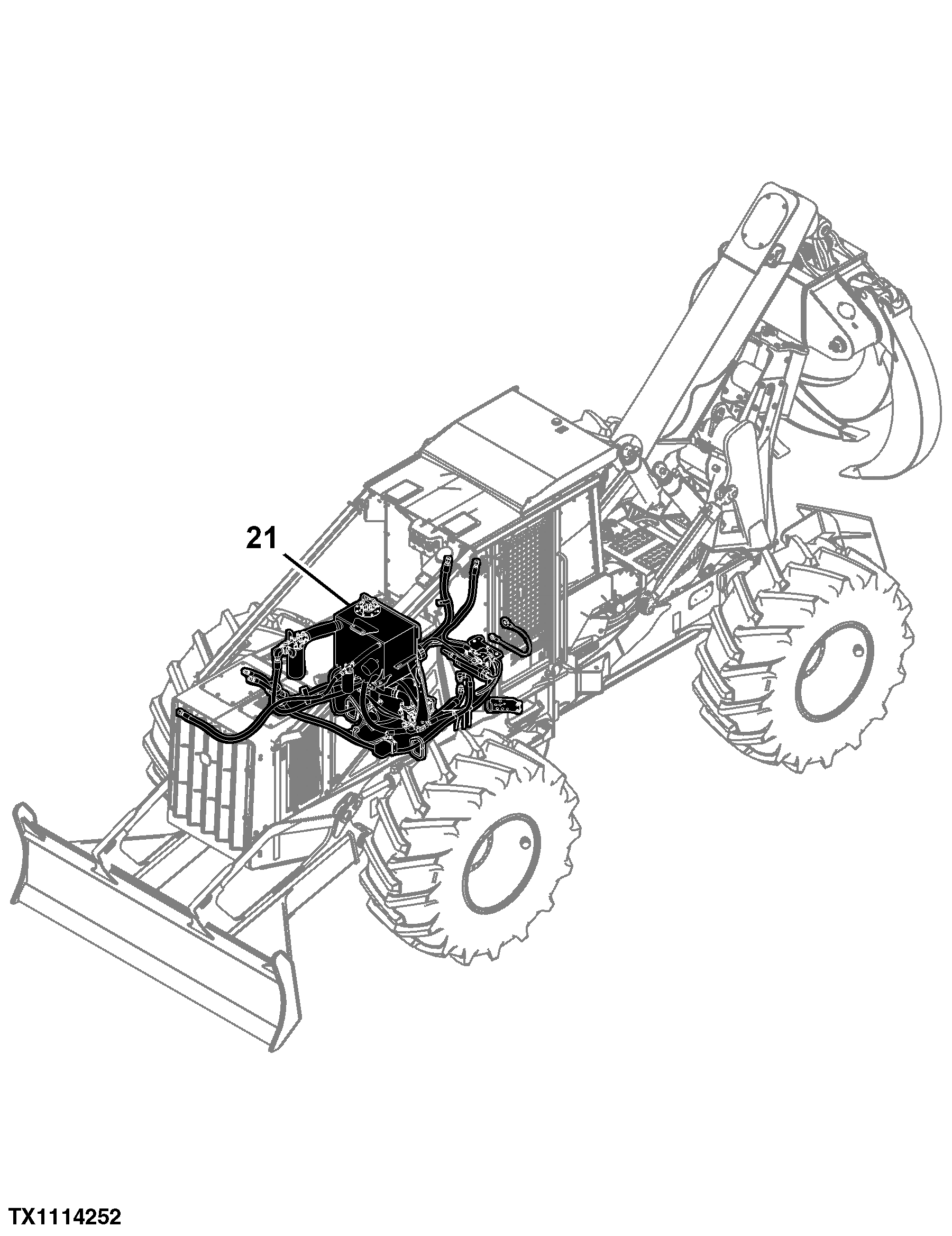

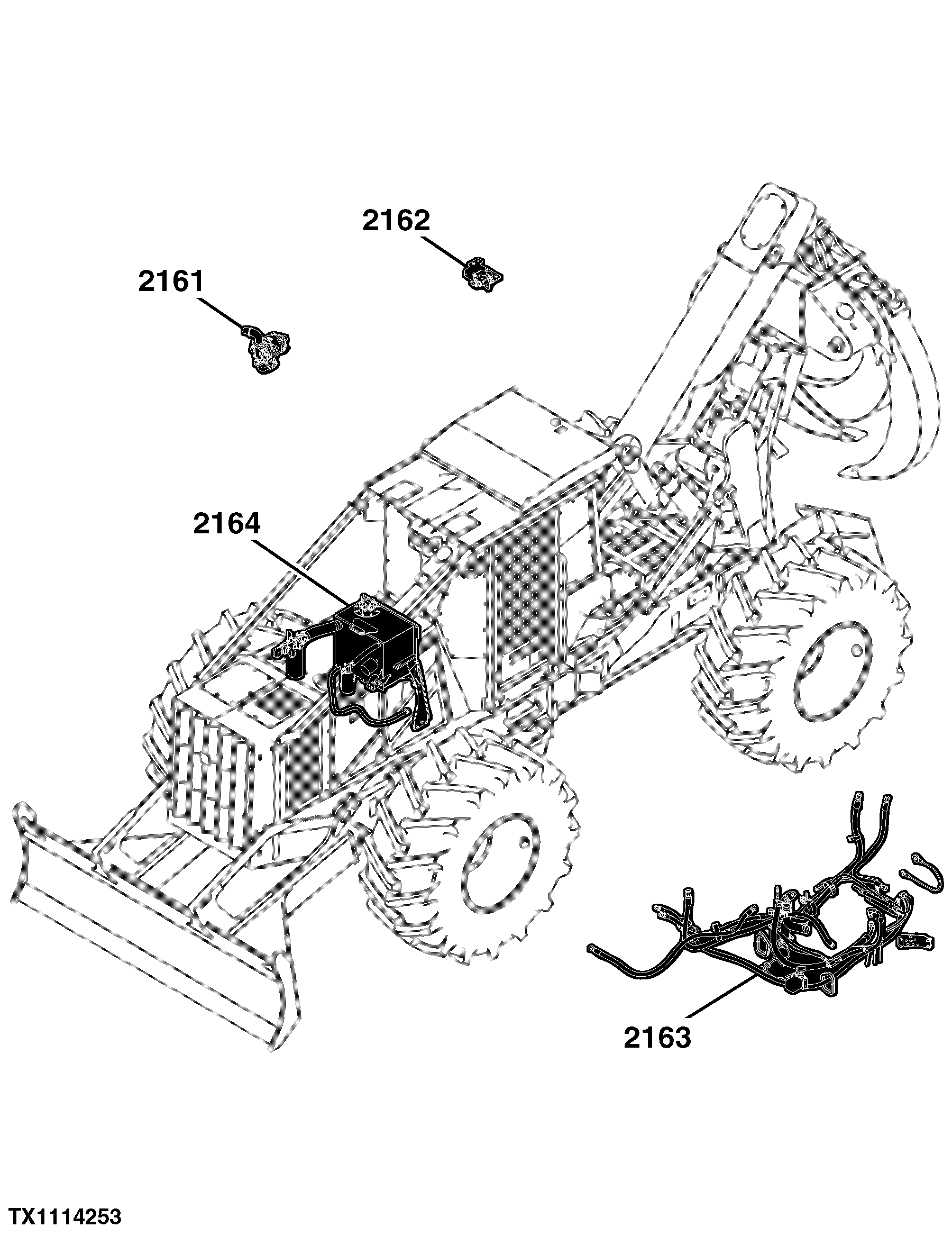

-	-	1	21 Vehicle Main Hydraulic System	-

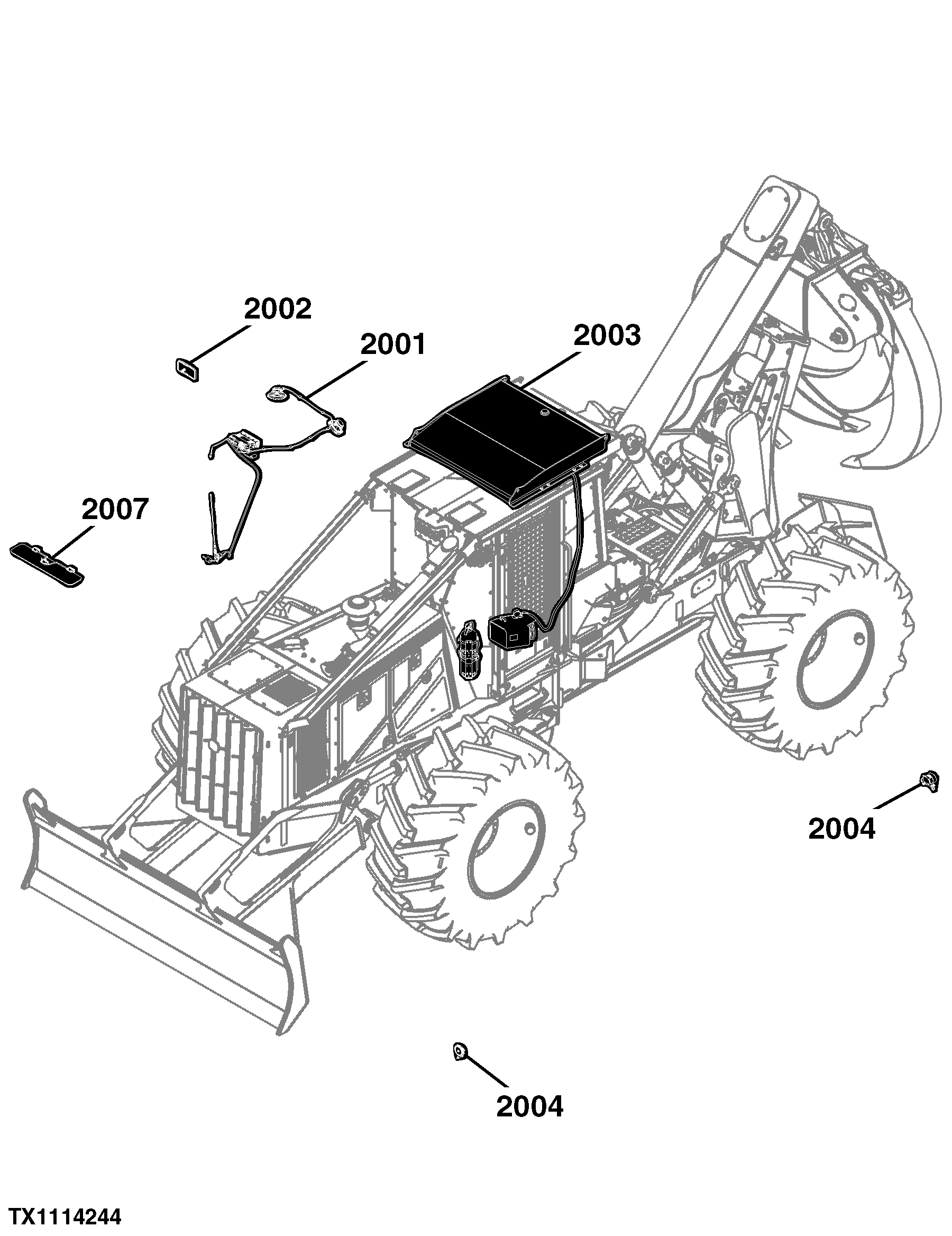

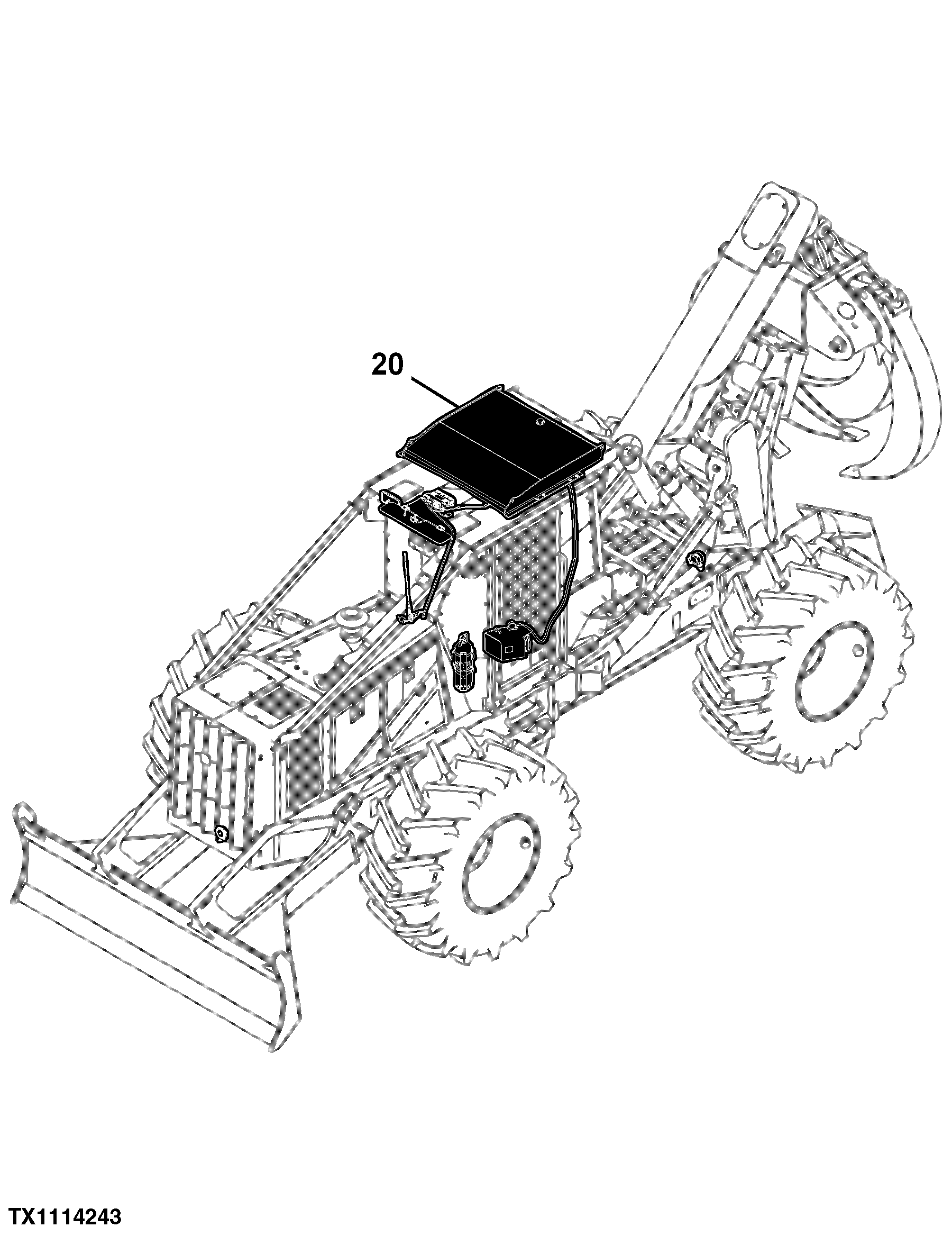

-	-	1	20 Safety, Convenience & Miscellaneous	-

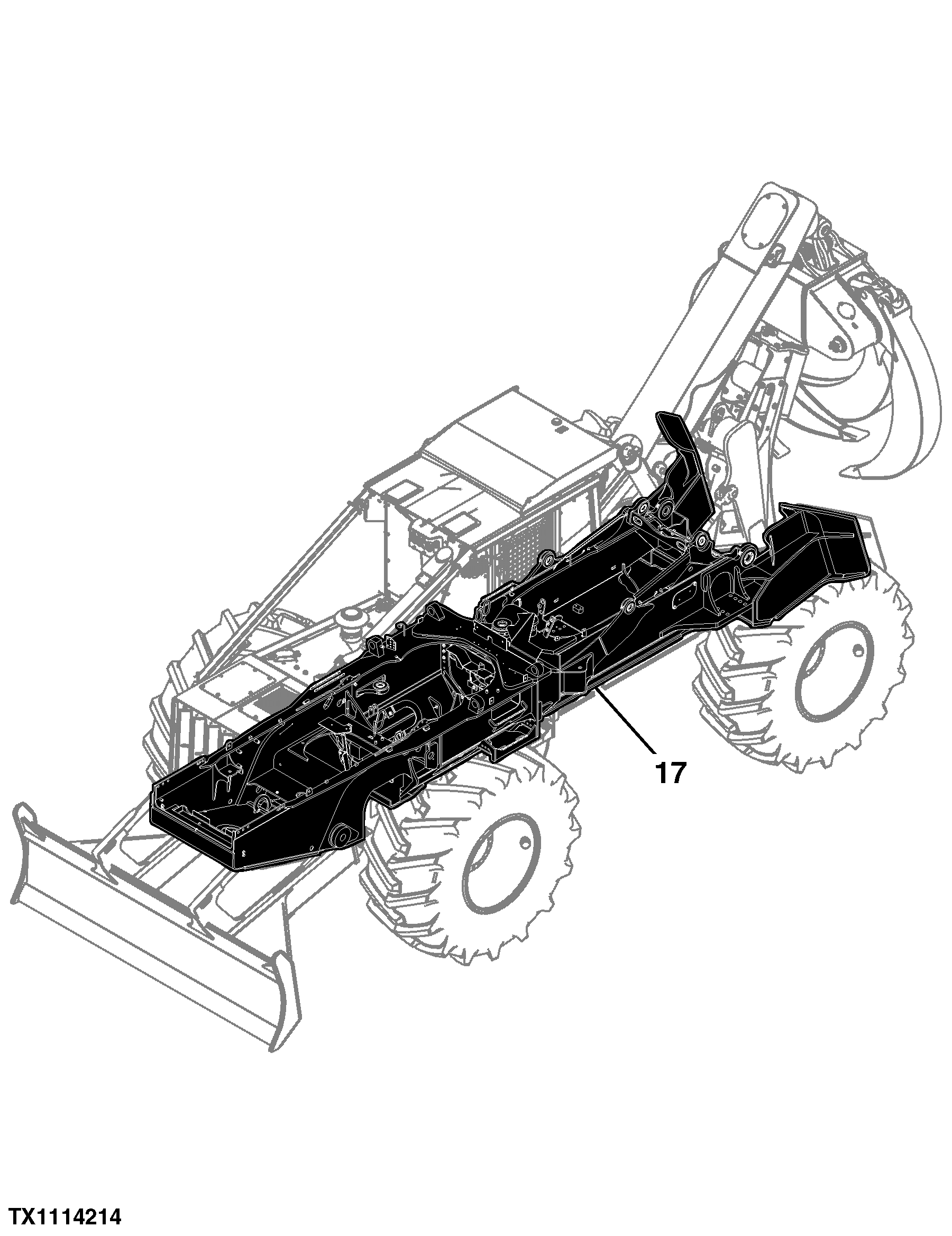

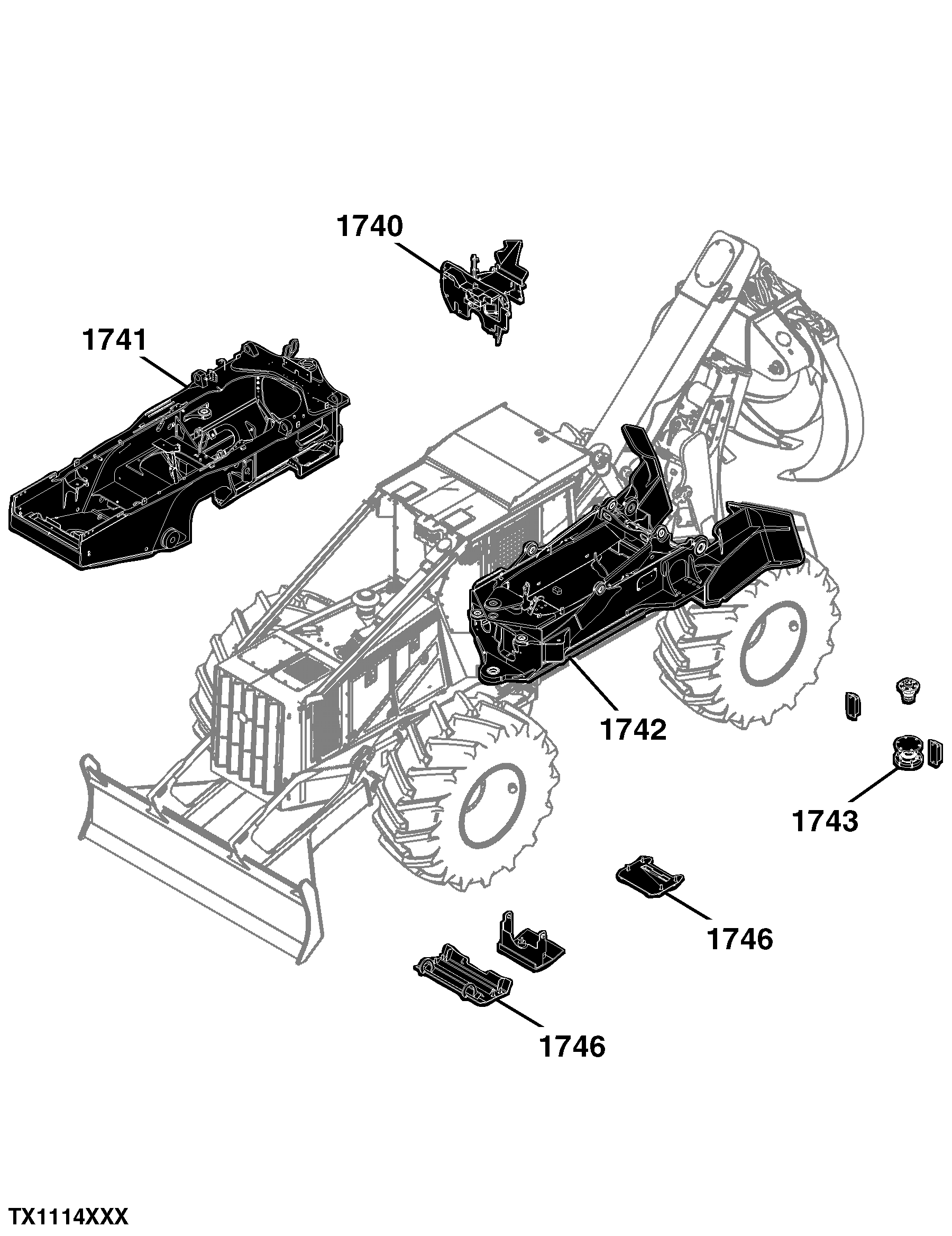

-	-	1	17 Frame Chassis Or Supporting Structure	-

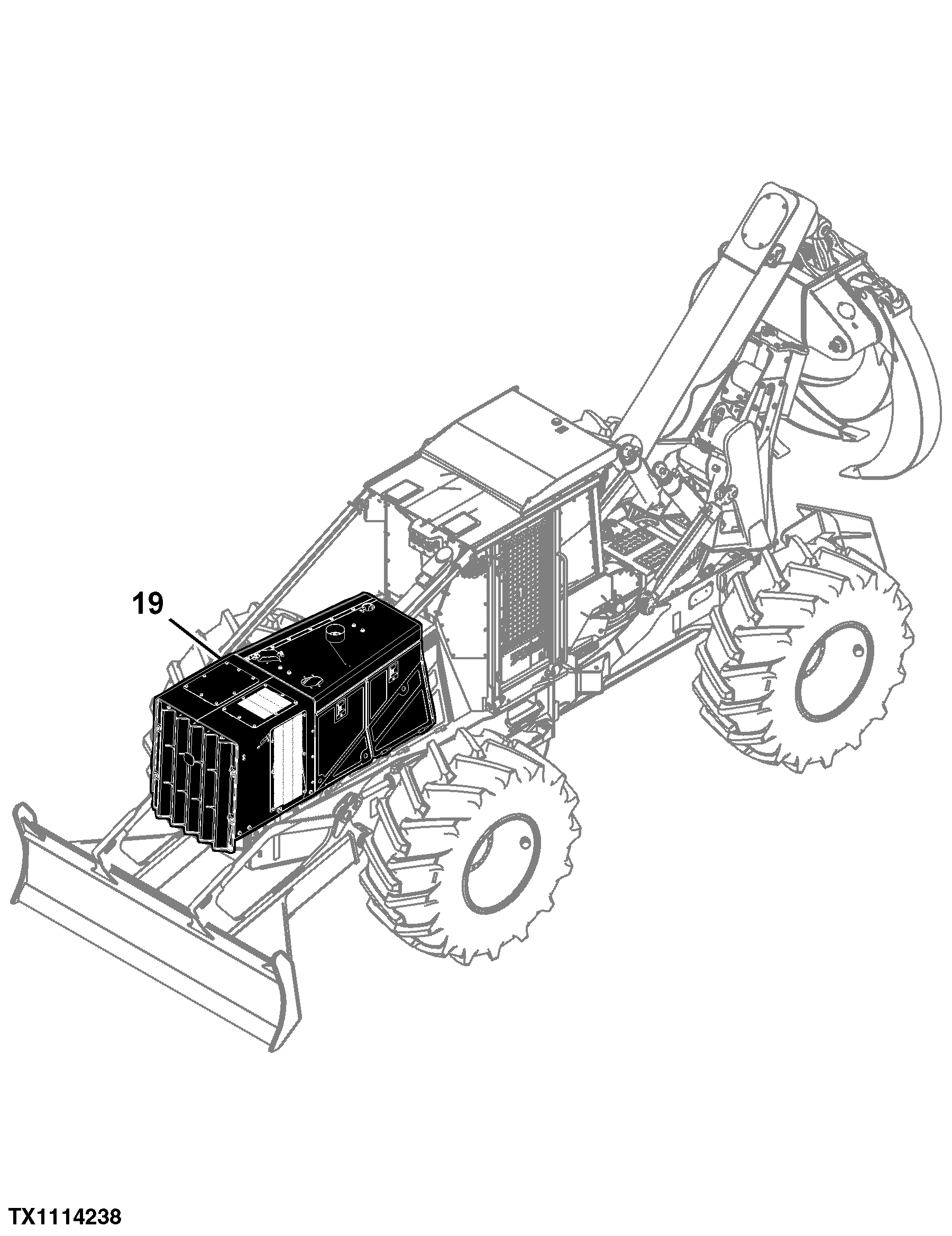

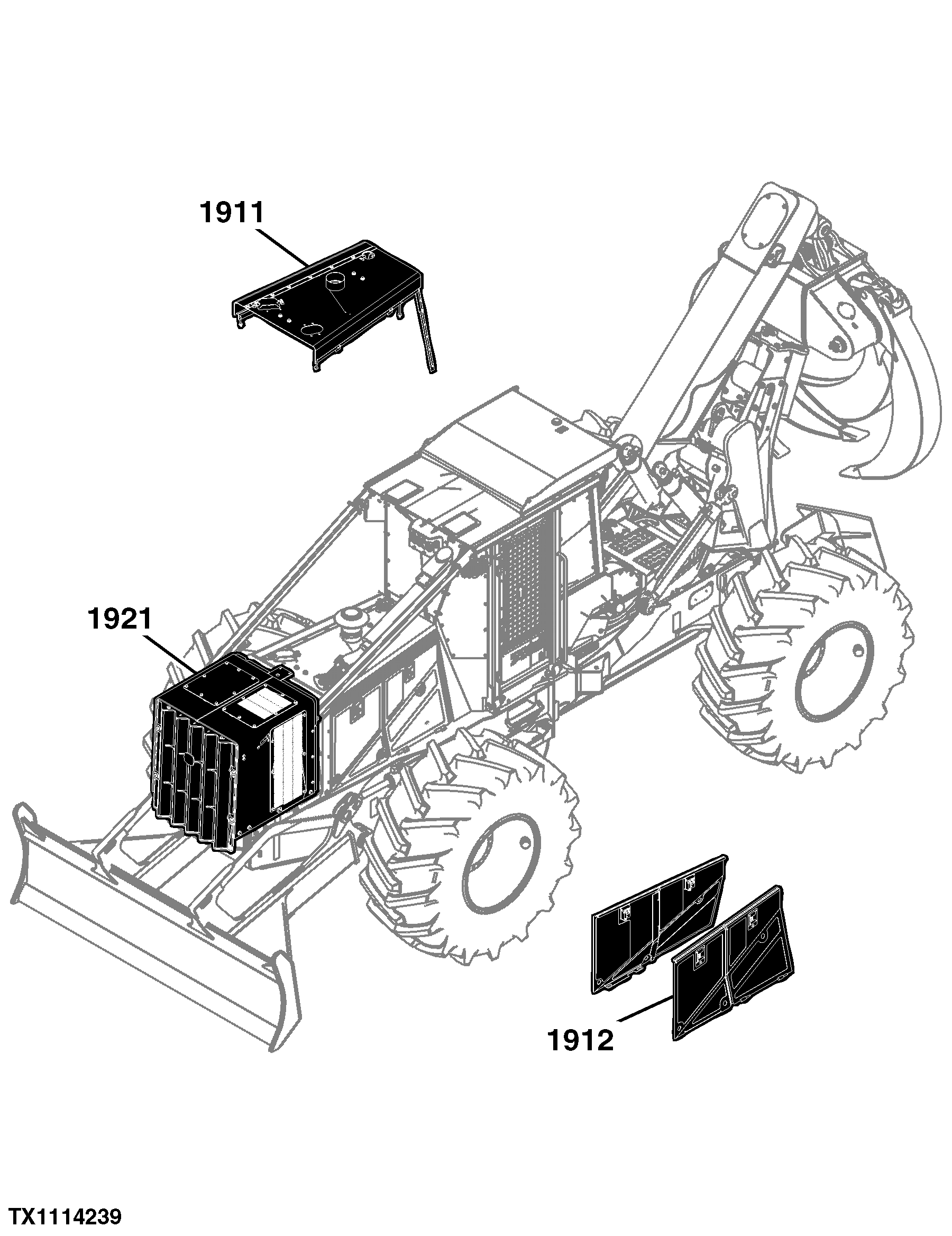

-	-	1	19 Sheet Metal & Styling	-

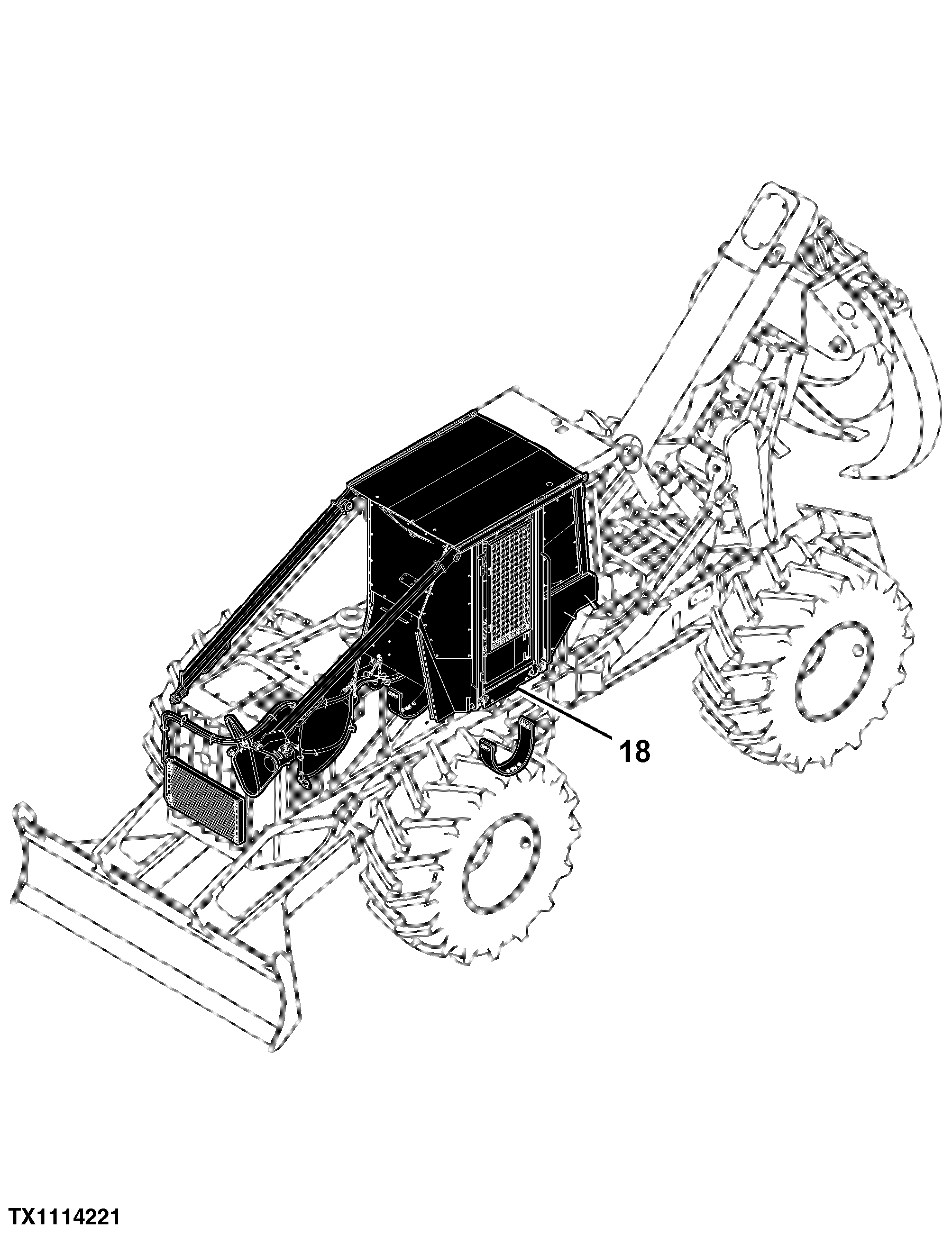

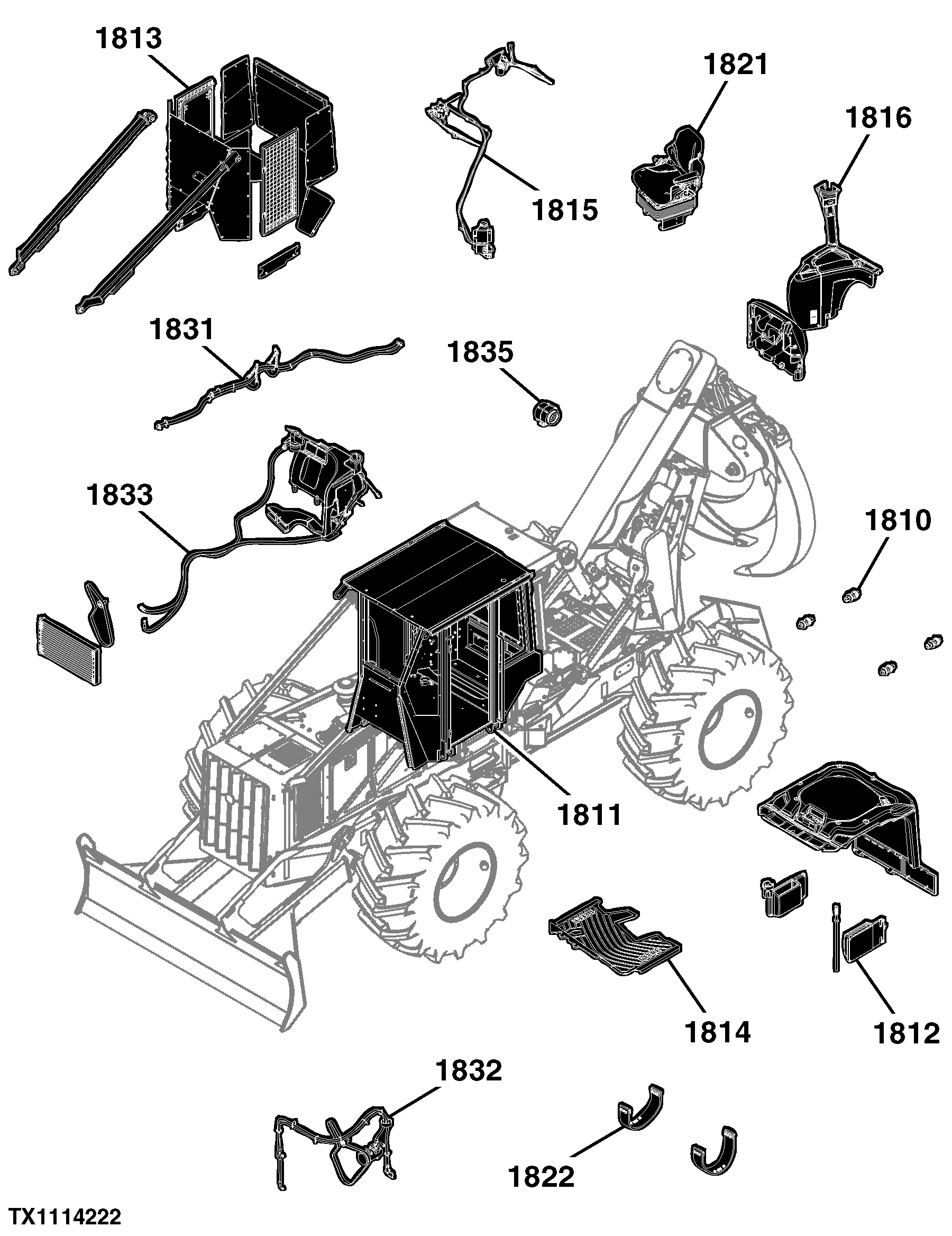

-	-	1	18 Operator's Station	-

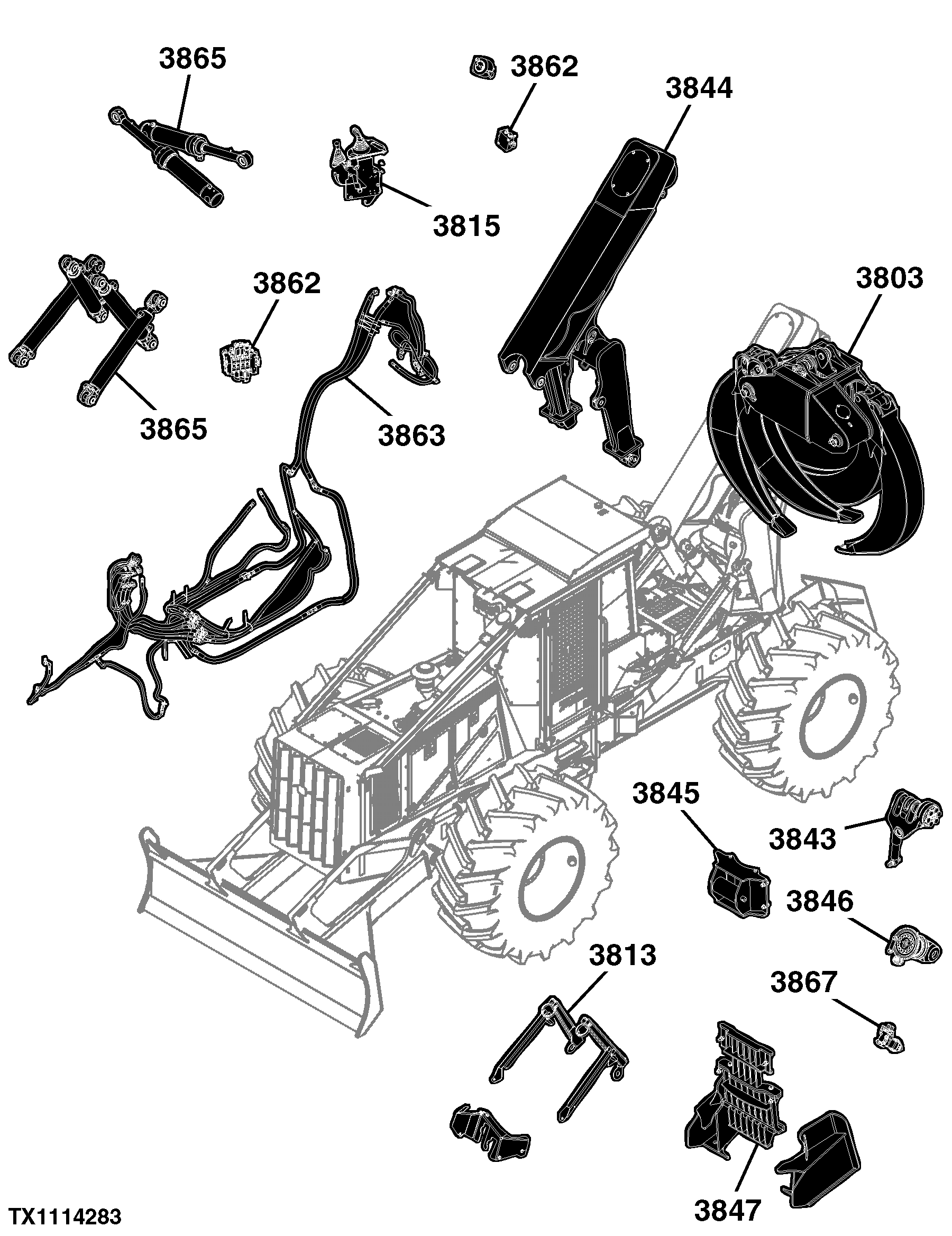

-	-	1	38 Grapple	-

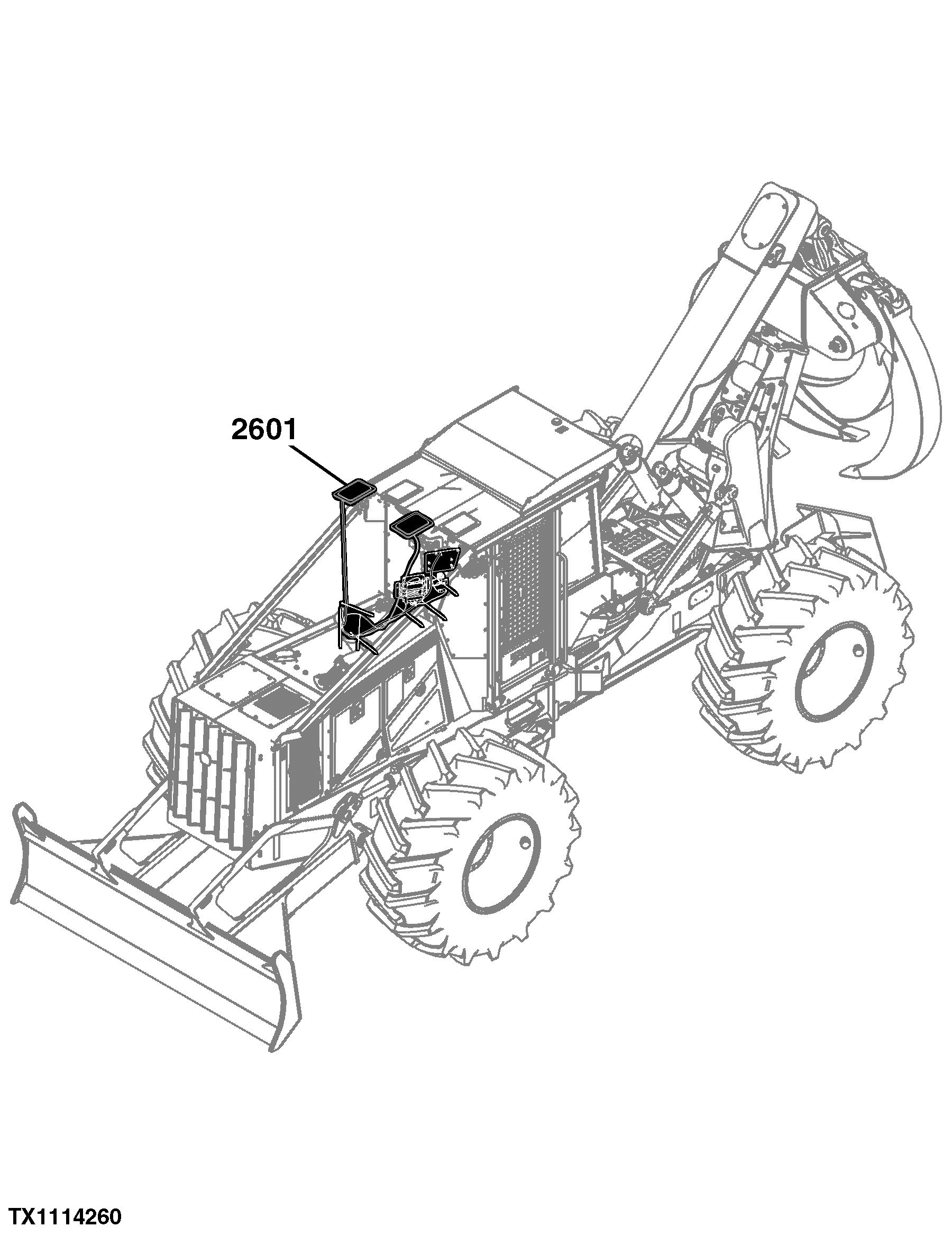

-	-	1	26 Global Vehicle Communication	-

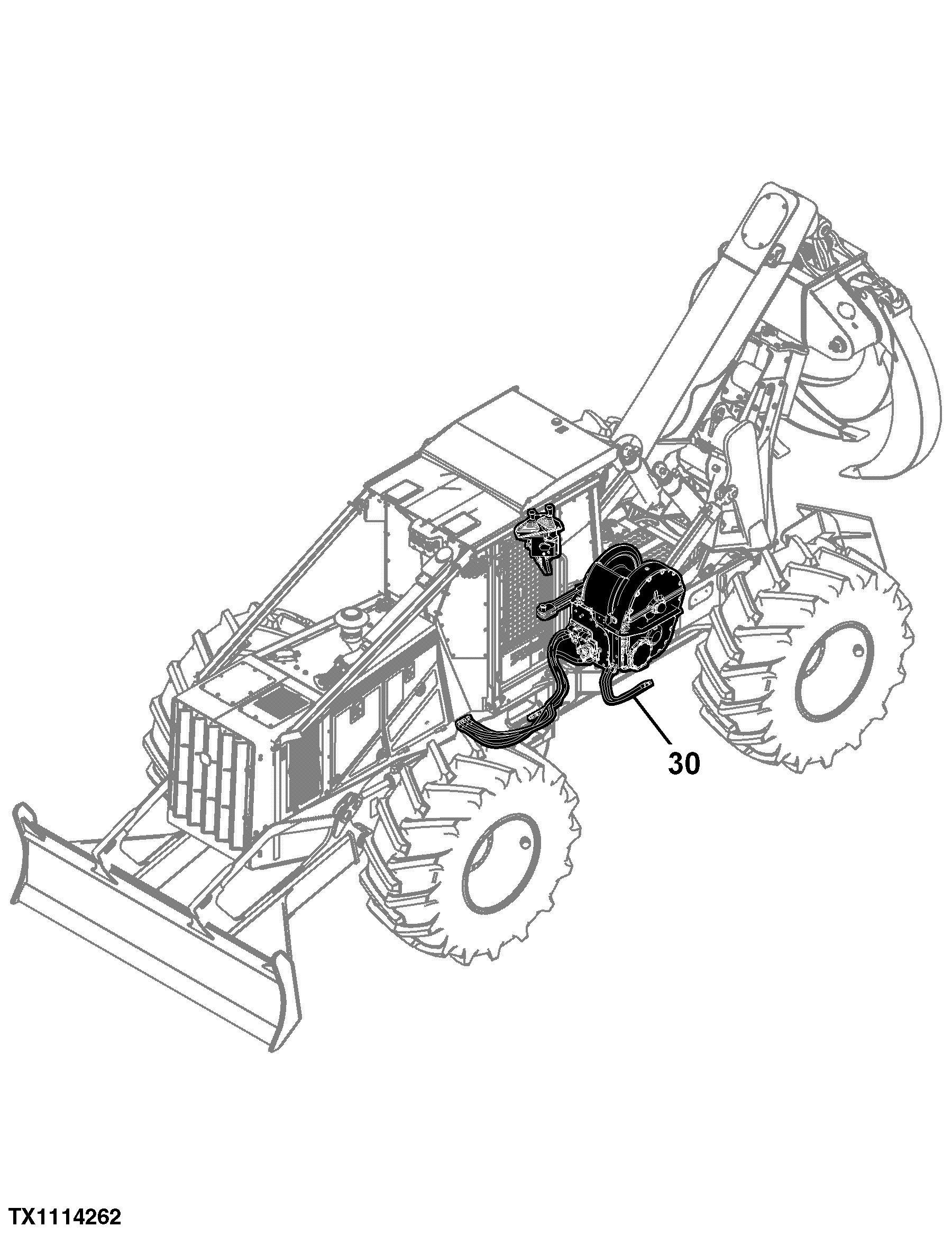

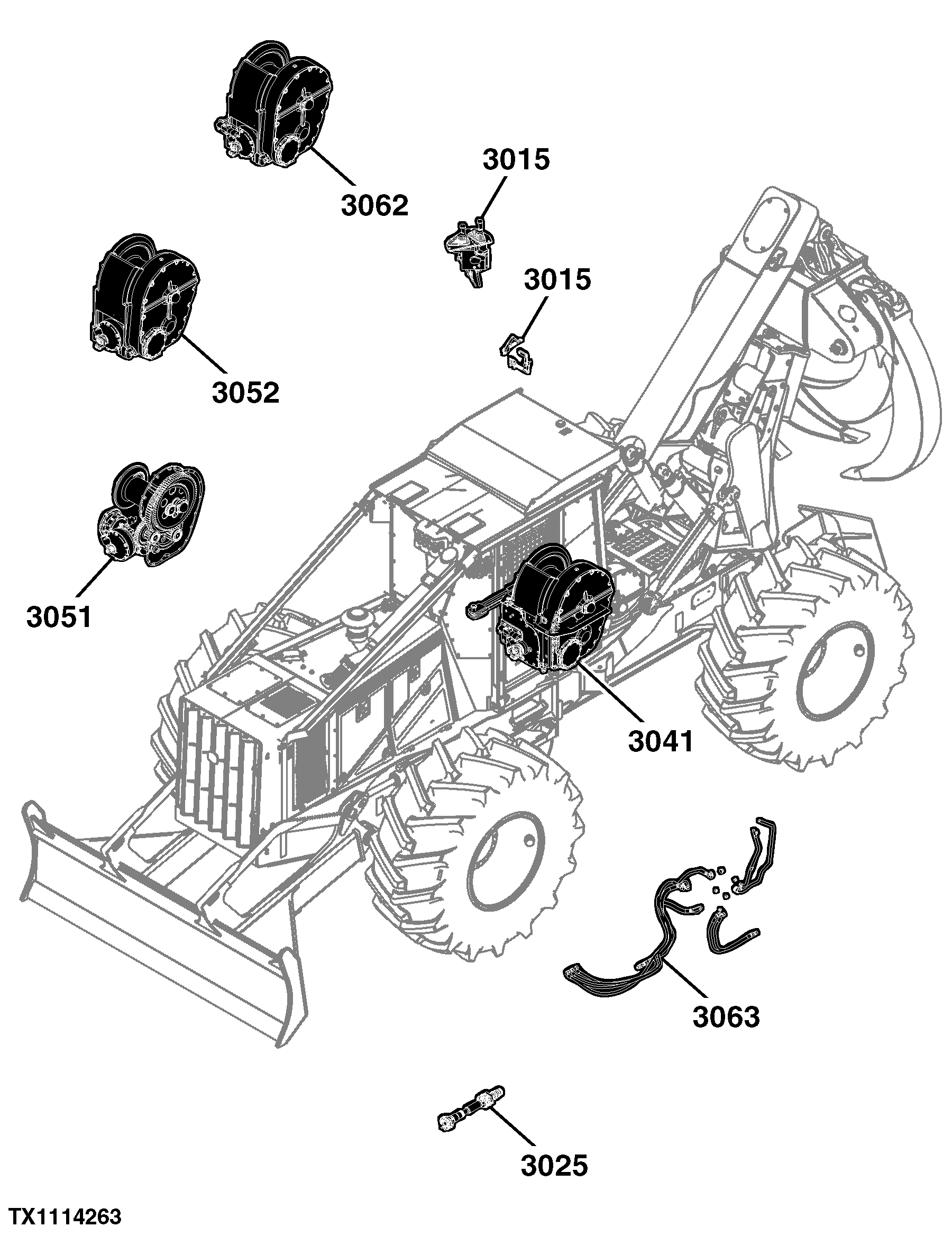

-	-	1	30 Winch	-

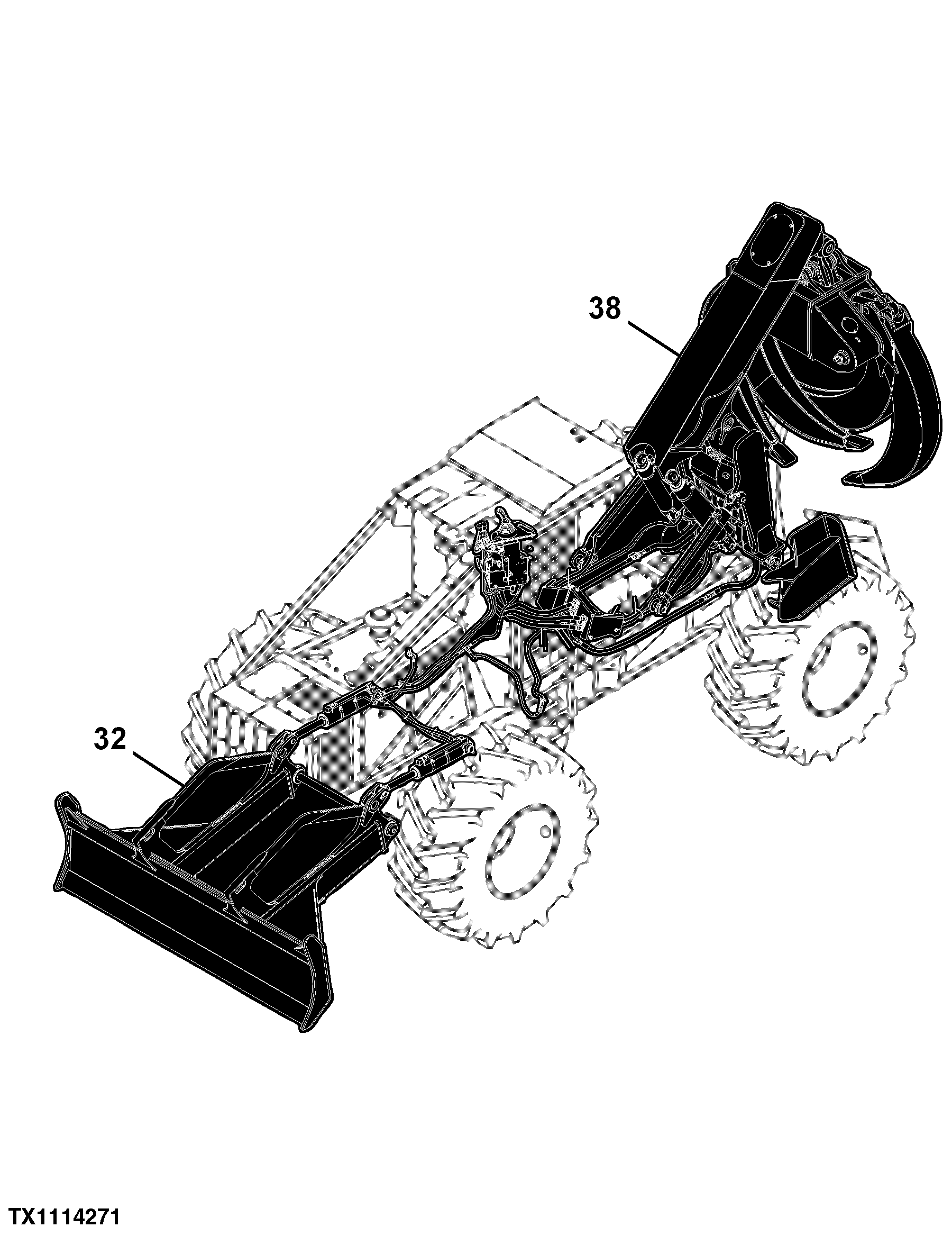

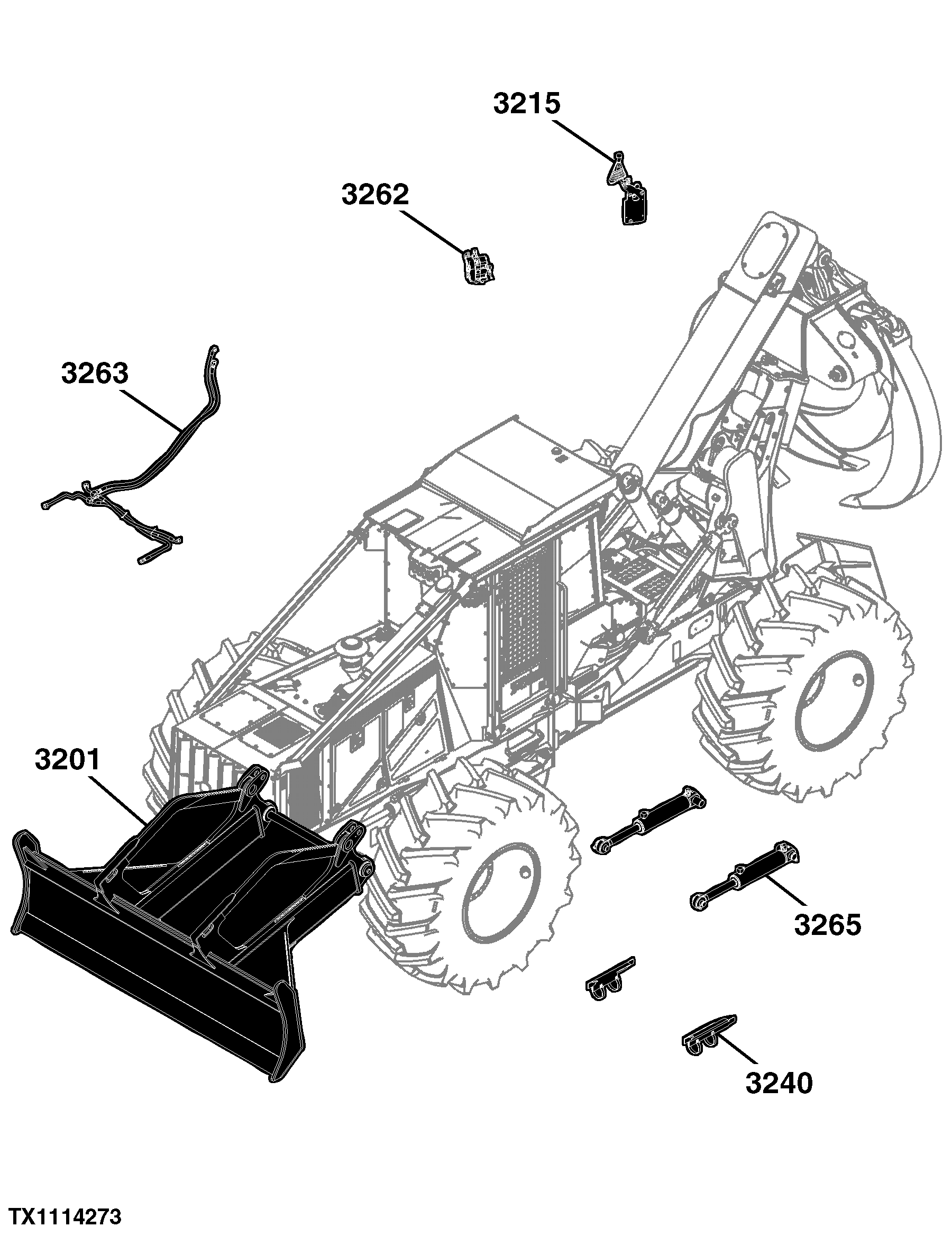

-	-	1	32 Dozers	-

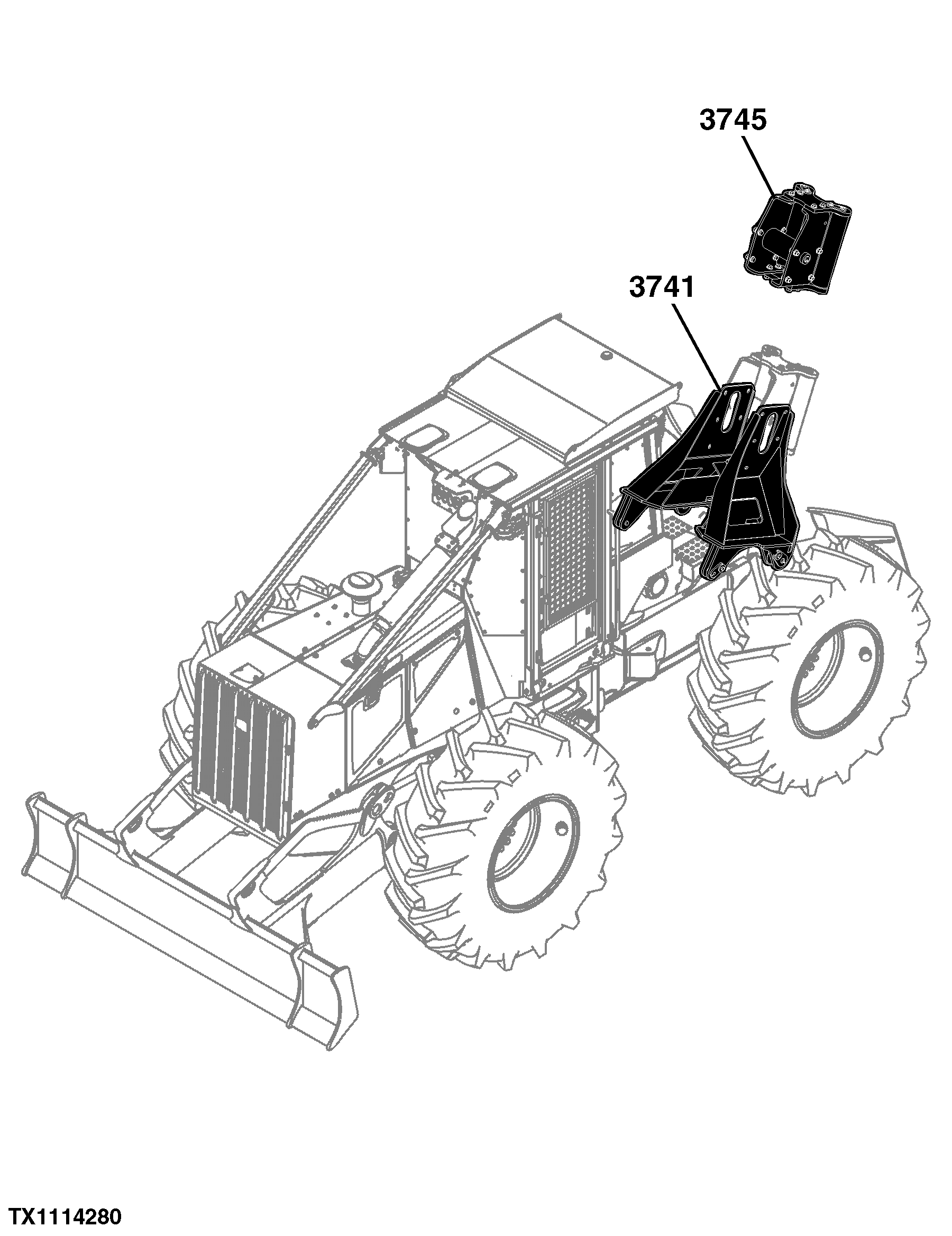

-	-	1	37 Arch Or Boom Or Cranes	-

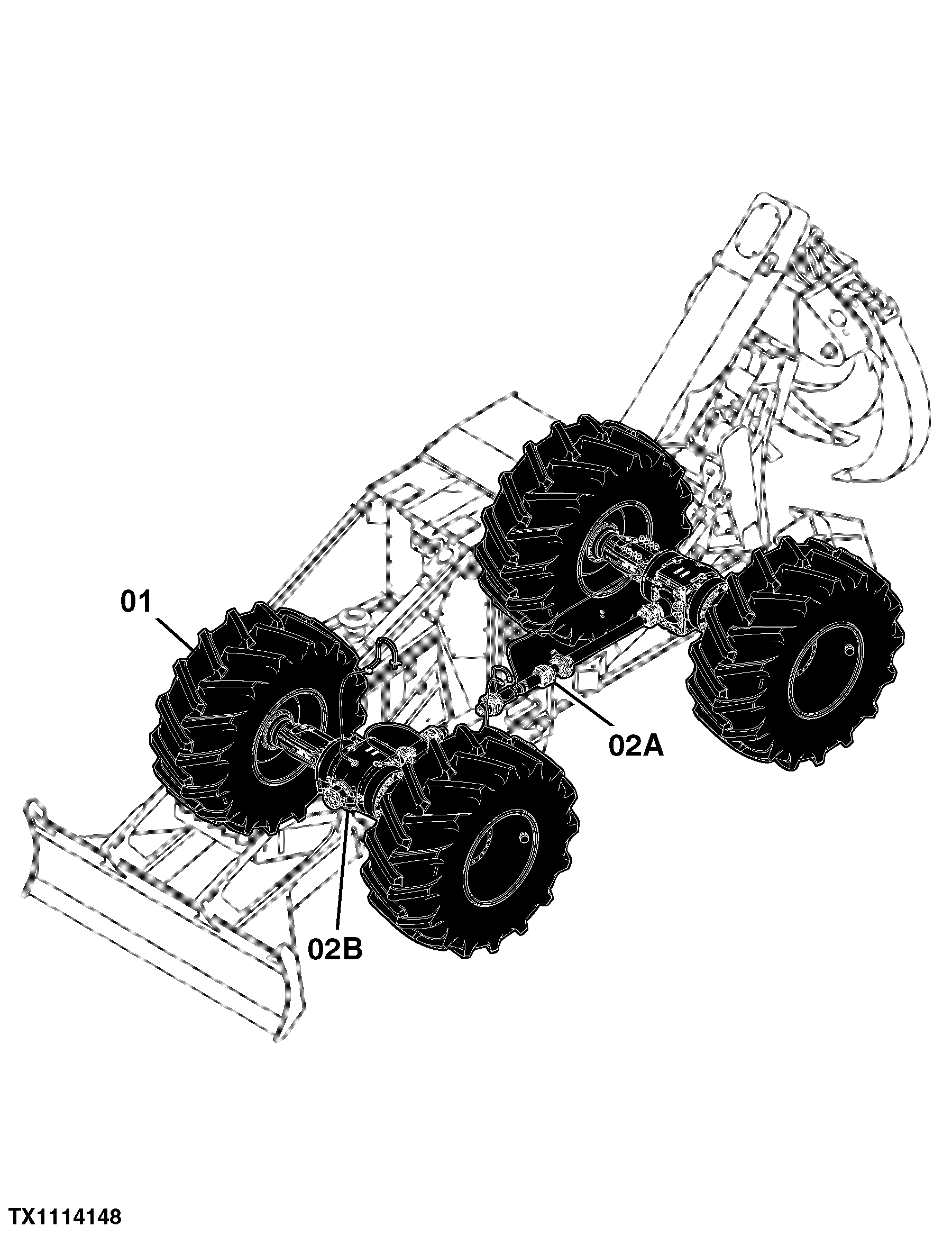

-	-	1	1 Wheels & Tires & Tracks	-

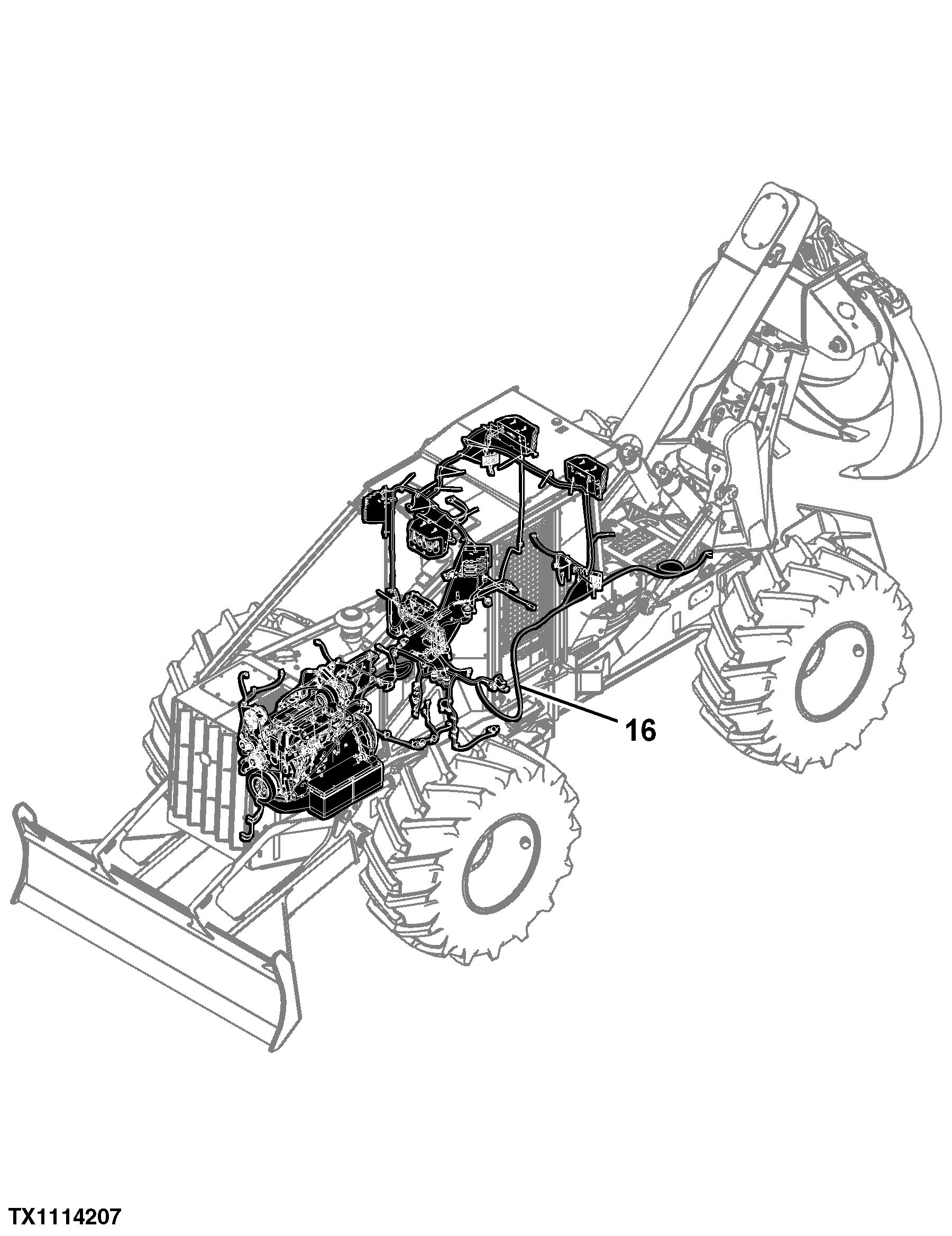

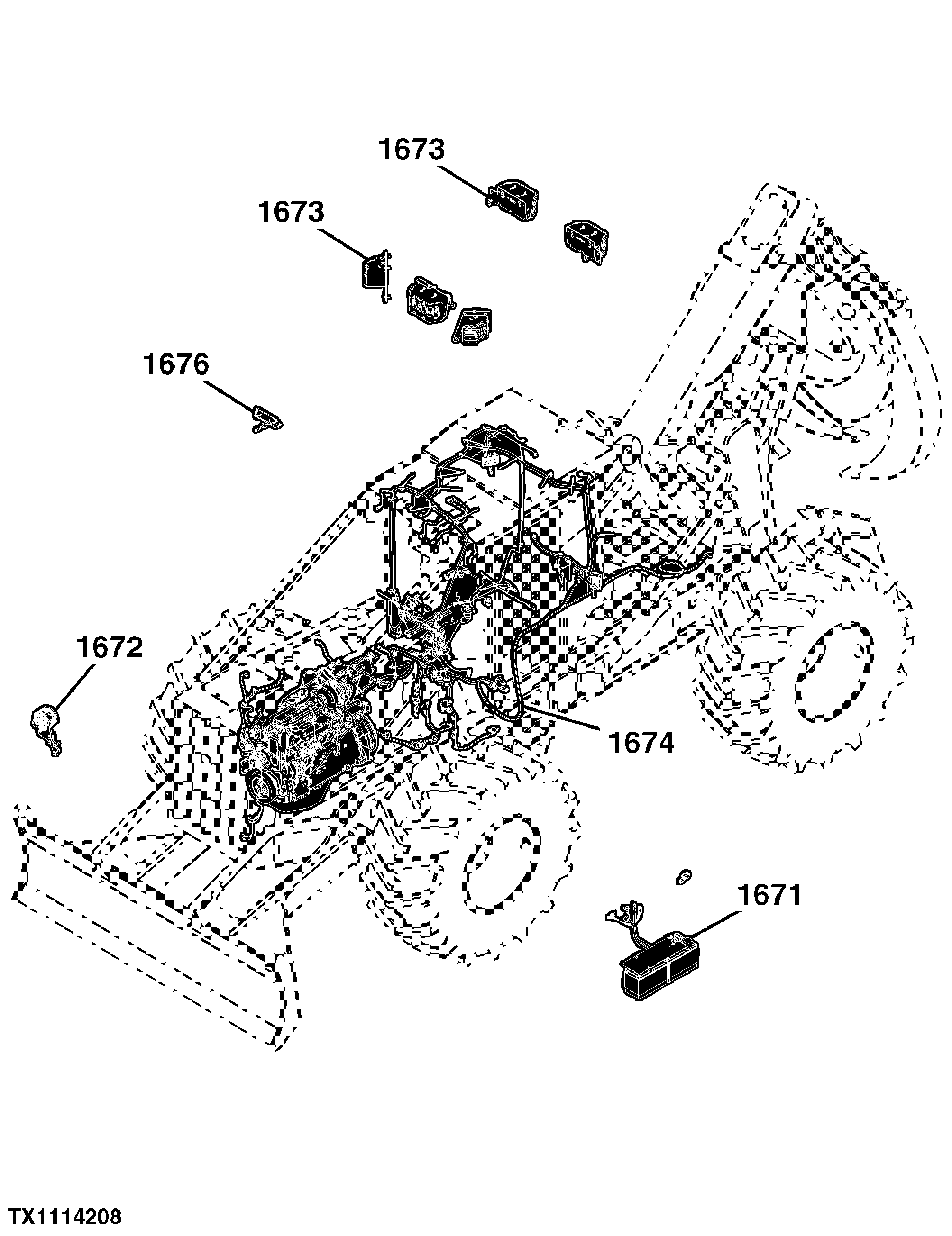

-	-	1	16 Vehicle Electrical Systems	-

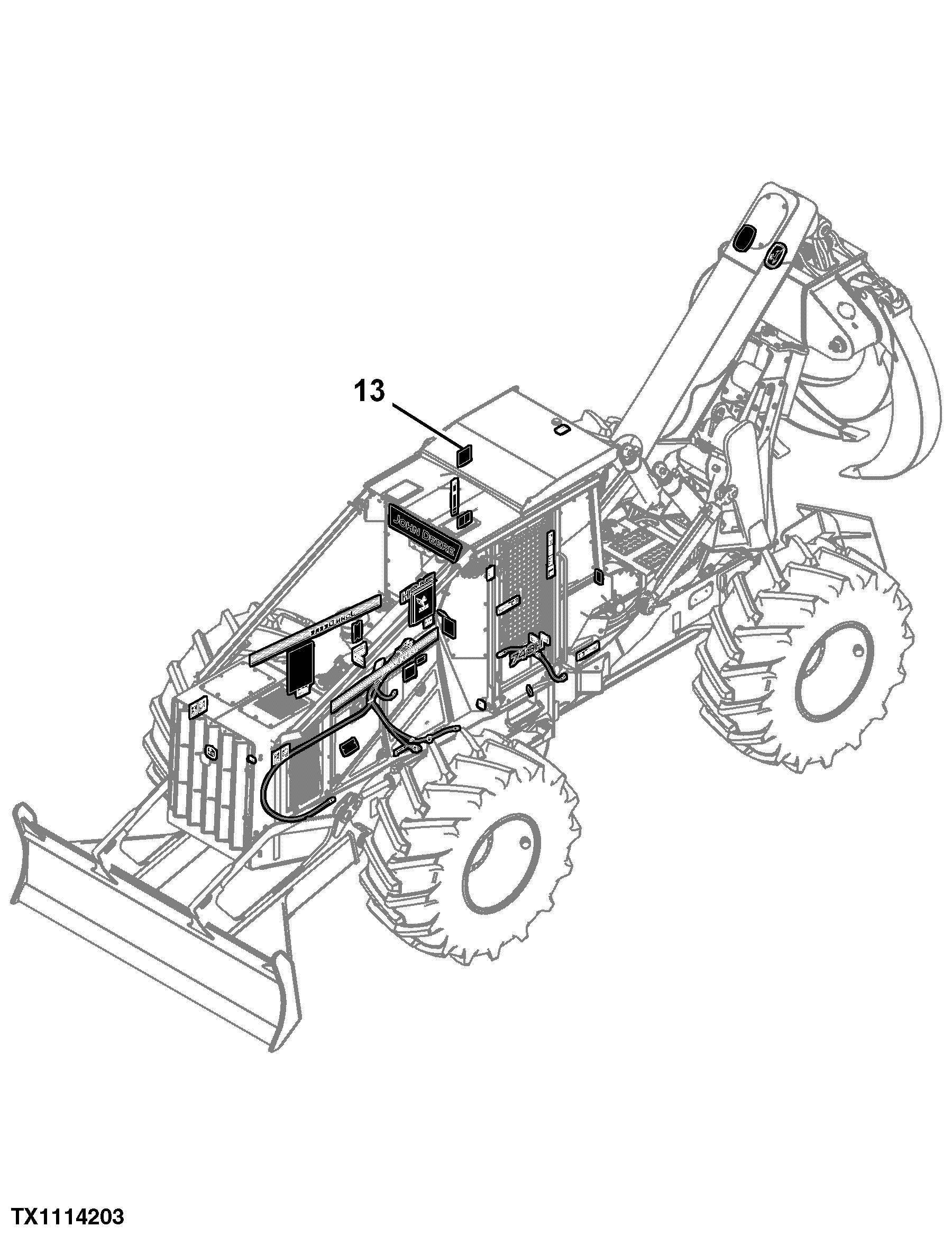

-	-	1	13 Miscellaneous Vehicle	-

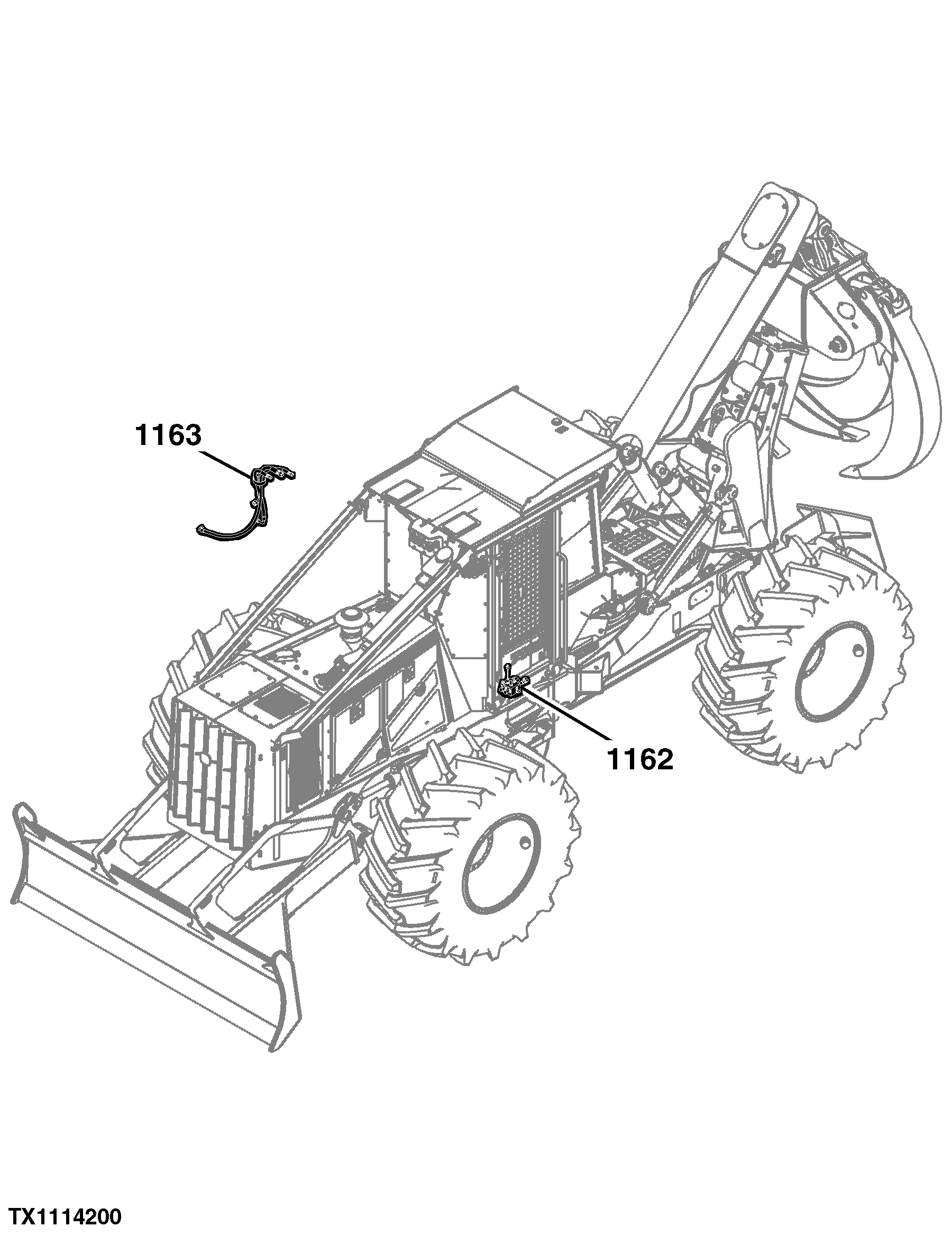

-	-	1	11 Parking Brakes	-

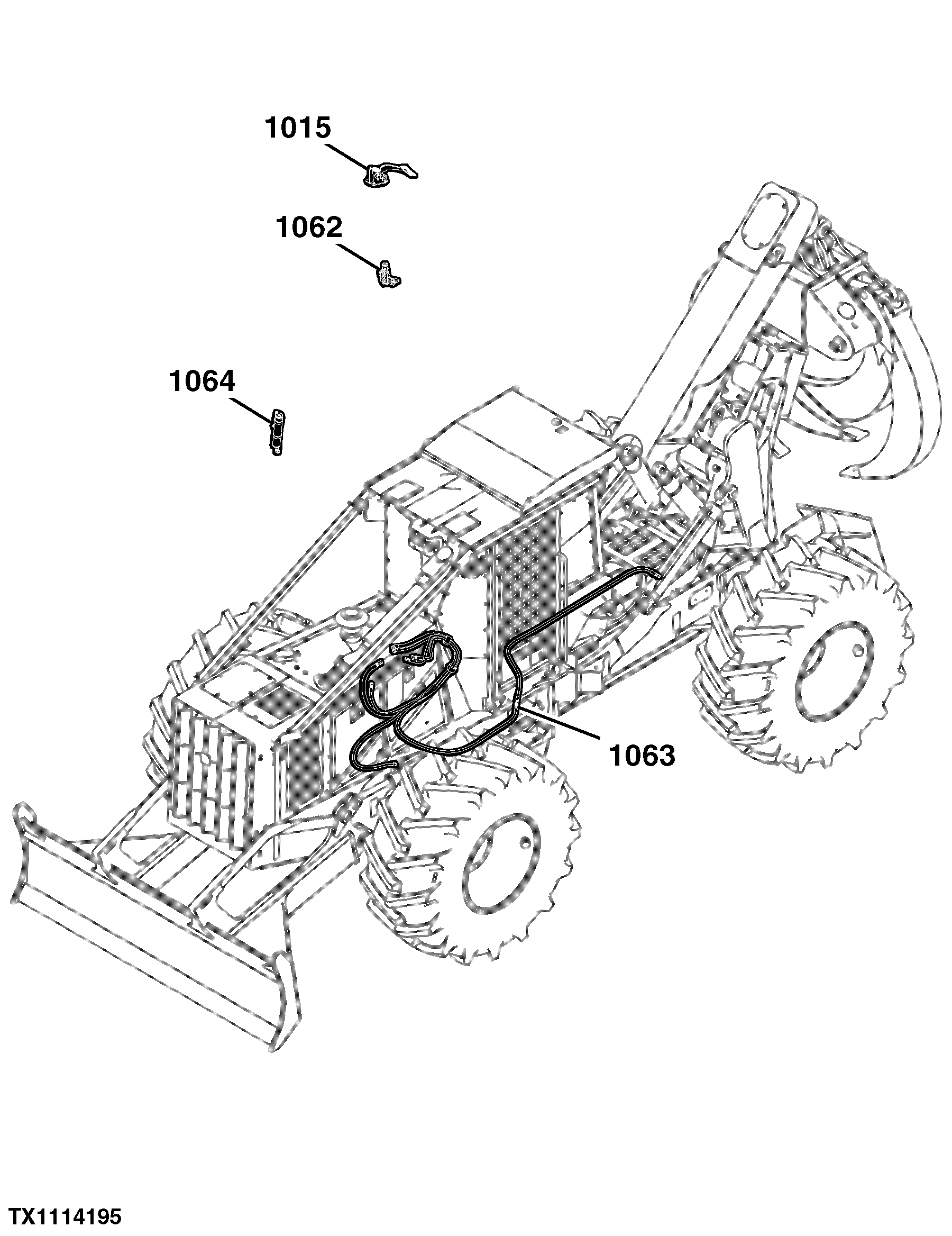

-	-	1	10 Service Brakes	-

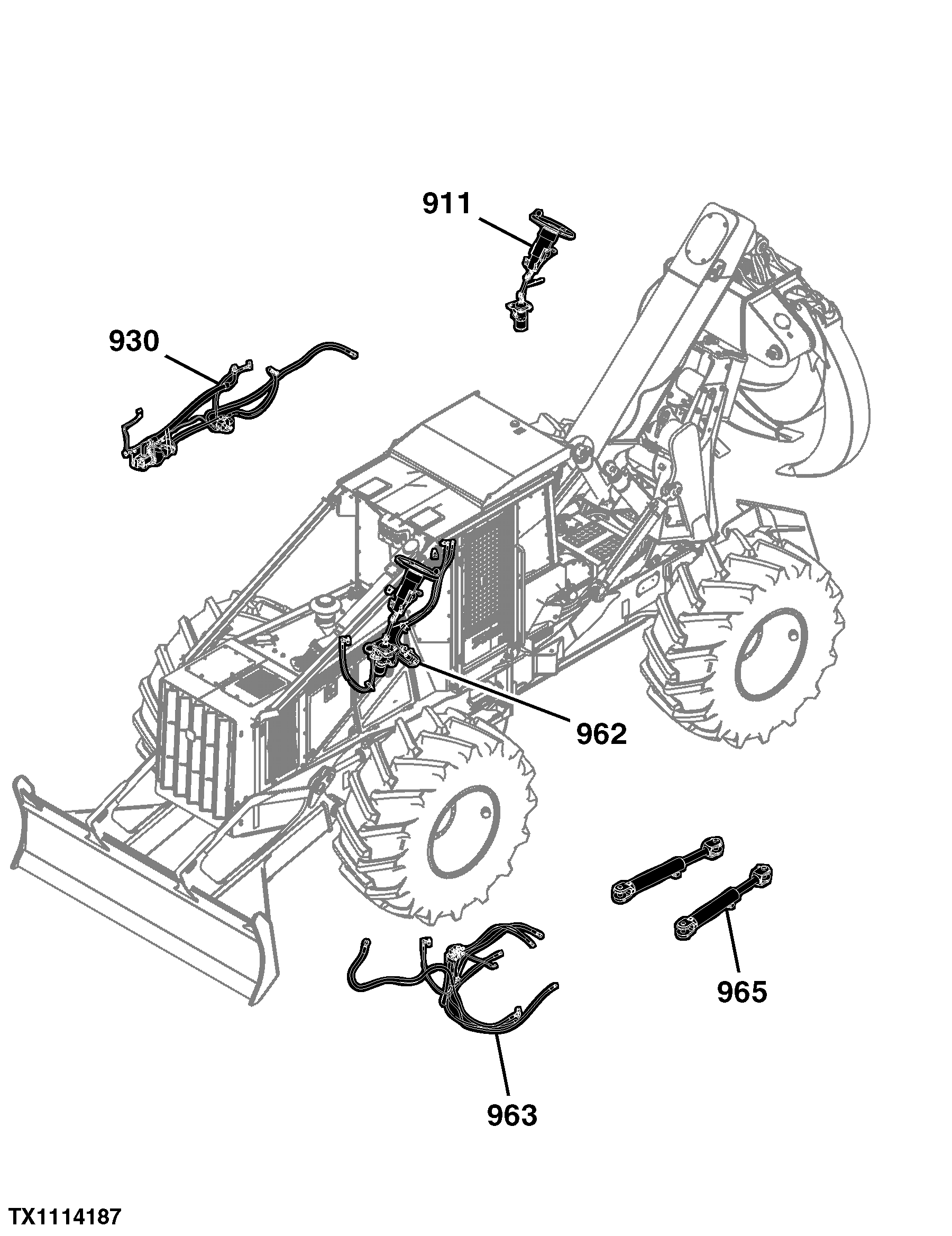

-	-	1	9 Steering System	-

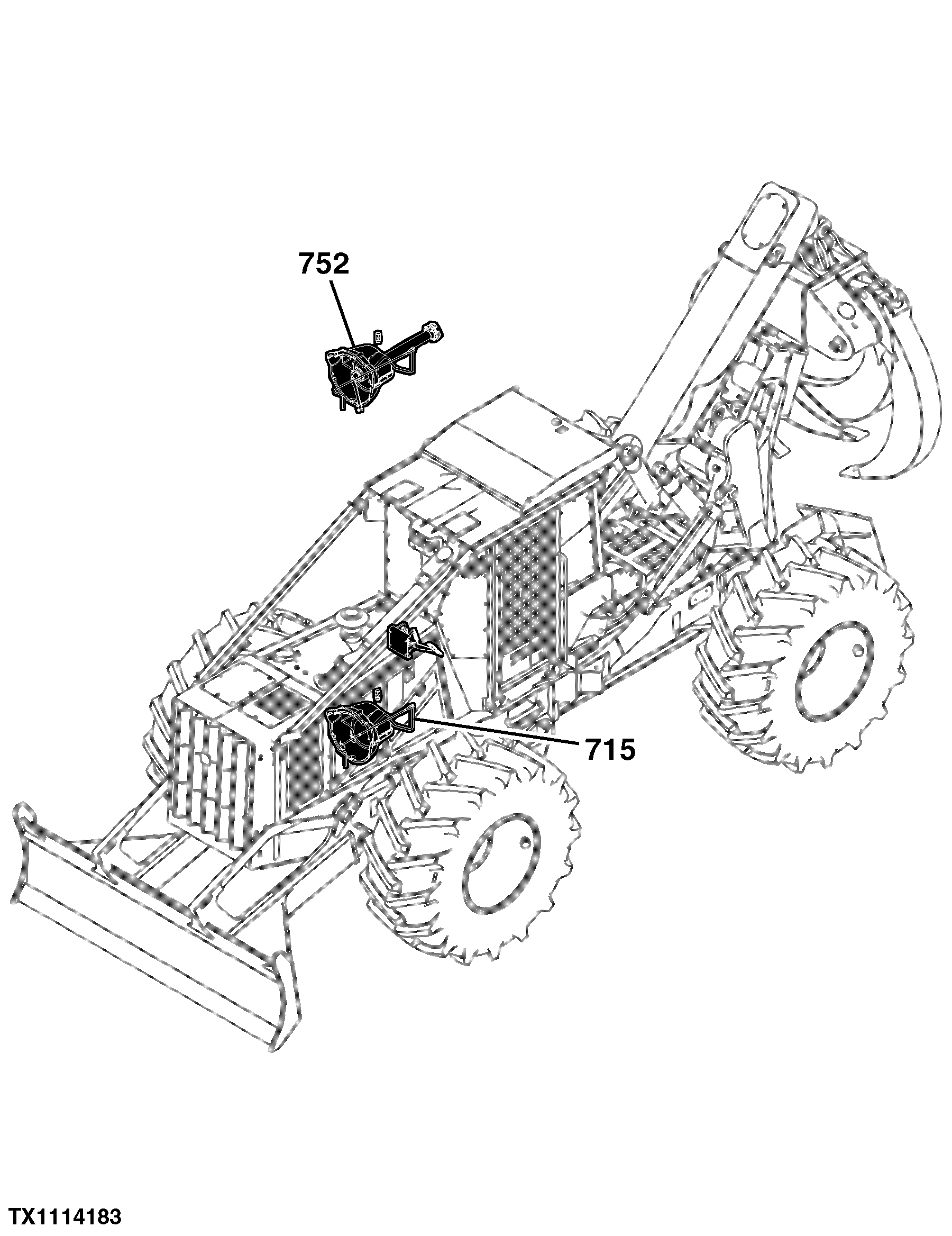

-	-	1	7 Traction (Engine) And Disconnect Clutch	-

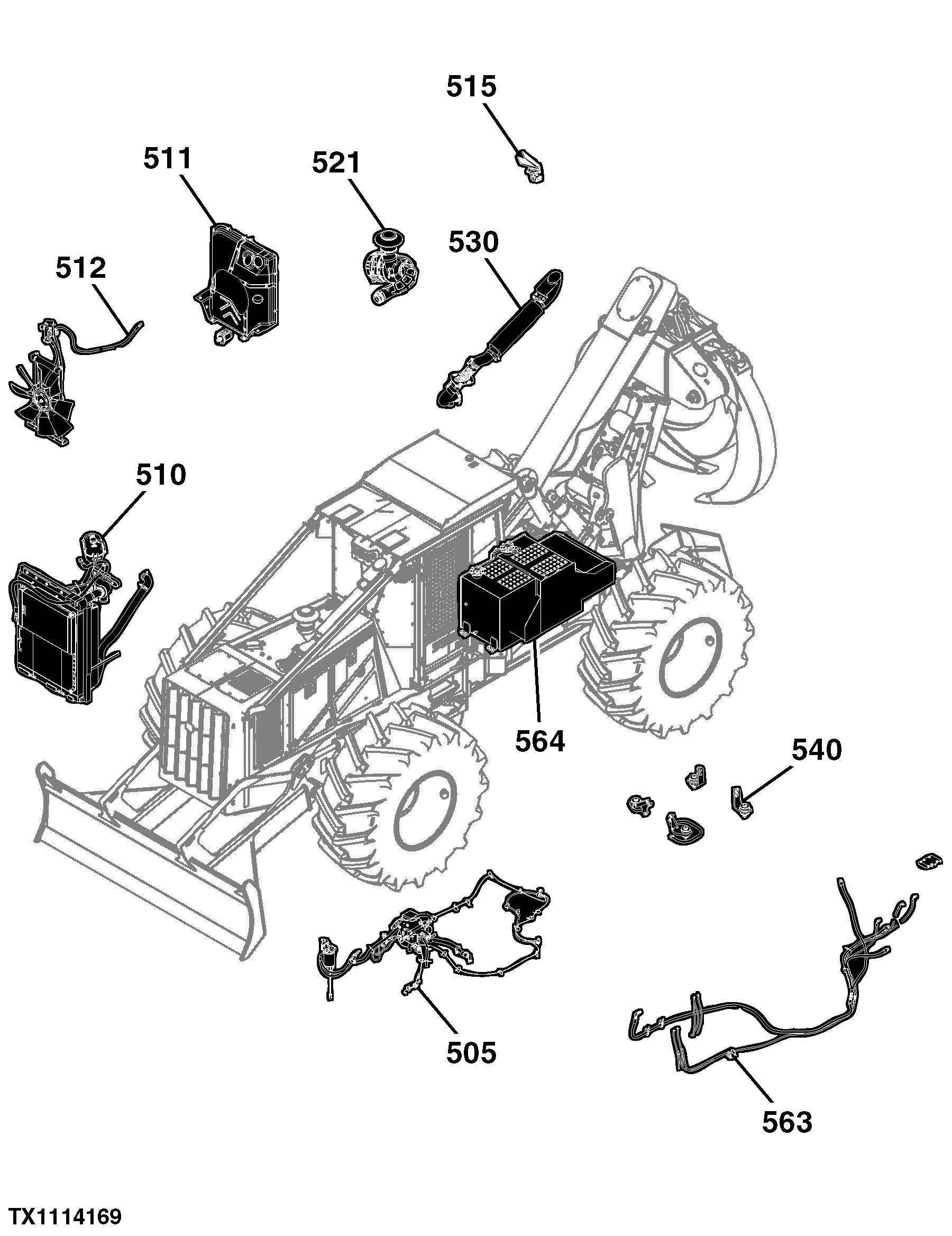

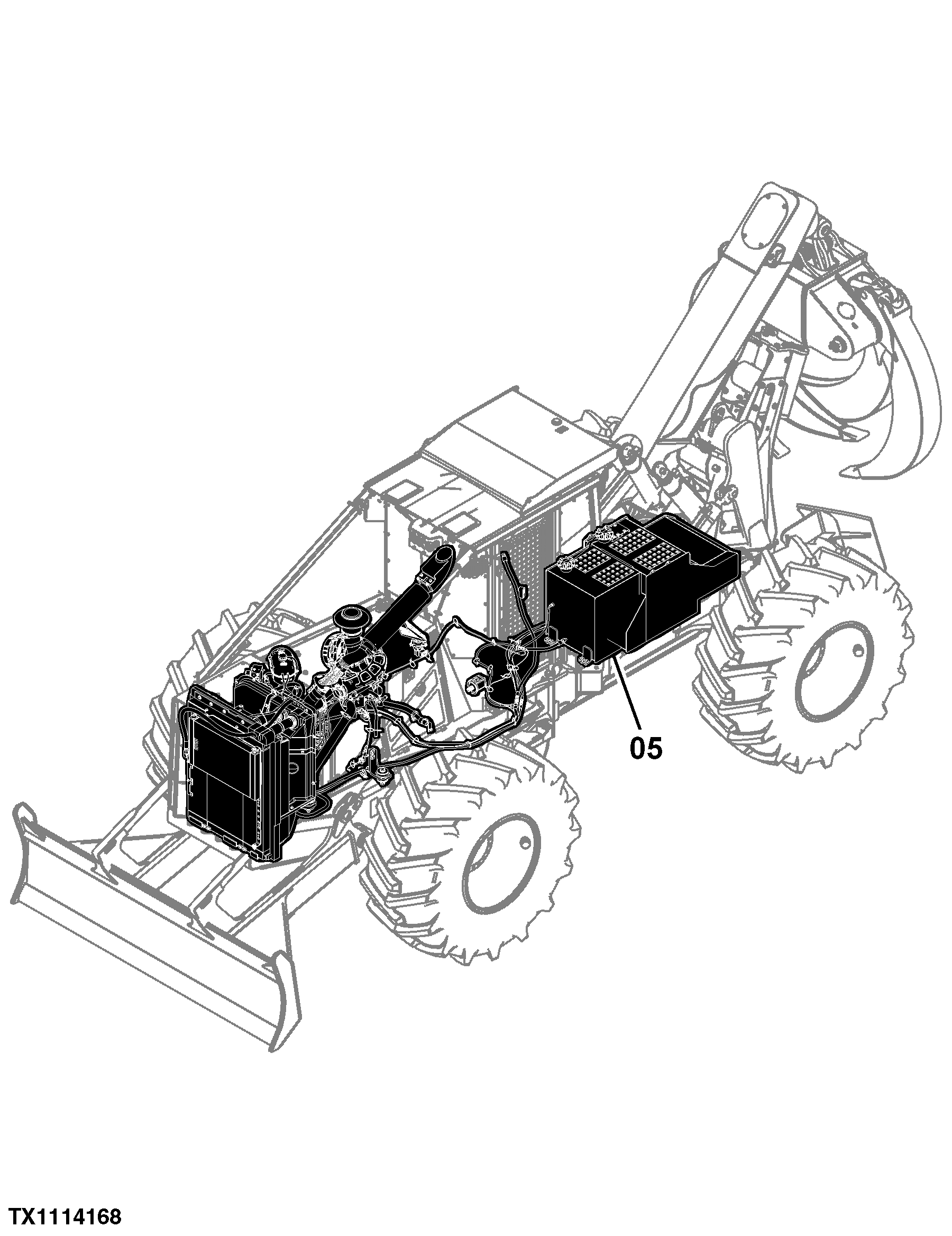

-	-	1	5 Engine Auxiliary System	-
-	-	1	04B Engine 6068HDW76-RE543100	-
-	-	1	04A Engine 6068HDW71-RE530865	-

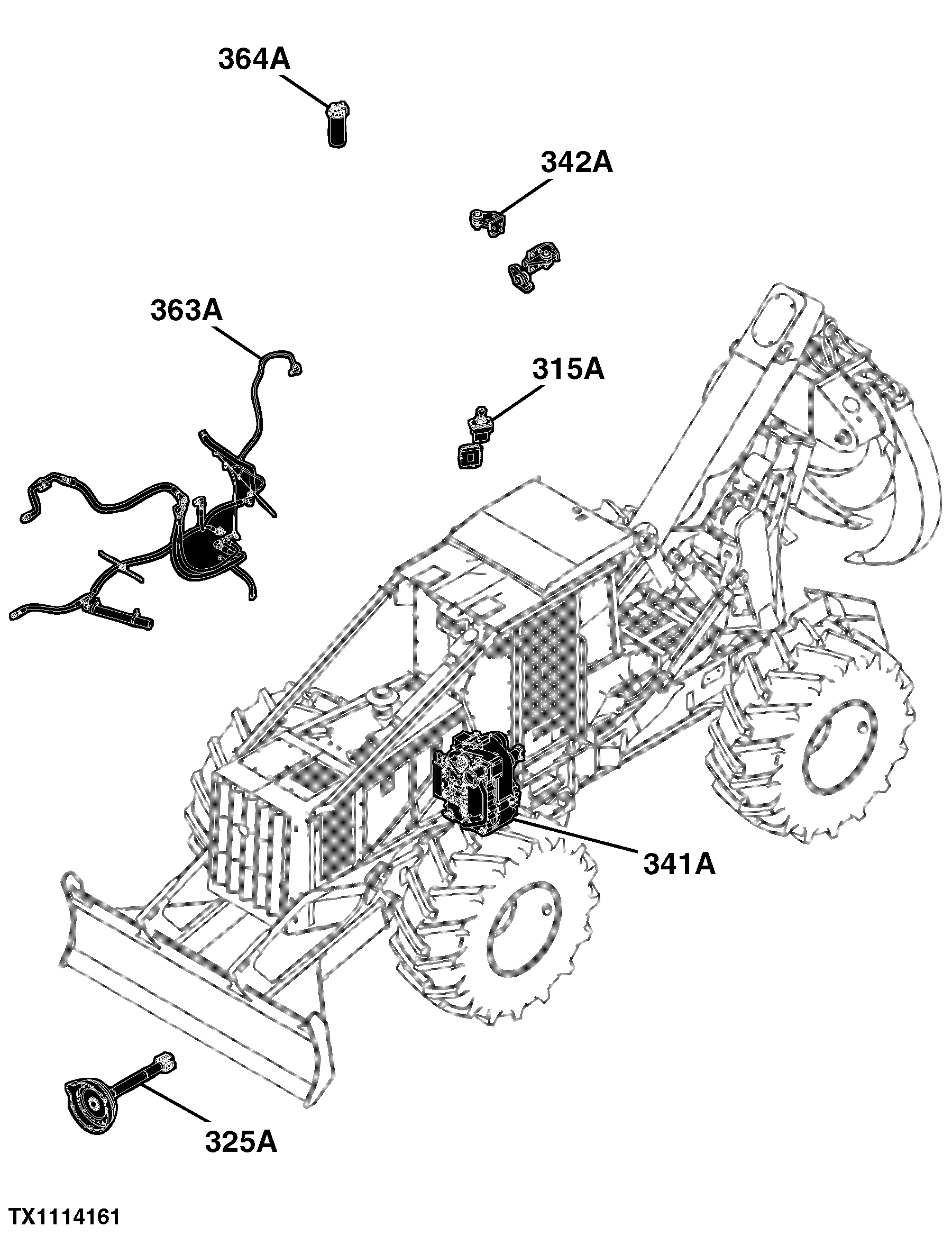

-	-	1	03A Transmission	-

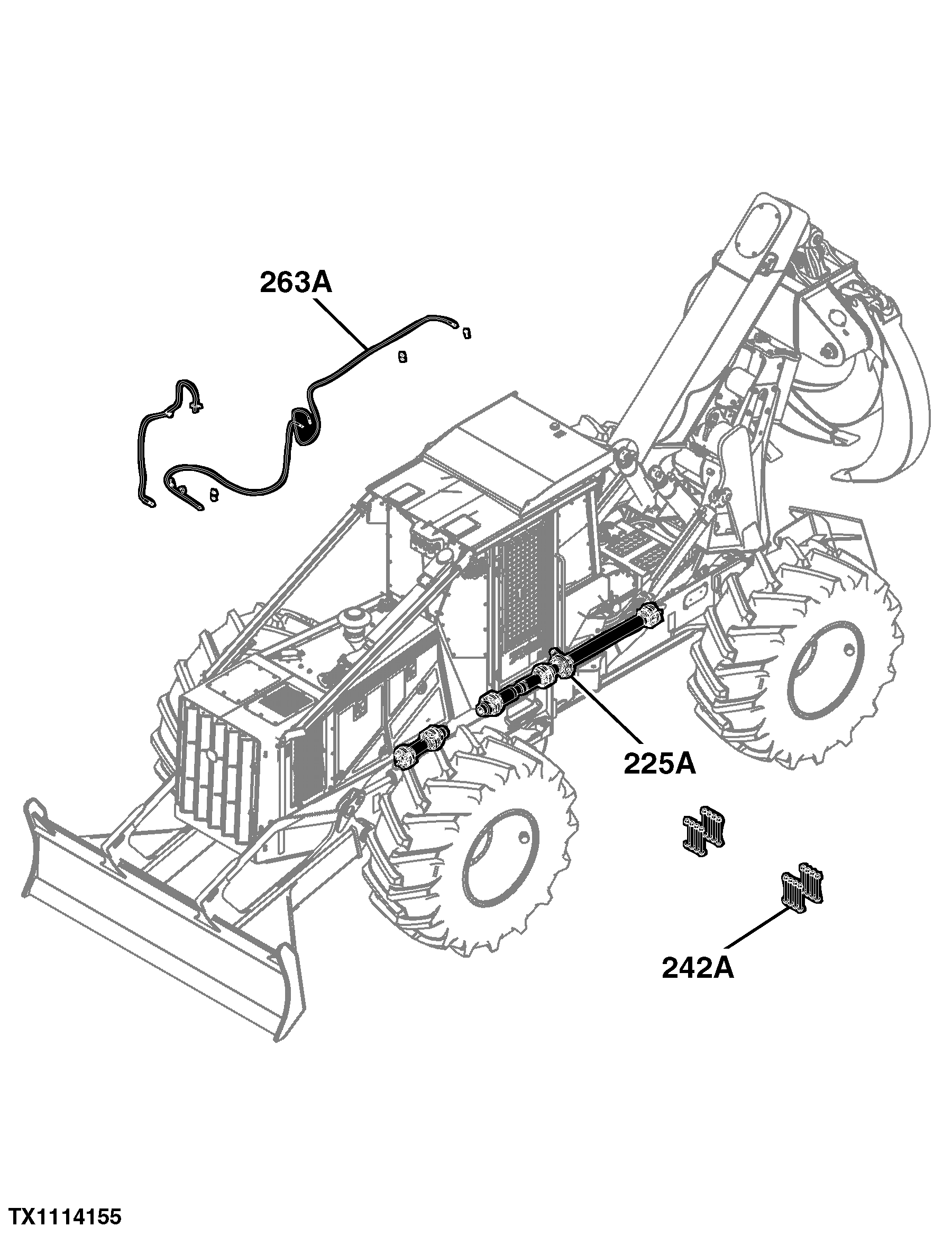

-	-	1	02A Axles, Differentials & Suspension Systems	-

748H Cable and Grapple Skidder (PIN: 1DW748HX_ _C630436 - C666892) (PIN: 1DW748HX_ _D630436 - D666892)
