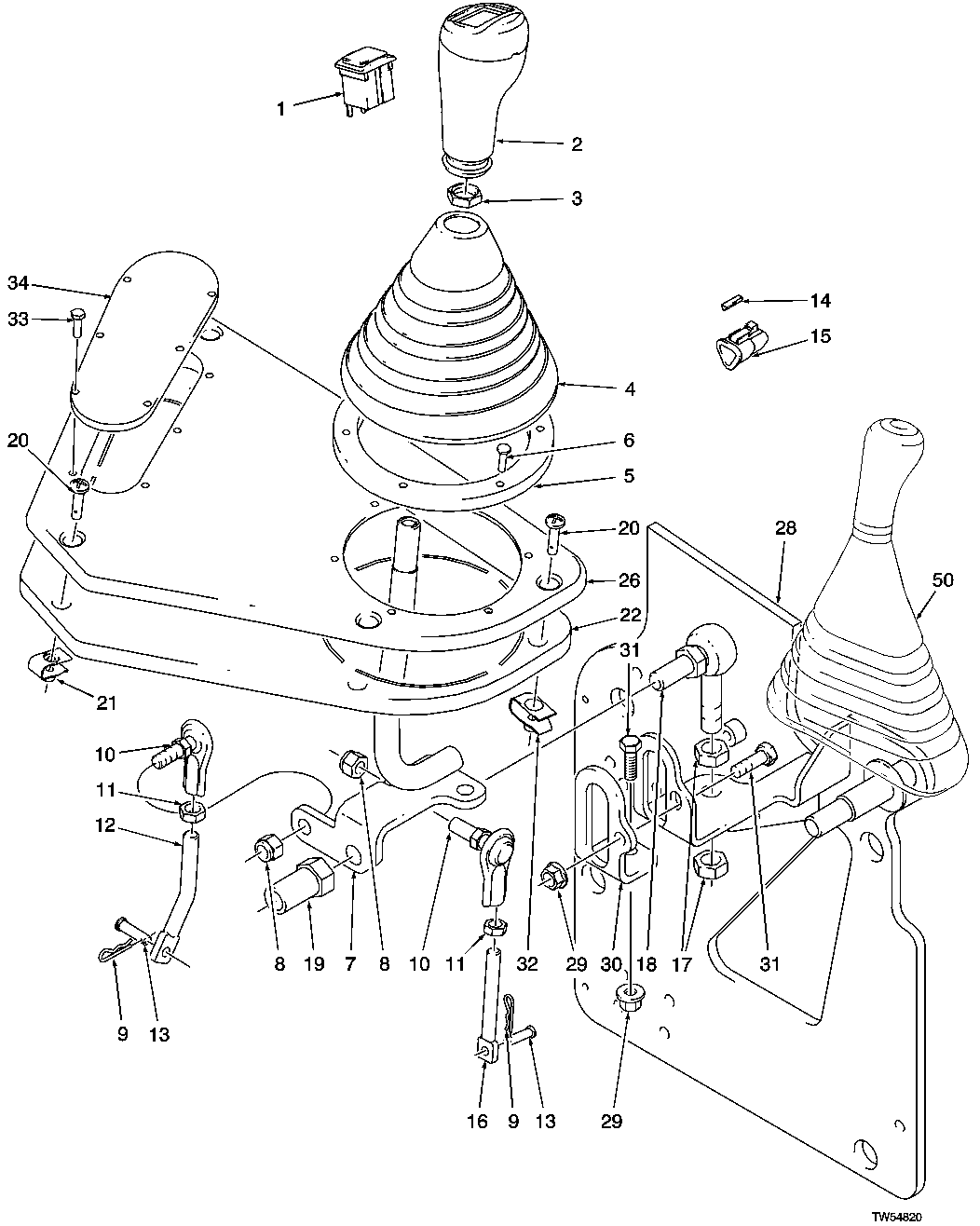

GRAPPLE CONTROL VALVE LEVERS & LINKAGE (SF, MANUAL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	See Index: Switch Grapple Rotate
2	AT186694	1	Knob	-
3	14M7488	1	Nut	M14
4	T183460	1	Boot	-
5	T183402	1	Ring	-
6	T183882	6	Clip	-
7	AT186692	1	Lever	-
8	M68954	2	Lock Nut	9.525 mm (3/8")
9	R46528	2	Spring Locking Pin	-
10	AT65619	2	Ball Joint	-
11	14H774	2	Nut	3/8"
12	T106130	1	Link	-
13	T19155	2	Pin Fastener	6.330 X 23.100 mm (0.249" X 0.909")
14	-	1	Part 14	SEE-INDEX-SWITCH GRAPPLE ROTATE
15	-	1	Part 15	(0.10), See Index: Switch Grapple Rotate
16	T105825	1	Eyebolt	-
17	14H856	2	Nut	1/2"
18	AT124107	1	Ball Joint	-
19	T145279	1	Spacer	-
20	T134895	4	Self-Locking Screw	M6 X 25, (SUB FOR 21M7310)
21	R134098	3	Nut	-
22	-	1	Part 22	(INCLUDED IN <service-part>AT190686</service-part>)
24	24M7296	8	Washer	10.500 X 30 X 2.500 mm
25	U42208	4	Isolator	-
26	AT190686	1	Cover	Console (INCLUDES SEAL)
26	-	1	Part 26	Around Edge of Console, (MAKE FROM T63019 , CUT TO LENGTH, 5 ft.)
27	19M8162	4	Screw	M10 X 40
28	-	1	Part 28	See Index: Lever, Blade
29	14M7298	2	Flange Nut	M8
30	T145222	1	Angle	Guide
31	19M7407	2	Cap Screw	M8 X 25
32	M84972	1	Nut	-
33	T183882	6	Clip	NO WINCH OPTION
34	T165952	1	Cover	NO WINCH OPTION
50	-	1	Part 35	SEE INDEX: LEVER, BLADE
