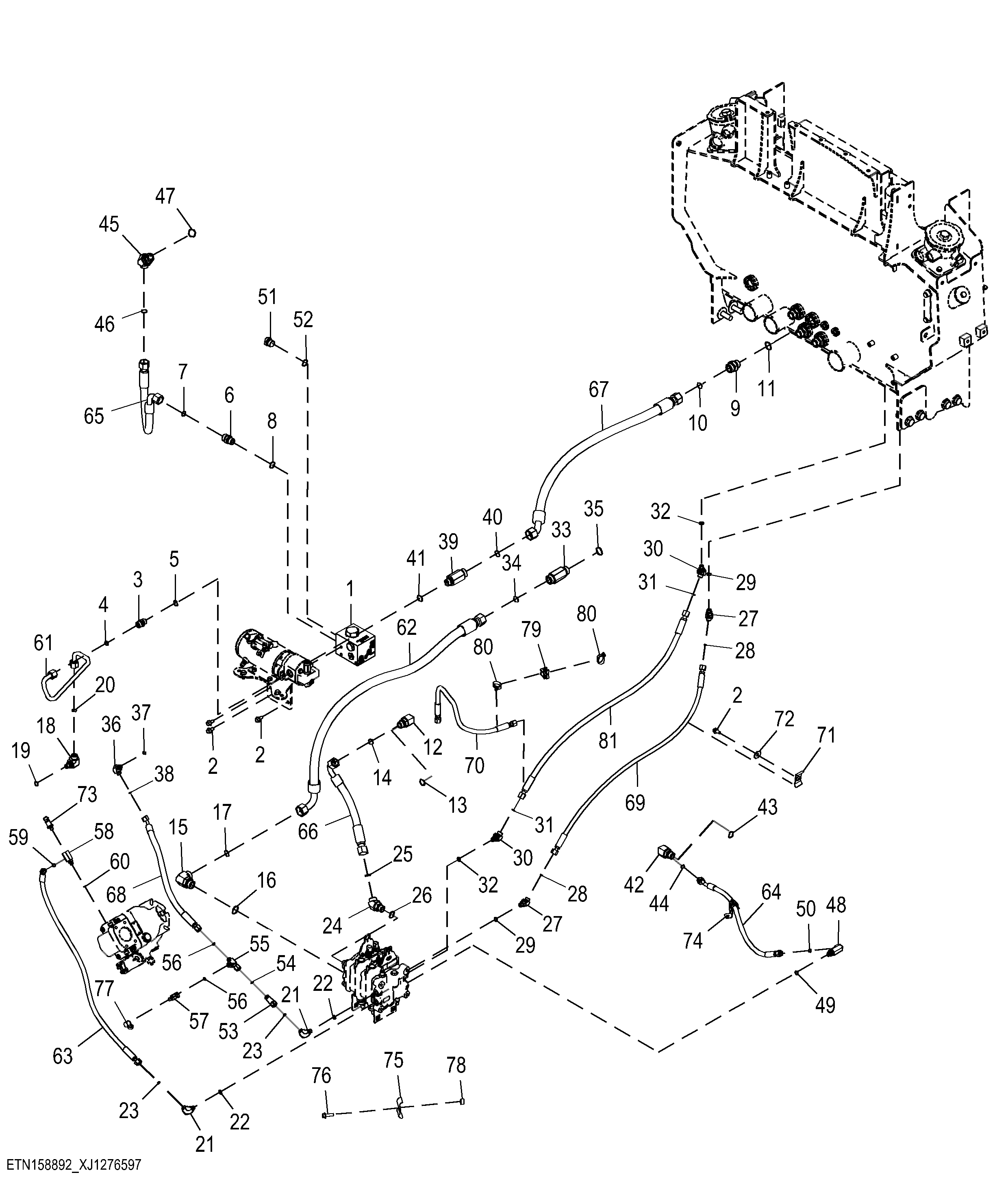

Secondary Steering System for Joystick Steering ( 2 of 2 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT486279	1	Manifold	Secondary Steering Logic Valve Components on Seperate Page
2	19M9844	4	Screw	M10 X 20
3	38H5004	1	Adapter Fitting	-
4	T77932	1	O-Ring	-
5	51M7045	1	O-Ring	19.300 X 2.200 mm
6	38H5005	1	Adapter Fitting	-
7	T77858	1	O-Ring	-
8	51M7047	1	O-Ring	23.600 X 2.900 mm
9	38H5006	1	Adapter Fitting	-
10	T76938	1	O-Ring	-
11	51M7048	1	O-Ring	29.600 X 2.900 mm
12	38H5019	1	Elbow Fitting	-
13	51M7047	1	O-Ring	23.600 X 2.900 mm
14	T77858	1	O-Ring	-
15	38H5020	1	Elbow Fitting	-
16	51M7048	1	O-Ring	29.600 X 2.900 mm
17	T76938	1	O-Ring	-
18	38H5024	1	Elbow Fitting	-
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	T77932	1	O-Ring	-
21	38H5035	2	Elbow Fitting	-
22	51M7042	2	O-Ring	13.300 X 2.200 mm
23	T77613	2	O-Ring	-
24	38H5129	1	Elbow Fitting	-
25	T77858	1	O-Ring	-
26	51M7047	1	O-Ring	23.600 X 2.900 mm
27	38H5154	2	Elbow Fitting	-
28	T77613	2	O-Ring	-
29	51M7042	2	O-Ring	13.300 X 2.200 mm
30	38H5467	2	Adapter Fitting	-
31	T77857	2	O-Ring	-
32	51M7042	2	O-Ring	13.300 X 2.200 mm
33	38H5203	1	Adapter Fitting	-
34	T76938	1	O-Ring	-
35	51M7048	1	O-Ring	29.600 X 2.900 mm
36	38H5022	1	Elbow Fitting	-
37	51M7047	1	O-Ring	23.600 X 2.900 mm
38	T77932	1	O-Ring	-
39	38H5204	1	Adapter Fitting	-
40	T76938	1	O-Ring	-
41	51M7047	1	O-Ring	23.600 X 2.900 mm
42	38H5245	1	Elbow Fitting	-
43	51M7047	1	O-Ring	23.600 X 2.900 mm
44	T77857	1	O-Ring	-
45	38H5443	1	Adapter Fitting	-
46	T77858	1	O-Ring	-
47	51M7048	1	O-Ring	29.600 X 2.900 mm
48	38H5469	1	Adapter Fitting	-
49	51M7042	1	O-Ring	13.300 X 2.200 mm
50	T77613	1	O-Ring	-
51	64M1008	1	Drain Plug	-
52	51M7047	1	O-Ring	23.600 X 2.900 mm
53	AT505282	1	Check Valve	Orifice Check Valve
54	T77613	1	O-Ring	-
55	38H1030	1	Tee Fitting	-
56	T77613	2	O-Ring	-
57	RE60701	1	Diagnostic Coupling	-
58	T406063	1	Tee Fitting	-
59	T77613	1	O-Ring	-
60	51M7040	1	O-Ring	9.300 X 2.200 mm
61	AT475446	1	Oil Line	-
62	AT471298	1	Hydraulic Hose	-
63	AT471307	1	Hydraulic Hose	-
64	AT471308	1	Hydraulic Hose	-
65	AT471876	1	Hydraulic Hose	-
66	AT471970	1	Hydraulic Hose	-
67	AT472040	1	Hydraulic Hose	-
68	AT488536	1	Hydraulic Hose	-
69	AT497641	1	Hydraulic Hose	-
70	AT497995	1	Hydraulic Hose	-
71	T399012	1	Plate	-
72	24M7560	1	Washer	11 X 34 X 3 mm
73	AT511599	1	Pressure Sensor	SUB FOR AT456465
74	T404448	1	Clamp	-
75	U46753	1	Hose Clamp	-
76	19M9986	1	Screw	M10 X 35
77	R77175	1	Cover	-
78	T230216	1	Spacer	-
79	AN209168	1	Swivel	-
80	H224073	2	Tie Band	-
81	AT507264	1	Hydraulic Hose	-

Secondary Steering System for Joystick Steering ( 2 of 2 )

Нет текстового описания
