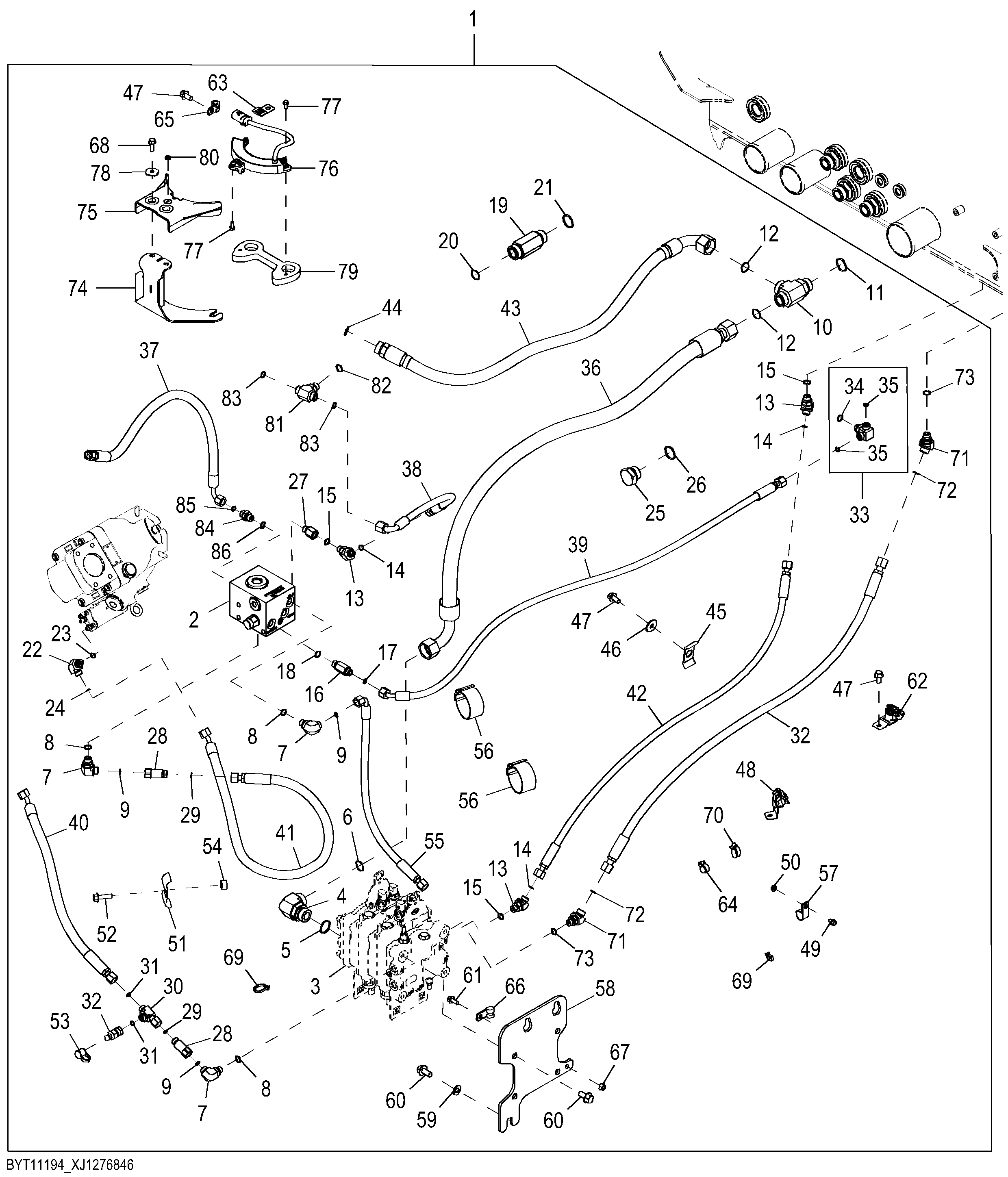

Orbitrol to Joystick Hydraulics Kit (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11194	1	Mounting Parts	WHOLE GOODS, ALSO ORDER BYT11191,STEERING WHEEL ONLY TO JOYSTICK ONLY, OR BYT11192, STEERING WHEEL ONLY TO STEERING WHEEL AND JOYSTICK, OR, BYT11193 STEERING WHEEL WITH SECONDARY STEERING TO STEERING JOYSTICK
2	AT486278	1	Manifold	Steering Logic Valve Components on Seperate Page
3	AT503011	1	Elec-Hyd Proportional Valve	Electro-Hydraulic Proportional Valve
4	38H5020	1	Elbow Fitting	-
5	51M7048	1	O-Ring	29.600 X 2.900 mm
6	T76938	1	O-Ring	-
7	38H5035	1	Elbow Fitting	-
8	51M7042	1	O-Ring	13.300 X 2.200 mm
9	T77613	1	O-Ring	-
10	38H5110	1	Tee Fitting	-
11	51M7048	1	O-Ring	29.600 X 2.900 mm
12	T76938	2	O-Ring	-
13	38H5154	1	Elbow Fitting	-
14	T77613	1	O-Ring	-
15	51M7042	1	O-Ring	13.300 X 2.200 mm
16	38H5178	1	Adapter Fitting	-
17	T77613	1	O-Ring	-
18	51M7042	1	O-Ring	13.300 X 2.200 mm
19	38H5203	1	Adapter Fitting	-
20	T76938	1	O-Ring	-
21	51M7048	1	O-Ring	29.600 X 2.900 mm
22	38H5022	1	Elbow Fitting	-
23	51M7040	1	O-Ring	9.300 X 2.200 mm
24	T77613	1	O-Ring	-
25	64M1010	1	Drain Plug	-
26	51M7048	1	O-Ring	29.600 X 2.900 mm
27	L115237	1	Adapter Fitting	-
28	AT505282	2	Check Valve	-
29	T77613	1	O-Ring	-
30	38H1030	1	Tee Fitting	-
31	T77613	2	O-Ring	-
32	RE60701	1	Diagnostic Coupling	-
33	AT486311	1	Fitting	-
34	51M7042	1	O-Ring	13.300 X 2.200 mm
35	T77613	2	O-Ring	-
36	AT471298	1	Hydraulic Hose	-
37	AT487821	1	Hydraulic Hose	To Flow Control Hydraulic Valve
38	AT486216	1	Hydraulic Hose	To Manifold
39	AT486217	1	Hydraulic Hose	-
40	AT488536	1	Hydraulic Hose	To Electro-Hydraulic Proportional Valve
41	AT488580	1	Hydraulic Hose	To Hydraulic Pump
42	AT497641	1	Hydraulic Hose	-
43	AT498897	1	Hydraulic Hose	To Return Manifold, INCLUDES T77858
44	T77858	1	O-Ring	-
45	T399012	1	Plate	-
46	24M7560	1	Washer	11 X 34 X 3 mm
47	19M9844	12	Screw	M10 X 20
48	T404448	3	Clamp	-
49	19M9830	3	Screw	M6 X 12
50	14M7744	5	Flange Nut	M6
51	U46753	1	Hose Clamp	-
52	19M9986	1	Screw	M10 X 35
53	R77175	1	Cover	-
54	T230216	1	Spacer	-
55	AT486109	1	Hydraulic Hose	-
56	T238029	3	Adjusting Strap	-
57	T38377	1	Clamp	-
58	T418236	1	Plate	Steering Valve Plate
59	24M7544	3	Washer	13 X 25 X 3 mm
60	19M9873	9	Screw	M12 X 25
61	19M9836	7	Screw	M8 X 20
62	T389883	2	Clamp	-
63	57M10650	3	Clip Kit	-
64	H224073	7	Tie Band	-
65	T74412	1	Clamp	-
66	R530860	1	Clamp	-
67	14M7649	1	Flange Nut	M8
68	19M9837	4	Screw	M8 X 25
69	R44302	6	Tie Band	-
70	H224073	3	Tie Band	-
71	38H5467	1	Adapter Fitting	-
72	T77857	1	O-Ring	-
73	51M7042	1	O-Ring	13.300 X 2.200 mm
74	AT489724	1	Bracket	-
75	T407840	1	Guide	-
76	AT406571	1	Sensor	-
77	T23876	3	Screw	-
78	24H1657	2	Washer	21/64" X 1-1/4" X 7/64"
79	T407839	1	Bracket	-
80	14H850	1	NUT	1/4"
81	38H5111	1	Tee Fitting	-
82	51M7043	1	O-Ring	15.300 X 2.200 mm
83	T77857	2	O-Ring	-
84	38H5037	1	Adapter Fitting	-
85	T77613	1	O-Ring	-
86	51M7042	1	O-Ring	13.300 X 2.200 mm

Orbitrol to Joystick Hydraulics Kit (2 of 2)
