Joystick to Orbitrol Hydraulics Kit (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11190	1	Mounting Parts	WHOLE GOODS
2	AT337356	1	Flow Control Hyd. Valve	Steering Valve, INCLUDES R28782, AT223440, C15104, AN122518 AND U42111
2	U42111	1	O-Ring	-
2	R28782	1	O-Ring	-
2	AN122518	1	Fitting Plug	INCLUDES R28782
2	AT223440	1	Seal Kit	-
2	R28782	1	O-Ring	-
2	C15104	1	Seal	-
3	38H3163	1	Adapter Fitting	-
4	T77858	1	O-Ring	-
5	U12547	1	O-Ring	-
6	AT486118	1	Oil Line	-
7	AT495705	1	Plate	Clamp Support
8	T402683	1	Block Clamp	-
9	T402685	1	Plate	Clamp Support Plate
10	14M7649	2	Flange Nut	M8
11	AT116162	2	Isolator	-
12	24H1307	2	Washer	13/32" X 1" X 1/16"
13	19M9837	1	Screw	M8 X 25
14	38H3434	1	Adapter Fitting	-
15	T77613	2	O-Ring	-
16	R28782	1	O-Ring	-
17	RE60701	1	Diagnostic Coupling	-
18	R77175	1	Cover	Dust
19	38H5005	2	Adapter Fitting	-
20	T77858	2	O-Ring	-
21	51M7047	2	O-Ring	23.600 X 2.900 mm
22	38H5035	2	Elbow Fitting	-
23	51M7042	2	O-Ring	13.300 X 2.200 mm
24	T77613	2	O-Ring	-
25	38H5037	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	51M7042	1	O-Ring	13.300 X 2.200 mm
28	38H5225	1	Elbow Fitting	-
29	T77858	2	O-Ring	-
30	38H5264	1	Adapter Fitting	-
31	51M7048	1	O-Ring	29.600 X 2.900 mm
32	T77858	1	O-Ring	-
33	AT511599	1	Pressure Sensor	SUB FOR AT456465
34	AT486278	1	Manifold	Steering Logic Valve Components on Seperate Page
35	AT471876	1	Hydraulic Hose	-
36	AT485797	1	Hydraulic Hose	To Flow Control Hydraulic Valve, INCLUDES T77858
37	T77858	1	O-Ring	-
38	AT486109	1	Hydraulic Hose	To Electro-Hydraulic Proportional Valve
39	AT487821	1	Hydraulic Hose	-
40	AT488580	1	Hydraulic Hose	To Hydraulic Pump
41	T38377	1	Clamp	-
42	19M9404	1	Screw	M6 X 20
43	14M7744	1	Flange Nut	M6
44	AT505282	1	Check Valve	-
45	T77613	1	O-Ring	-
46	AT498452	1	Hydraulic Hose	To Hydraulic Pump, ALSO ORDER 38H5225 AND (2) T77858
46	38H5225	1	Elbow Fitting	-
46	T77858	2	O-Ring	-
47	AT494959	1	Bracket	Secondary Steering Valve Bracket
48	19M9845	3	Screw	M10 X 25
49	19M9844	3	Screw	M10 X 20
50	38H5019	1	Elbow Fitting	-
51	51M7047	1	O-Ring	23.600 X 2.900 mm
52	T77858	1	O-Ring	-
53	AT471970	1	Hydraulic Hose	Joystick Pressure

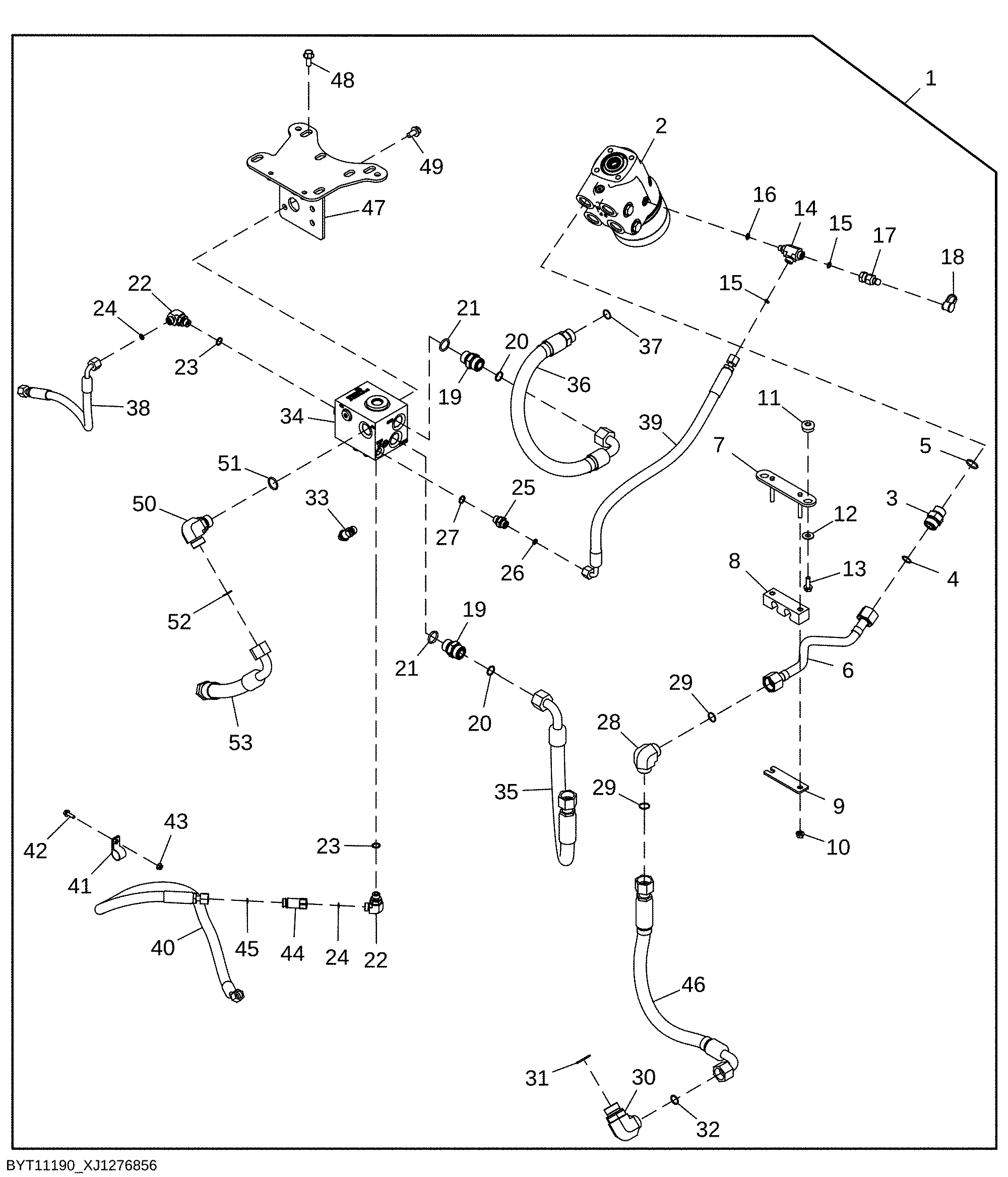

Joystick to Orbitrol Hydraulics Kit (2 of 2)
