Открытый узел

Fourth Function Field Kit

Fourth Function Field Kit

Fourth Function Field Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

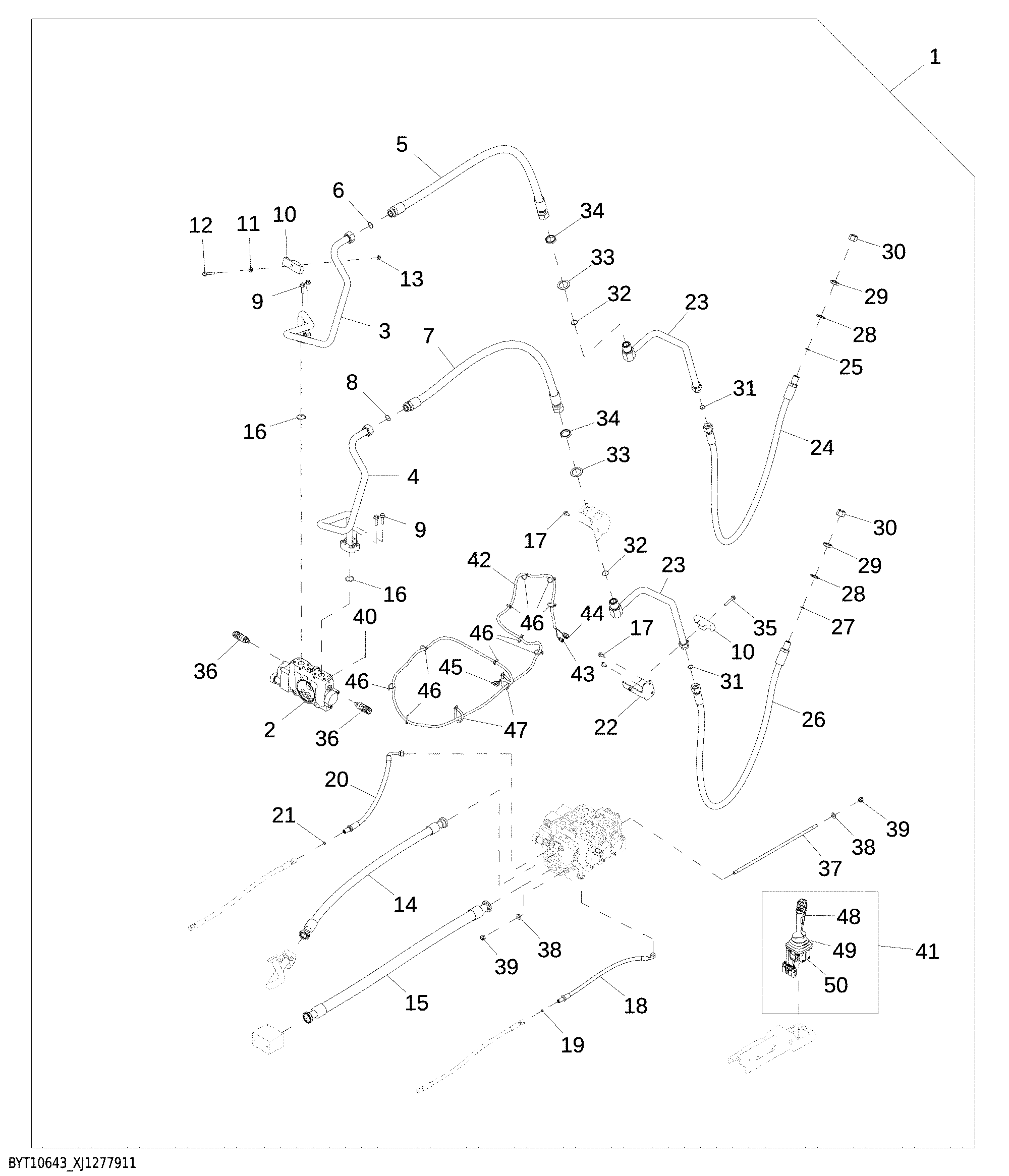

Fourth Function Field Kit

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10643	1	Mounting Parts	WHOLE GOODS
2	AT512231	1	Control Valve	Auxiliary Section Components on Seperate Page, SUB FOR AT486426
3	AT484802	1	Oil Line	-
4	AT484804	1	Oil Line	-
5	AT469562	1	Hydraulic Hose	From Control Valve Auxiliary Section, INCLUDES T78612
6	T78612	1	O-Ring	-
7	AT469562	1	Hydraulic Hose	From Control Valve Auxiliary Section, INCLUDES T78612
8	T78612	1	O-Ring	-
9	19M7813	8	Screw	M12 X 45
10	T52979	2	Clamp	-
11	24M7614	1	Washer	13 X 24 X 2.500 mm
12	19M8114	1	Screw	M10 X 70
13	14M7334	1	Flange Nut	M10
14	AT484787	1	Hydraulic Hose	-
15	AT484794	1	Hydraulic Hose	From Main Control Valve, INCLUDES T78393
16	T78393	2	O-Ring	-
17	19M7784	4	Screw	M10 X 20
18	AT485872	1	Hydraulic Hose	To Axial Piston Pump, INCLUDES T77613
19	T77613	1	O-Ring	-
20	AT504604	1	Hydraulic Hose	From Main Control Valve, INCLUDES T77857
21	T77857	1	O-Ring	-
22	AT485812	1	Bracket	-
23	AT486495	2	Oil Line	-
24	AT485616	1	Hydraulic Hose	From Control Valve Auxiliary Section, INCLUDES T77858
25	T77858	1	O-Ring	-
26	AT485616	1	Hydraulic Hose	From Control Valve Auxiliary Section, INCLUDES T77858
27	T77858	1	O-Ring	-
28	24H1263	2	Washer	1-1/4" X 2" X 0.060"
29	38H5094	2	Nut	1-3/16"
30	38H5456	2	Fitting	-
31	T76938	2	O-Ring	-
32	T78612	2	O-Ring	-
33	24H1566	2	Washer	1-49/64" X 2-1/2" X 0.075"
34	38H5096	2	Nut	1-11/16"
35	19M7807	1	Screw	M10 X 60
36	AT486425	2	Pressure Relief Valve	Work Port Relief Valve
37	T403468	4	Bolt	-
38	T403949	8	Washer	-
39	T403947	8	Nut	-
40	R95493	1	Disk	-
41	AT491321	1	Electrohydraulic Controller	Electro-Hydraulic Base, Grip Fourth Function No FNR
42	AT529297	1	Wiring Harness	INCLUDES 57M8021, (4) R78065 AND 57M9726
43	57M8021	1	Electrical Connector Assy	Auxillary Solenoid A
43	57M8022	1	Elec.Connect Locking Device	-
43	57M11230	1	Elec. Connector Accessory	-
44	57M9726	1	Elec. Connector Housing	Auxillary Solenoid B
44	57M11333	1	Elec. Connector Accessory	-
45	R78065	4	Elec. Connector Terminal	Pin, X2
46	R44302	10	Tie Band	-
47	H224073	2	Tie Band	-
48	AT491322	1	Multi-Functional Controller	-
49	T379060	1	Boot	Dual Axis
50	AT467418	1	Electrohydraulic Controller	RH
