EH Joystick Steering Harness and Connectors

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT498273	1	Wiring Harness	-
2	57M10605	1	Elec. Connector Housing	ACS Controller1 Connector J1, A55-01
2	57M10334	4	Elec. Connector Cavity Plug	-
2	57M10333	19	Elec. Connector Cavity Plug	-
2	57M10330	5	Elec. Connector Terminal	-
3	57M10604	4	Elec. Connector Housing	-
4	57M10614	1	Elec. Connector Housing	ACS Controller1 Connector J2, A55-02
4	57M10330	19	Elec. Connector Terminal	-
4	57M10333	21	Elec. Connector Cavity Plug	-
4	57M10617	8	Elec. Connector Housing	-
5	57M10613	2	Elec. Connector Housing	-
6	57M10611	1	Elec. Connector Housing	ACS Controller1 Connector J3, A55-03
6	57M10330	15	Elec. Connector Terminal	-
6	57M10333	9	Elec. Connector Cavity Plug	-
6	57M10331	3	Elec. Connector Terminal	-
6	57M10334	5	Elec. Connector Cavity Plug	-
7	57M10334	5	Elec. Connector Cavity Plug	-
7	57M10331	3	Elec. Connector Terminal	-
7	57M10330	15	Elec. Connector Terminal	-
7	57M10607	1	Elec. Connector Housing	ACS Controller2 Connector J3, A56-03
7	57M10333	9	Elec. Connector Cavity Plug	-
8	57M10615	1	Elec. Connector Housing	ACS Controller2 Connector J2, A56-02
8	57M10330	15	Elec. Connector Terminal	-
8	57M10333	25	Elec. Connector Cavity Plug	-
8	57M10617	8	Elec. Connector Housing	-
9	57M10333	19	Elec. Connector Cavity Plug	-
9	57M10334	4	Elec. Connector Cavity Plug	-
9	57M10617	4	Elec. Connector Housing	-
9	57M10330	5	Elec. Connector Terminal	-
9	57M10609	1	Elec. Connector Housing	ACS Controller2 Connector J1, A56-01
10	57M9780	1	Elec. Connector Housing	Spool Position Feedback S1L Sensor, B110
10	R78065	3	Elec. Connector Terminal	-
11	57M9780	1	Elec. Connector Housing	Spool Position Feedback S1R Sensor, B111
11	R78065	3	Elec. Connector Terminal	-
12	57M9780	1	Elec. Connector Housing	Spool Position Feedback S2L Sensor, B112
12	R78065	3	Elec. Connector Terminal	-
13	R78065	3	Elec. Connector Terminal	-
13	57M9780	1	Elec. Connector Housing	Spool Position Feedback S2R Sensor, B113
14	57M9817	1	Elec. Connector Housing	Articulation Angle Sensor, B114
14	R78065	4	Elec. Connector Terminal	-
15	57M10228	1	Elec. Connector Accessory	-
16	57M9957	1	Elec. Connector Housing	24V to 12V, Voltage Converter, G16
16	R78065	6	Elec. Connector Terminal	-
17	57M8013	2	Elec.Connect Locking Device	-
18	57M9957	1	Elec. Connector Housing	24V to 12V, Voltage Converter, G15
18	R78065	6	Elec. Connector Terminal	-
19	57M13366	2	Elec. Connector Accessory	-
20	57M9801	1	Elec. Connector Housing	Inline Wiring Harness Engine Frame to Cab Harness, X138B
20	57M9814	2	Elec. Connector Cavity Plug	-
20	57M7542	1	Elec. Connector Terminal	-
20	R78065	9	Elec. Connector Terminal	-
21	57M9800	1	Elec. Connector Housing	Inline Wiring Harness Engine Frame to Cab Harness, X132B
21	R78065	9	Elec. Connector Terminal	-
21	57M7542	1	Elec. Connector Terminal	-
21	57M9814	2	Elec. Connector Cavity Plug	-
22	57M9845	2	Elec. Connector Accessory	-
23	57M7829	2	Elec. Connector Terminal	-
23	57M7850	1	Elec. Connector Housing	Steer 1 ON/OFF Solenoid, Y75
24	57M7813	1	Elec. Connector Housing	Steer 1 LH Solenoid, Y76
24	57M7829	2	Elec. Connector Terminal	-
25	57M7813	1	Elec. Connector Housing	Steer 1 RH Solenoid, Y77
25	57M7829	2	Elec. Connector Terminal	-
26	57M7850	1	Elec. Connector Housing	Steer 2 ON/OFF Solenoid, Y78
26	57M7829	2	Elec. Connector Terminal	-
27	57M7829	2	Elec. Connector Terminal	-
27	57M7813	1	Elec. Connector Housing	Steer 2 LH Solenoid, Y79
28	57M7813	1	Elec. Connector Housing	Steer 2 RH Solenoid, Y80
28	57M7829	2	Elec. Connector Terminal	-
29	57M7796	1	Elec. Connector Housing	Orbital Load Sense Pressure Sensor 2, B53
29	57M10925	3	Elec. Connector Terminal	-
30	57M7796	1	Elec. Connector Housing	Orbital Load Sense Pressure Sensor 1, B52
30	57M10925	3	Elec. Connector Terminal	-
31	57M11529	2	Elec. Connector Accessory	-
32	R44302	1	Tie Band	-

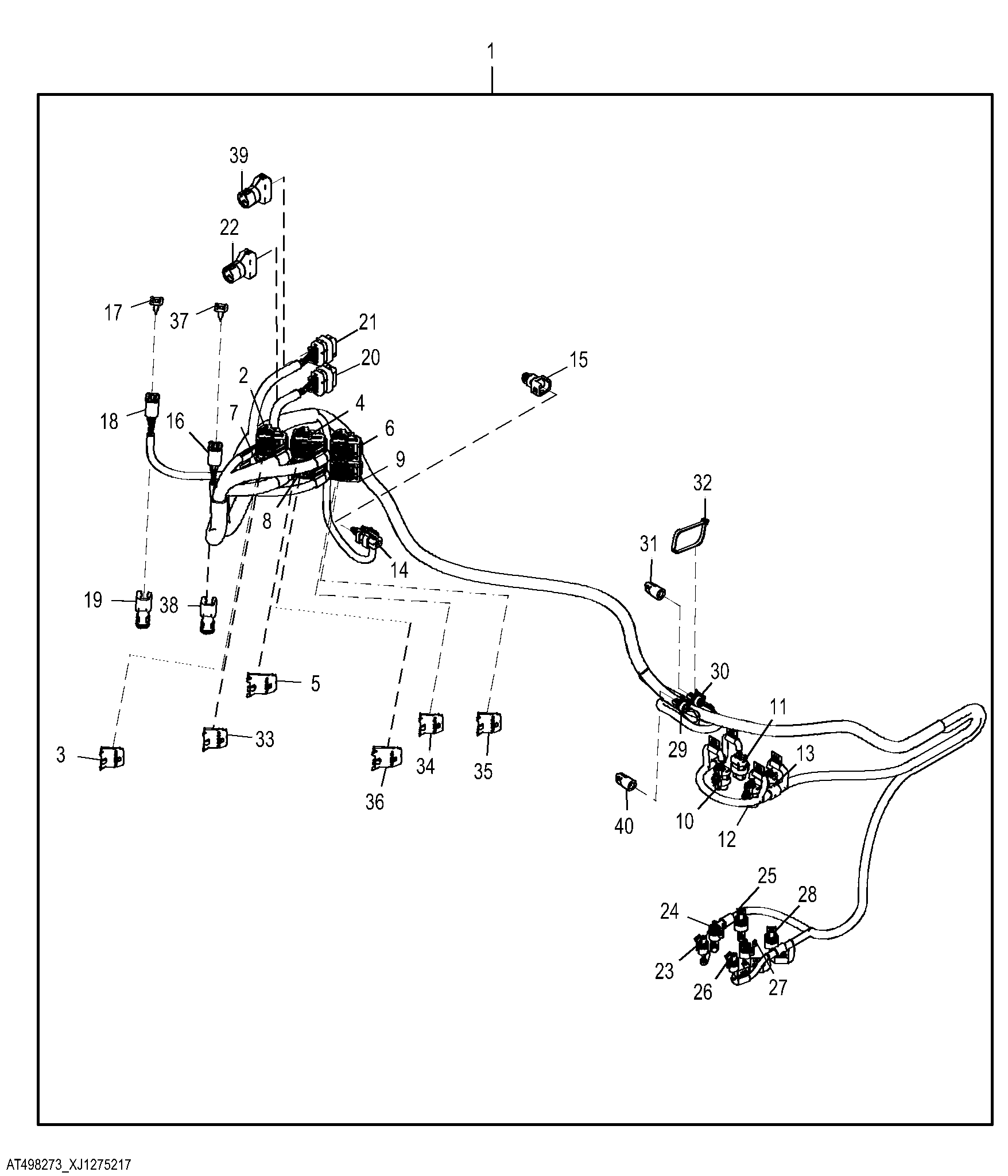

EH Joystick Steering Harness and Connectors
