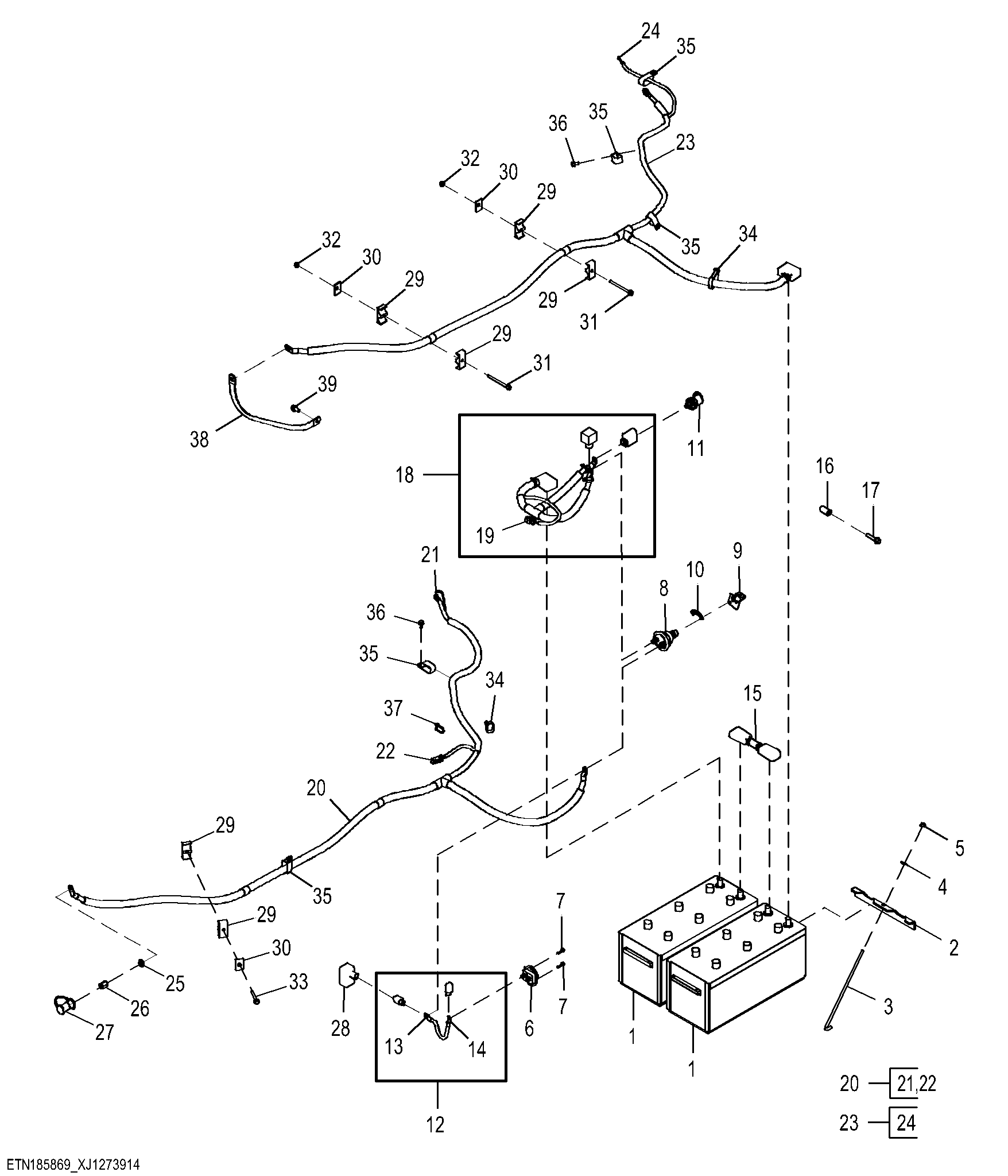

Batteries and Cables with Secondary Steering

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY23020	2	Dry Charged Battery	12 V
2	T217516	1	Angle	ORDER T415576
2	T415576	1	Angle	-
3	T79471	1	Hook Bolt	Battery Clamp
4	24M7546	1	Washer	8.400 X 25 X 2 mm
5	14M7396	1	Lock Nut	M8
6	F125640	1	Circuit Breaker	120 A
7	19M9197	2	Screw	M5 X 25
8	AT41188	1	Switch	Battery Disconnect
9	AT414316	1	Handle	-
10	T268456	1	Label	Disconnect
11	AN205832	1	Elec. Connector Terminal	Positive
12	AT408675	1	Battery Cable	-
13	57M10935	1	Elec. Connector Terminal	-
14	57M10936	1	Elec. Connector Terminal	-
15	AT444722	1	Battery Cable	Battery To Battery
16	T153802	1	Spacer	-
17	19M10011	1	Screw	M10 X 50
18	AT469173	1	Battery Cable	Positive
19	57M9726	1	Elec. Connector Housing	To ECU/JD Link Battery Power Inline, X4B
19	57M7542	1	Elec. Connector Terminal	-
19	R78065	1	Elec. Connector Terminal	-
20	AT484546	1	Battery Cable	Positive To Starter and Secondary Steering, INCLUDES 57M11361 AND 57M9730
20	57M13470	1	Elec. Connector Accessory	-
21	57M11361	1	Elec. Connector Terminal	Secondary Steering Pump Motor Relay, K6-3
22	57M9730	1	Elec. Connector Housing	To Engine Frame, X7B
22	R78066	1	Elec. Connector Terminal	-
22	57M9814	1	Elec. Connector Cavity Plug	-
23	AT484547	1	Battery Cable	Negative To Starter and Secondary Steering, INCLUDES 57M11361
24	57M11361	1	Elec. Connector Terminal	-
25	24M7544	1	Washer	13 X 25 X 3 mm
26	E64052	1	Nut	-
27	T134104	1	Cover	-
28	T353139	1	Cover	Boot Positive Terminal
29	H115379	6	Clamp	-
30	H112567	3	Plate	SUB FOR H121168
31	19M7970	2	Screw	M8 X 100
32	14M7649	2	Flange Nut	M8
33	19M9842	1	Screw	M8 X 60
34	H224073	2	Tie Band	-
35	AH77869	5	Clip	-
36	19M9405	2	Screw	M8 X 16
37	R44302	5	Tie Band	-
38	AT472770	1	Ground Cable	-
39	19M9844	1	Screw	M10 X 20

Batteries and Cables with Secondary Steering
