Axle Cooling and Filtration System for Dual Differential Lock (4 of 4)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T396730	1	Plate	Axle Cooling Tubes Plate, Middle
2	38H5003	2	Adapter Fitting	-
3	T77857	2	O-Ring	-
4	51M7043	2	O-Ring	15.300 X 2.200 mm
5	AT465367	1	Bracket	Hose Loop
6	19M9836	2	Screw	M8 X 20
7	38H5010	2	Adapter Fitting	-
8	T77932	2	O-Ring	-
9	51M7043	2	O-Ring	15.300 X 2.200 mm
10	H117589	2	Half Clamp	-
11	H120847	6	Clamp	-
12	H135156	2	Clamp	-
13	AT475404	1	Oil Line	Rear Valve to Cooler
14	AT475483	1	Oil Line	Cooler to Front Axle
15	AT501573	1	Oil Line	Cooler to Rear Axle
16	AT501571	1	Oil Line	Rear Valve to Cooler
17	AT476376	1	Hydraulic Hose	Cooler to BH Front, INCLUDES T77932
18	T77932	1	O-Ring	-
19	AT503634	1	Hydraulic Hose	Cooler Outlet Front, INCLUDES T77932
20	T77932	1	O-Ring	-
21	AT503636	1	Hydraulic Hose	Cooler Outlet Rear, INCLUDES T77932
22	T77932	1	O-Ring	-
23	AT504550	1	Hydraulic Hose	Cooler Inlet Front, INCLUDES T77932
24	T77932	1	O-Ring	-
25	AT476425	1	Hydraulic Hose	Cooler Inlet Rear, INCLUDES T77932
26	T77932	1	O-Ring	-
27	AT476534	1	Hydraulic Hose	Cooler to Axle Rear, INCLUDES T77932
28	T77932	1	O-Ring	-
29	AT458118	1	Plate	-
30	AT499429	1	Bracket	-
31	19M9873	2	Screw	M12 X 25
32	H121168	2	Plate	-
33	19M9843	1	Screw	M8 X 90
34	19M9977	1	Screw	M8 X 80
35	19M7979	1	Screw	M8 X 55
36	14M7649	3	Flange Nut	M8
37	24M7545	1	Washer	10.500 X 30 X 2.500 mm
38	19M9847	1	Screw	M10 X 45
39	T77857	2	O-Ring	-
40	T77932	2	O-Ring	-
41	T24359	1	Spacer	-

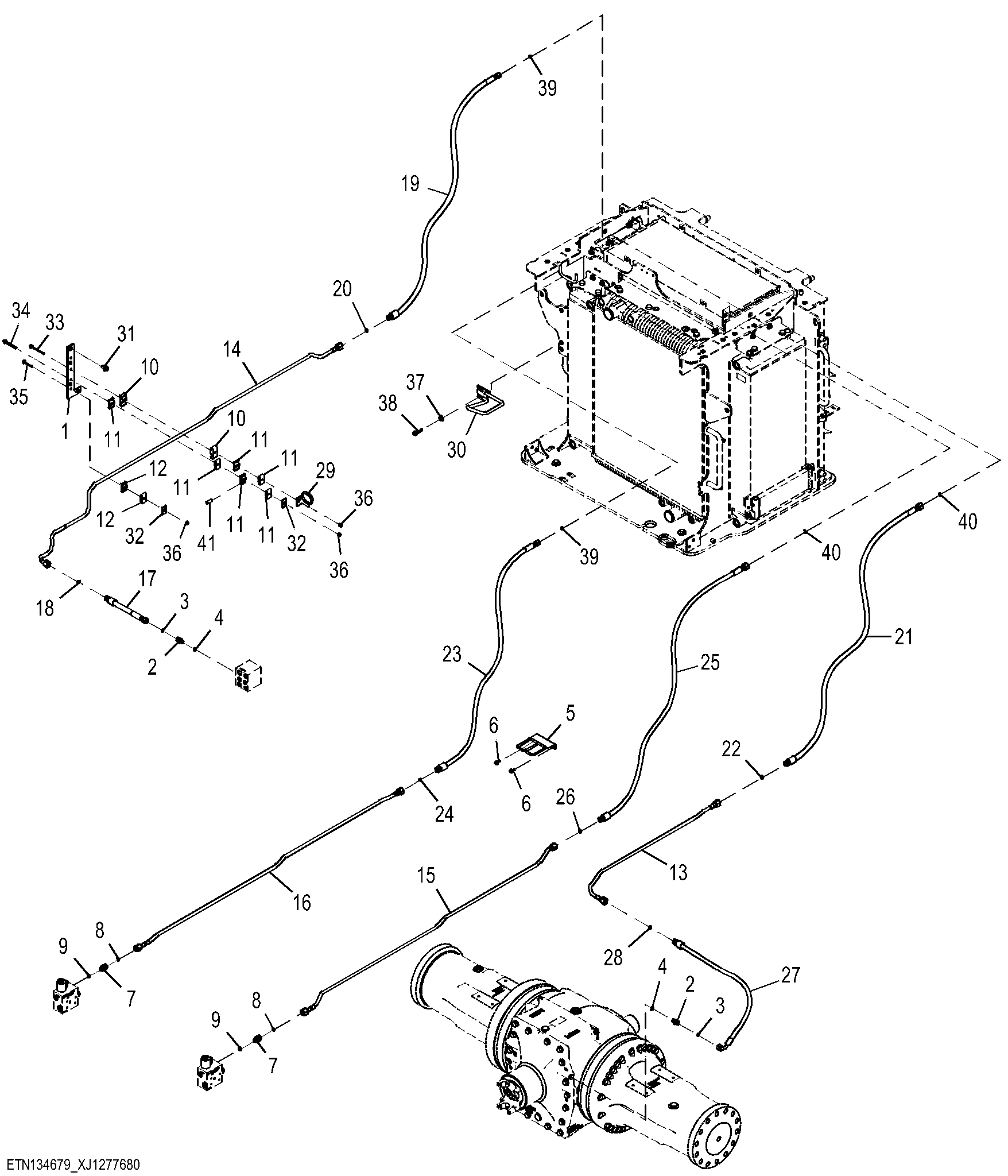

Axle Cooling and Filtration System for Dual Differential Lock (4 of 4)
