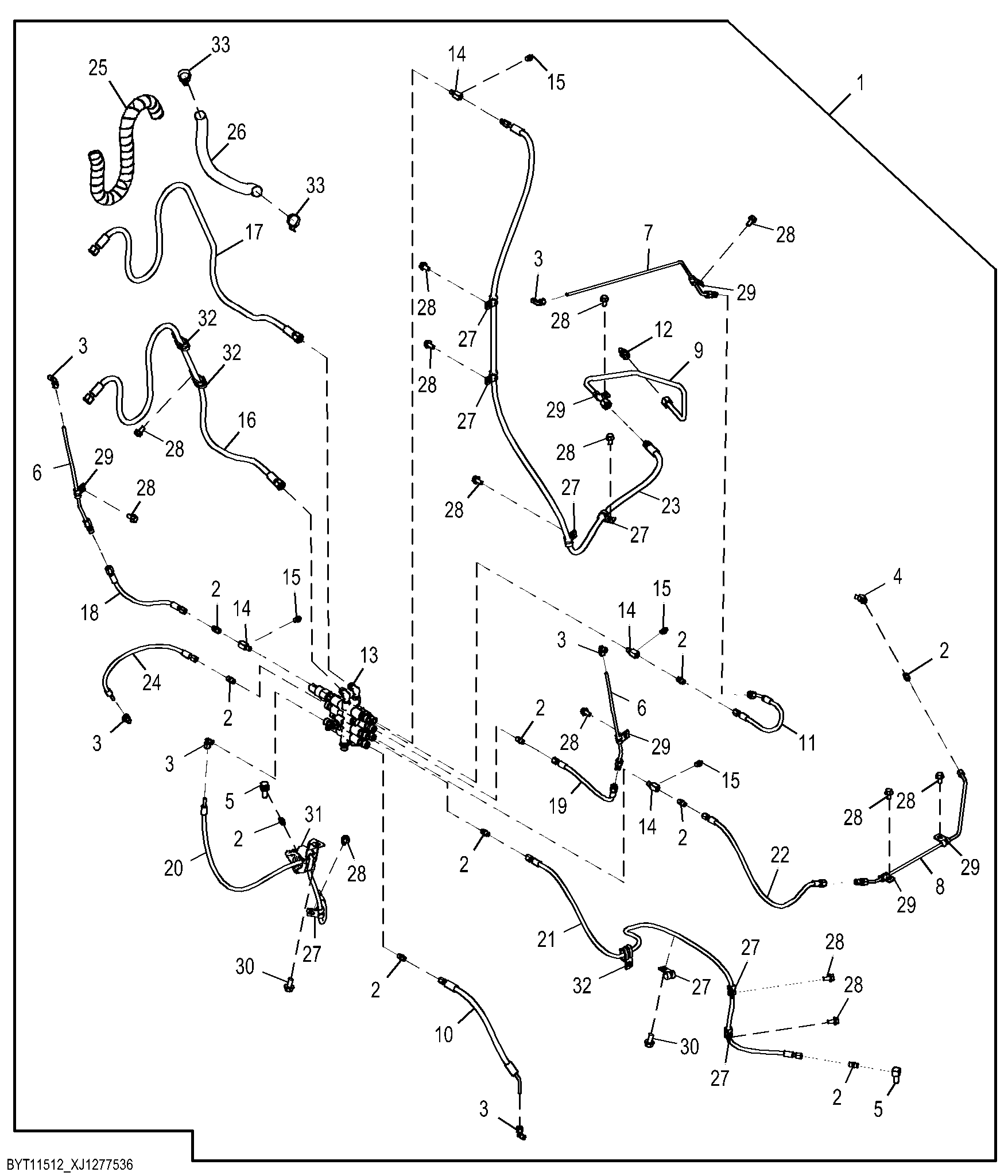

Autolube Field Kit, Standard (2 of 3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11512	1	Mounting Parts	WHOLE GOODS
2	T419970	11	Fitting	-
3	T419972	6	Fitting	-
4	M45937	1	Elbow Fitting	-
5	E53801	2	Elbow Fitting	-
6	AT499495	2	Tube	To Loader Frame
7	AT499497	1	Tube	To Loader Frame
8	AT499496	1	Tube	To Loader Frame
9	AT503999	1	Tube	-
10	AT499418	1	Grease Hose	To Loader Frame
11	AT499416	1	Grease Hose	-
12	T423861	1	Fitting	-
13	AT503739	1	Control Valve	Loader Frame Control Valve Components on Separate Page
14	T410069	4	Fitting	-
15	JD7759	4	Lubrication Fitting	-
16	AT500835	1	Grease Hose	To Boom Control Valve
17	AT500835	1	Grease Hose	To Boom Control Valve
18	AT499417	1	Grease Hose	-
19	AT499417	1	Grease Hose	-
20	AT499419	1	Grease Hose	To Loader Frame
21	AT499420	1	Grease Hose	To Loader Frame
22	AT499421	1	Grease Hose	-
23	AT499422	1	Grease Hose	-
24	AT499467	1	Grease Hose	To Loader Frame
25	T419973	1	Hose Guard	-
26	T421859	1	Hose Guard	-
27	T78974	9	Clamp	-
28	19M9405	15	Screw	M8 X 16
29	T74410	6	Clamp	-
30	19M9844	2	Screw	M10 X 20
31	T397502	1	Clamp	-
32	T269959	3	Clamp	-
33	H224073	2	Tie Band	-

Autolube Field Kit, Standard (2 of 3)
