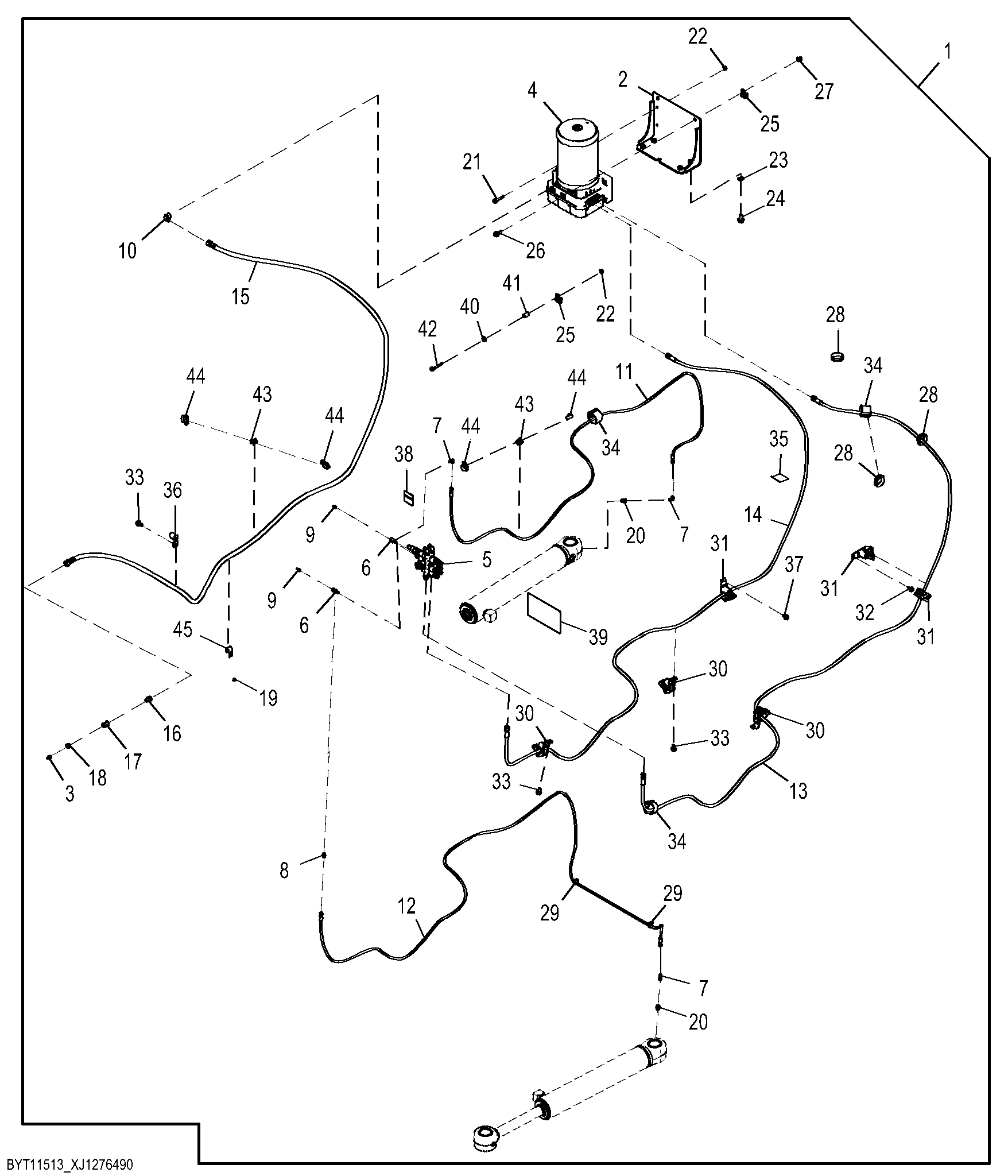

Autolube Field Kit, High Lift (3 of 3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11513	1	Mounting Parts	WHOLE GOODS
2	AT482697	1	Bracket	-
3	TH100074	1	Lubrication Fitting	-
4	AT503544	1	Hydraulic Pump	Components on Separate Page
5	AT503739	1	Control Valve	Loader Frame Control Valve Components on Separate Page
6	T410069	2	Fitting	-
7	T426898	3	Fitting	-
8	T419970	1	Fitting	-
9	JD7759	2	Lubrication Fitting	-
10	T423085	1	Fitting	-
11	AT499462	1	Grease Hose	INCLUDES T426907 AND T426906
12	AT499463	1	Grease Hose	INCLUDES T426907 AND T426906
13	AT504123	1	Grease Hose	-
14	AT504123	1	Grease Hose	-
15	AT499468	1	Grease Hose	To Hydraulic Pump
16	T418441	1	Fitting	-
17	T420088	1	Fitting	-
18	T420089	1	Fitting	-
19	15H558	1	Pipe Plug	1/8"
20	T419969	2	Fitting	-
21	19M9841	4	Screw	M8 X 50
22	14M7649	5	Flange Nut	M8
23	24M7544	4	Washer	13 X 25 X 3 mm
24	19M9873	4	Screw	M12 X 25
25	T76252	3	Clamp	-
26	19M9845	2	Screw	M10 X 25
27	14M7593	2	Lock Nut	M10
28	T305804	3	Grommet	-
29	R44302	2	Tie Band	-
30	T397502	3	Clamp	-
31	T397758	3	Clamp	-
32	19M9405	1	Screw	M8 X 16
33	19M9844	3	Screw	M10 X 20
34	T253535	3	Adjusting Strap	-
35	T410526X19	1	Label	Axle Lube Decal Auto Lube Only
36	R543182	1	Clamp	-
37	19M10223	1	Screw	M10 X 16
38	T422209X19	1	Label	Autolube Fill Location
39	T422339X00	1	Label	Autolube Manifold Map
40	24M7546	1	Washer	8.400 X 25 X 2 mm
41	28H3389	1	Spacer	0.423" X 0.675" X 1"
42	19M9842	1	Screw	M8 X 60
43	RE345761	2	Swivel	-
44	H224073	4	Tie Band	-
45	T296629	1	Clamp	-

Autolube Field Kit, High Lift (3 of 3)
