Auto Lubrication System Kit, Hi Lift Front Components

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT438533	1	Bracket	Pump
2	AT435242	1	Hydraulic Pump	Lubrication Pump
3	-	1	Part 3	MAKE FROM AT453340, CTL 1861 mm. INCLUDES T348985, T361961 AND T361962
4	-	1	Part 4	MAKE FROM AT453340, CTL 1798 mm. INCLUDES T348985, T361960 AND T361962
5	-	1	Part 5	MAKE FROM AT453340, CTL 1848 mm. INCLUDES T348985, T361961 AND T361962
6	-	1	Part 6	MAKE FROM AT453340, CTL 2070 mm. INCLUDES T348985, T361961 AND T361962
7	-	1	Part 7	MAKE FROM AT453340, CTL 1891 mm. INCLUDES T348985, T361960 AND T361962
8	AT456400	1	Hydraulic Hose	-
9	AT440438	1	Wiring Harness	-
10	T210282	1	Elec. Connector Housing	Cab Switch
10	57M7429	4	Elec. Connector Terminal	-
11	RE12362	1	Electrical Connector Assy	Ignition Power
11	R78059	1	Elec. Connector Seal	-
11	R78060	1	Elec. Connector Terminal	-
12	57M9584	1	Elec. Connector Housing	Pump Inline
12	57M7399	5	Elec. Connector Seal	-
12	57M9586	5	Elec. Connector Terminal	-
12	57M7401	2	Elec. Connector Cavity Plug	-
13	R78061	1	Elec. Connector Terminal	-
13	R78052	1	Electrical Connector Assy	Ground
13	R78059	1	Elec. Connector Seal	-
14	RE12362	1	Electrical Connector Assy	-
15	R78052	1	Electrical Connector Assy	-
16	57M8017	1	Elec. Connector Housing	Load Centre Inline 2
16	R78066	4	Elec. Connector Terminal	-
17	57M8015	1	Electrical Connector Assy	Load Centre Inline 1
17	R78065	4	Elec. Connector Terminal	-
18	57M8016	1	Elec.Connect Locking Device	-
19	57M7619	1	Elec.Connect Locking Device	-
20	57M12229	1	Elec. Connector Accessory	-
21	M45937	2	Elbow Fitting	-
22	T74416	9	Clamp	-
23	T346261	1	Plate	-
24	T345031	1	Tee Fitting	-
25	T77814	1	O-Ring	-
26	AT438486	1	Pressure Gauge	-
27	24M7616	2	Washer	9 X 16 X 1.600 mm
28	03M7186	1	Bolt	M8 X 30
29	19M9838	2	Screw	M8 X 30
30	14M7649	7	Flange Nut	M8
31	24M7544	3	Washer	13 X 25 X 3 mm
32	19M9873	3	Screw	M12 X 25
33	19M8320	1	Screw	M10 X 45
34	19M7834	10	Screw	M6 X 45
35	R44302	9	Tie Band	-
36	R44302	6	Tie Band	-
37	AT456402	1	Hydraulic Hose	INCLUDES T77857
38	T77857	1	O-Ring	-
39	AT456401	1	Hydraulic Hose	-
40	AT441098	1	Switch	-
41	T65643	1	Grommet	-
42	T348808	1	Label	Grease
43	AT456399	1	Hydraulic Hose	-
44	38H5496	1	Elbow Fitting	-
45	T77814	2	O-Ring	-
46	38H1393	1	Elbow Fitting	-
47	T77613	2	O-Ring	-
48	24M7145	1	Washer	15 X 24 X 2.500 mm
49	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
50	38H5090	2	Nut	9/16"
51	T81029	1	Nut	-
52	AT456666	1	Hydraulic Hose	INCLUDES T77613
53	T77613	1	O-Ring	-
54	14M7400	1	Lock Nut	M10
55	T269640	9	Clamp	-
56	JD7845	6	Elbow Fitting	-
57	T360946	1	Lubrication Fitting	-
58	T77814	1	O-Ring	-
59	JD7759	6	Lubrication Fitting	-
60	T305804	1	Grommet	-
61	RE202639	3	Elbow Fitting	-
62	R56171	1	Clip	-
63	19M7865	15	Screw	M8 X 16
64	R165654	1	Grommet	-

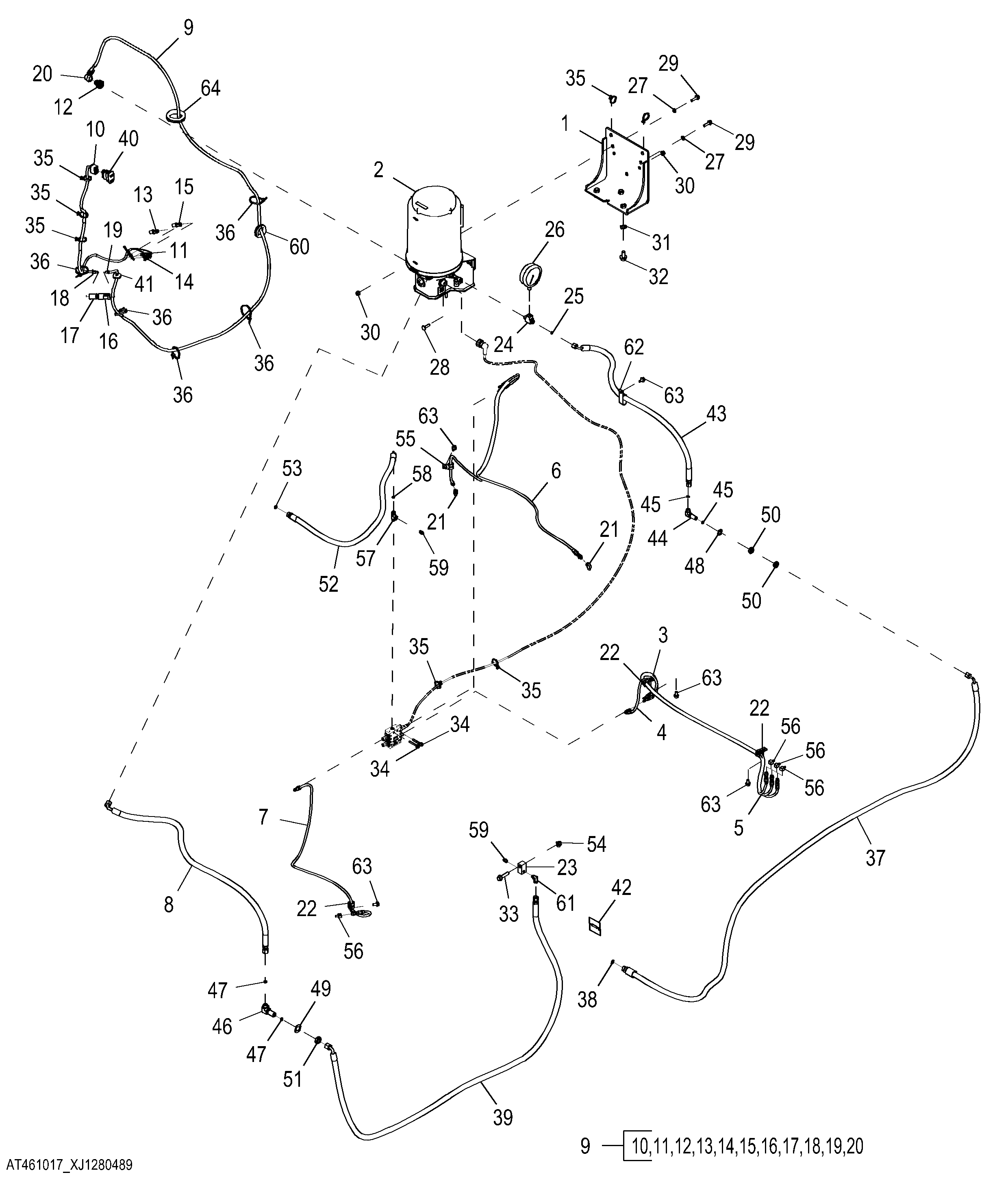

Auto Lubrication System Kit, Hi Lift Front Components
