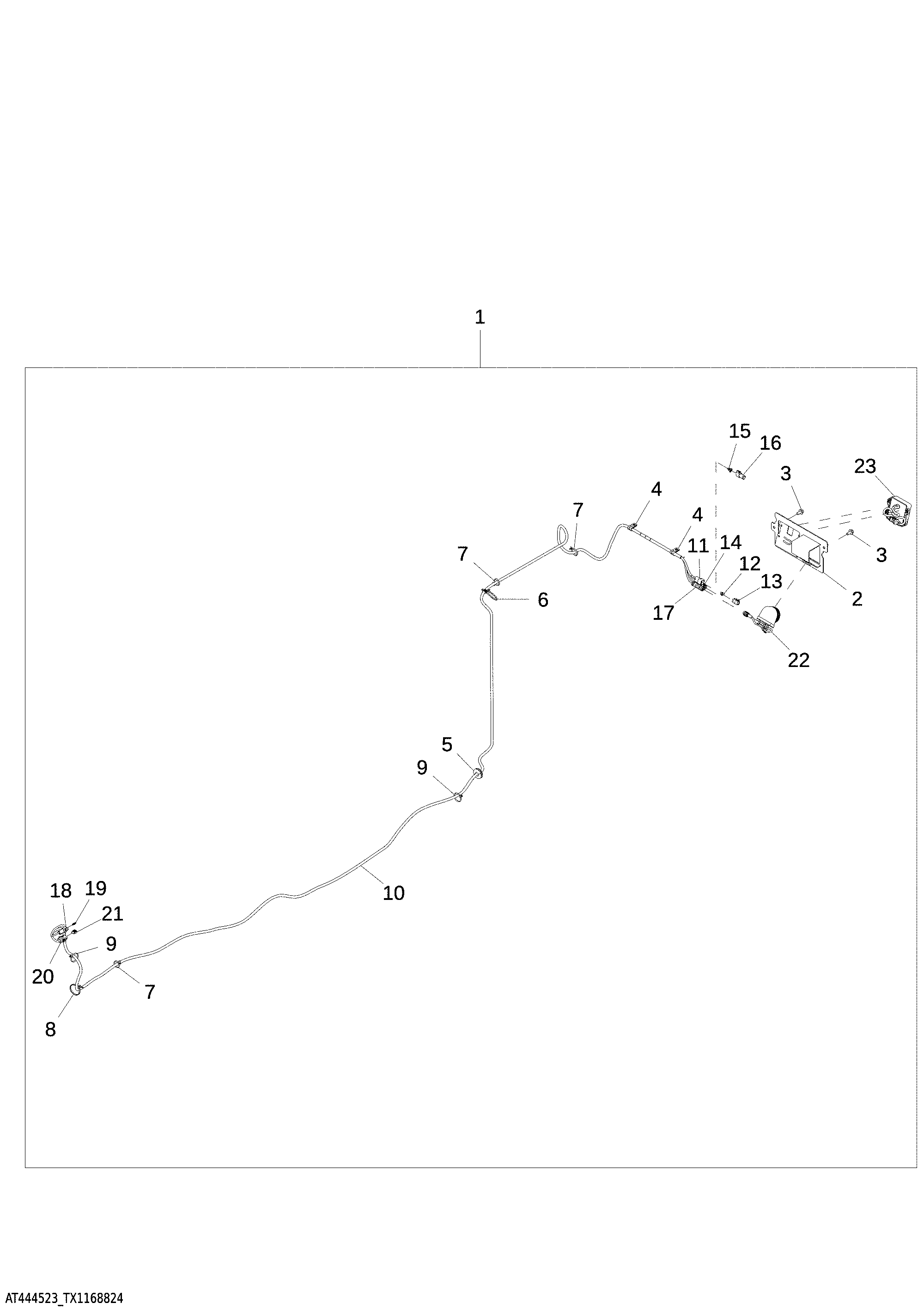

Radar Object Detection (ROD) Wiring Harness Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT444523	1	Harness Kit	WHOLE GOODS
2	AT430999	1	Bracket	-
3	19M7784	2	Screw	M10 X 20
4	T74412	2	Clamp	-
5	R45210	1	Grommet	-
6	T214634	1	Tie Band	-
7	R44302	15	Tie Band	-
8	R44302	2	Tie Band	-
9	R44302	6	Tie Band	-
10	AT497746	1	Wiring Harness	Radar Object Detection (ROD) Harness, SUB FOR AT427631
11	57M10265	1	Elec.Connect Locking Device	Rod/Radar Inline
11	57M11214	5	Elec. Connector Terminal	-
11	57M7771	7	Elec. Connector Terminal	-
12	57M10346	1	Elec. Connector Housing	-
13	57M9130	1	Electrical Connector Assy	-
14	57M8263	3	Elec. Connector Terminal	-
14	57M8018	1	Electrical Connector Assy	Can Terminator
15	57M8221	1	Elec.Connect Locking Device	-
16	57M8131	1	Electronic Terminator	-
17	57M11634	1	Elec. Connector Housing	-
18	57M8020	1	Elec. Connector Housing	Can Terminator
18	R78066	3	Elec. Connector Terminal	-
19	57M8134	1	Elec. Connector Terminal	-
20	57M11067	6	Elec. Connector Terminal	-
20	57M7771	2	Elec. Connector Terminal	-
20	57M11340	1	Elec. Connector Housing	ROD / Load Center Inline
21	57M12150	1	Elec. Connector Accessory	-
22	AT466877	1	Television Camera	INCLUDES (2) 14M7297, (2) 19M8576 AND (2) 24M7105, AT441664; SUB FOR AT441664
22	14M7297	2	Nut	M5
22	19M8576	2	Screw	M5 X 30
22	24M7105	2	Washer	6 X 12 X 1.600 mm
23	AT338273	1	Radar Sensor	Rear Object, ORDER AT499363
23	AT499363	1	Radar Sensor	Rear Object

Radar Object Detection (ROD) Wiring Harness Kit
