Fast Fill Fuel System Conversion Kit ( - 627965)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT338447	1	Fuel Tank	WHOLE GOODS
2	T213422	1	Plate	Fast Fuel Mounting Plate
3	AT317961	1	Plate	Fast Fuel Mounting Adapter Plate
4	T227932	1	Hose	Fast Fuel Hose
5	AT493336	1	Valve	Fast Fuel Receiver Assembly with Cover, SUB FOR AT439206 OR AT311554
6	AT493339	1	Valve	Fast Fuel Receiver Valve, SUB FOR AT311175
7	AT493335	1	Cap	Fast Fuel Receiver Cap, SUB FOR AT311176
8	RE67208	2	Clamp	-
9	19M7784	2	Screw	M10 X 20
10	T214877	2	Hose Fitting	-
11	-	1	Part 11	Vent Hose, MAKE FROM T207885; CTL 6.9 ft
12	AR21839	2	Clamp	-
13	AT325267	1	Bracket	-
14	T225008	1	Breather	-
15	24M7298	2	Washer	8.400 X 25 X 2 mm
16	19M7867	2	Screw	M8 X 25
17	14M7396	2	Lock Nut	M8
18	T153974	1	Clamp	-
19	19M8029	1	Cap Screw	M16 X 30
20	AT443684	1	Fuel Tank	Fast Fill Fuel Tank Components On Separate Page, NLA; ORDER AT497822
20	AT497822	1	Fuel Tank	Fast Fill Fuel Tank Components On Separate Page
21	T312802	1	Cover	Fast Fuel Cover
22	24M7102	4	Washer	13.500 X 44 X 4 mm
23	19M7785	4	Screw	M10 X 25

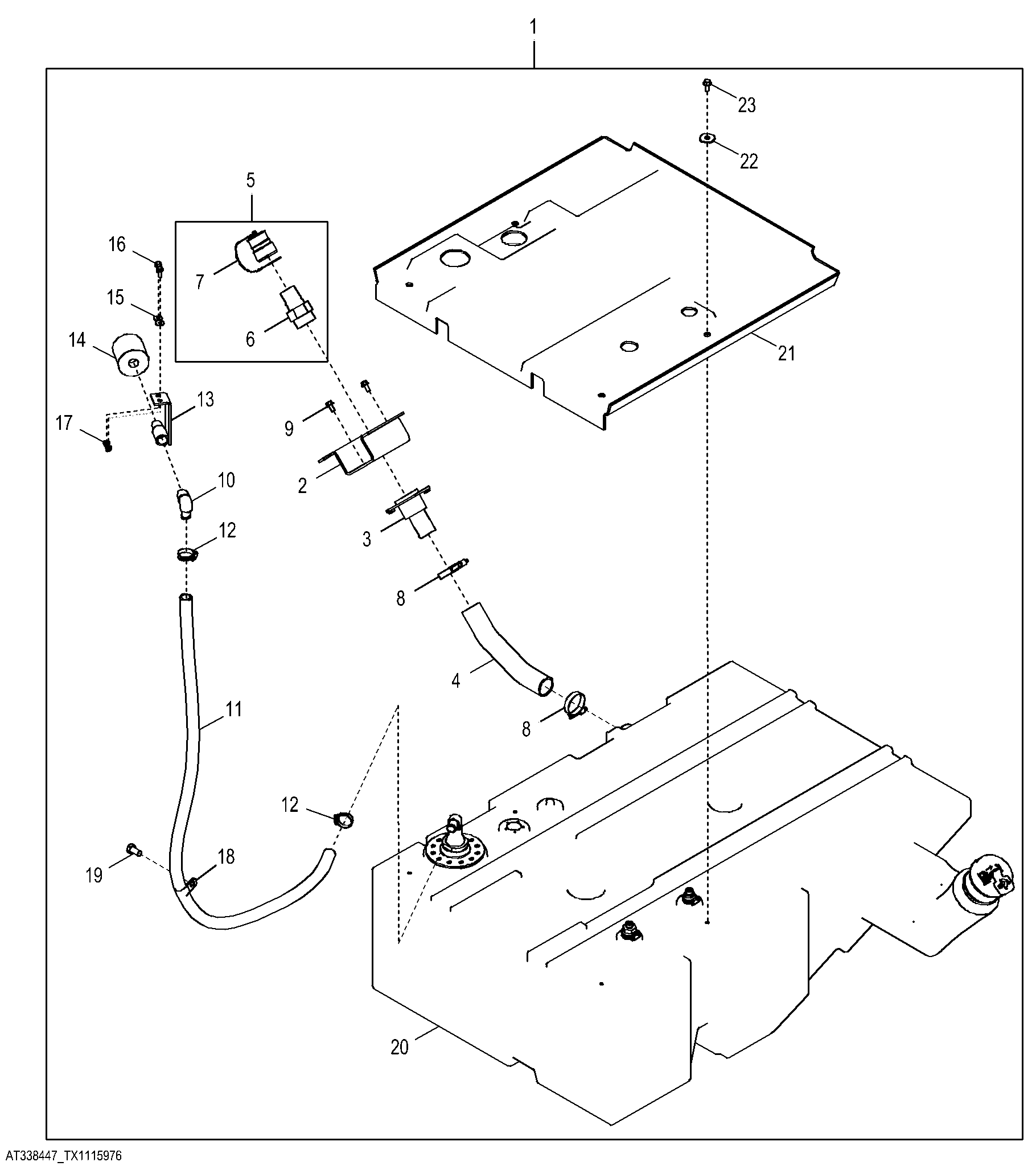

Fast Fill Fuel System Conversion Kit ( - 627965)

Нет текстового описания
