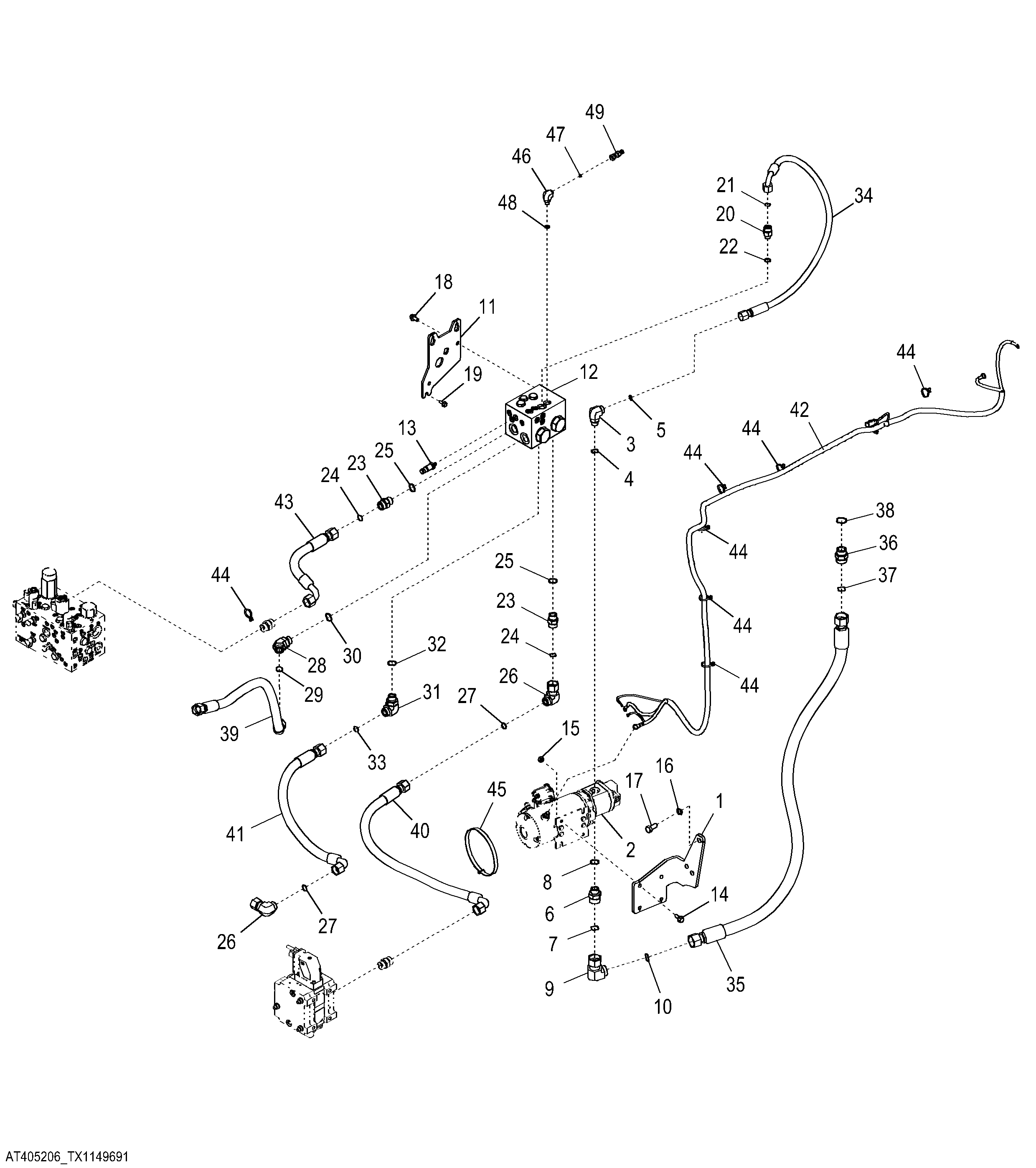

Secondary Steering System for Joystick Steering (654573 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T294122	1	Bracket	-
2	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
2	AT390169	1	Pressure Relief Valve	-
2	AT390168	1	Pump	-
2	AT210093	1	Solenoid	-
2	AT210094	1	Motor	-
3	38H1006	1	Elbow Fitting	-
4	R26906	1	O-Ring	-
5	T77932	1	O-Ring	-
6	38H1179	1	Adapter Fitting	-
7	T76938	1	O-Ring	-
8	U12547	1	O-Ring	-
9	38H1098	1	Elbow Fitting	-
10	T76938	1	O-Ring	-
11	T275106	1	Plate	-
12	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page
13	AT358048	1	Transducer	-
14	19M7785	4	Screw	M10 X 25
15	14M7274	4	Nut	M10
16	24M7427	3	Washer	15 X 24 X 2.500 mm
17	19M7877	3	Cap Screw	M14 X 30
18	19M7784	2	Screw	M10 X 20
19	19M7866	3	Screw	M8 X 20
20	38H1317	1	Fitting	-
21	T77932	1	O-Ring	-
22	R26375	1	O-Ring	-
23	38H1163	2	Adapter Fitting	-
24	T77858	2	O-Ring	-
25	U12547	2	O-Ring	-
26	38H1097	2	Elbow Fitting	-
27	T77858	2	O-Ring	-
28	38H1048	1	Elbow Fitting	-
29	T77858	1	O-Ring	-
30	U12547	1	O-Ring	-
31	38H1007	1	Elbow Fitting	-
32	U12547	1	O-Ring	-
33	T77858	1	O-Ring	-
34	AT401502	1	Hydraulic Hose	-
35	AT401499	1	Hydraulic Hose	-
36	38H1164	1	Adapter Fitting	-
37	T76938	1	O-Ring	-
38	R29936	1	O-Ring	-
39	AT359532	1	Hydraulic Hose	Fabricate
40	AT359536	1	Hydraulic Hose	Fabricate
41	AT359537	1	Hydraulic Hose	Fabricate
42	AT381770	1	Wiring Harness	Secondary Steering Harness
43	AT422595	1	Hydraulic Hose	Fabricate
44	R44302	8	Tie Band	-
45	N189220	1	Tie Band	-
46	38H1009	1	Elbow Fitting	-
47	T77814	1	O-Ring	-
48	R26448	1	O-Ring	-
49	RE60700	1	Diagnostic Coupling	-

Secondary Steering System for Joystick Steering (654573 - )
