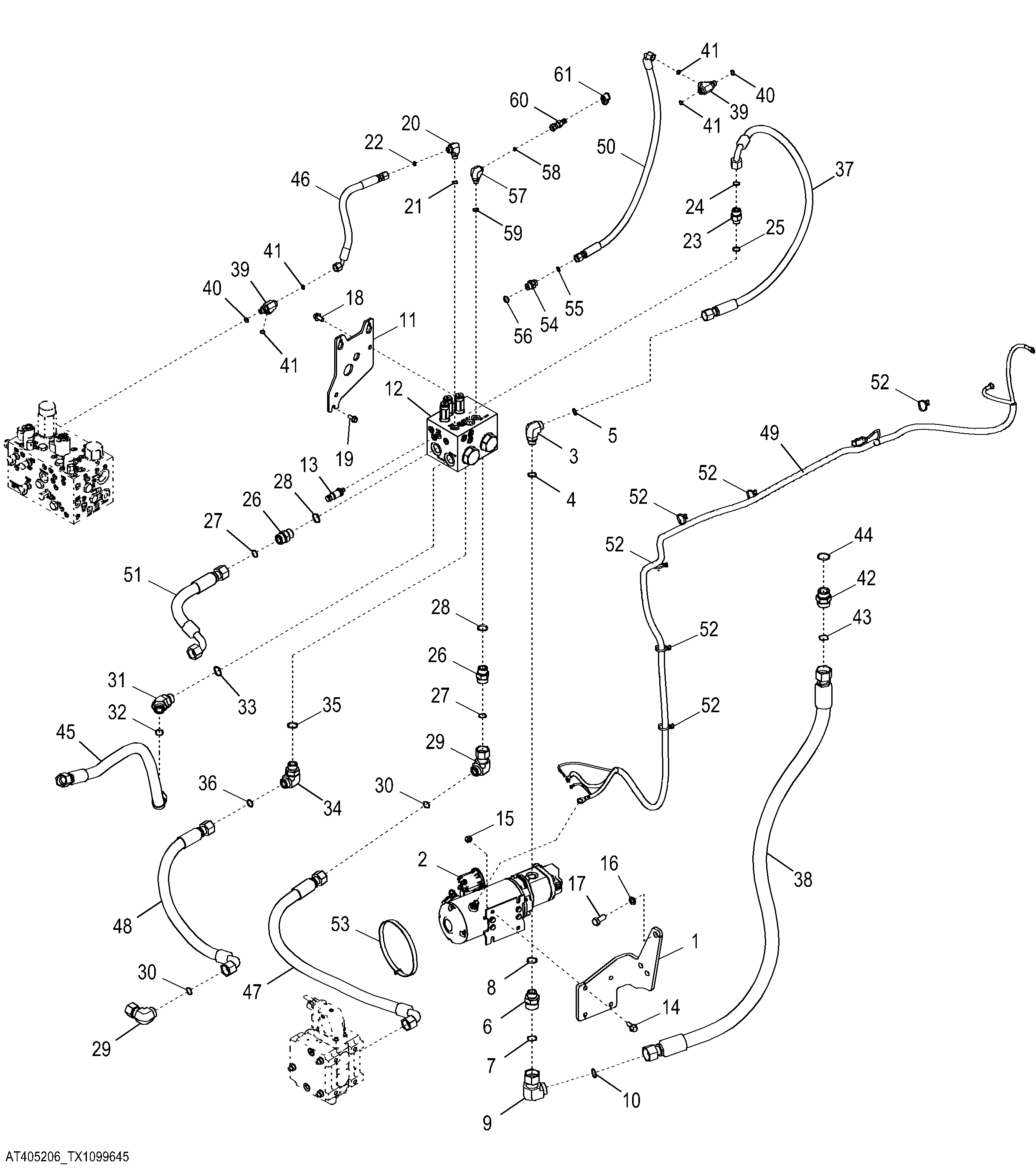

Secondary Steering System for Joystick Steering ( - 654572)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T294122	1	Bracket	-
2	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
2	AT390169	1	Pressure Relief Valve	-
2	AT390168	1	Pump	-
2	AT210093	1	Solenoid	-
2	AT210094	1	Motor	-
3	38H1006	1	Elbow Fitting	-
4	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
5	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
6	38H1179	1	Adapter Fitting	-
7	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
8	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	38H1098	1	Elbow Fitting	-
10	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
11	T275106	1	Plate	-
12	AT420496	1	Manifold	Secondary Steering Valve Components On Separate Page, NLA, SUB AT438550
12	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page, SUB FOR AT420496 AND AT380627
13	AT358048	1	Transducer	-
14	19M7785	4	Screw	M10 X 25
15	14M7274	4	Nut	M10
16	24M7427	3	Washer	15 X 24 X 2.500 mm
17	19M7877	3	Cap Screw	M14 X 30
18	19M7784	2	Screw	M10 X 20
19	19M7866	3	Screw	M8 X 20
20	38H1004	1	Elbow Fitting	-
21	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
22	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	38H1317	1	Fitting	-
24	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
25	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
26	38H1163	1	Adapter Fitting	-
27	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
29	38H1097	2	Elbow Fitting	-
30	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	38H1048	1	Elbow Fitting	-
32	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
34	38H1007	1	Elbow Fitting	-
35	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
36	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
37	AT401502	1	Hydraulic Hose	-
38	AT401499	1	Hydraulic Hose	-
39	38H1023	2	Tee Fitting	-
40	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
41	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
42	38H1164	1	Adapter Fitting	-
43	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
44	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
45	AT359532	1	Hydraulic Hose	Fabricate
46	AT359534	1	Hydraulic Hose	Fabricate
47	AT359536	1	Hydraulic Hose	Fabricate
48	AT359537	1	Hydraulic Hose	Fabricate
49	AT381770	1	Wiring Harness	Secondary Steering Harness
50	AT383153	1	Hydraulic Hose	Fabricate, NLA
51	AT422595	1	Hydraulic Hose	Fabricate
52	R44302	9	Tie Band	-
53	N189220	1	Tie Band	-
54	38H1171	1	Adapter Fitting	-
55	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
56	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
57	38H1009	1	Elbow Fitting	-
58	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
59	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
60	RE60700	1	Diagnostic Coupling	-
61	R77175	1	Cover	-
