Открытый узел

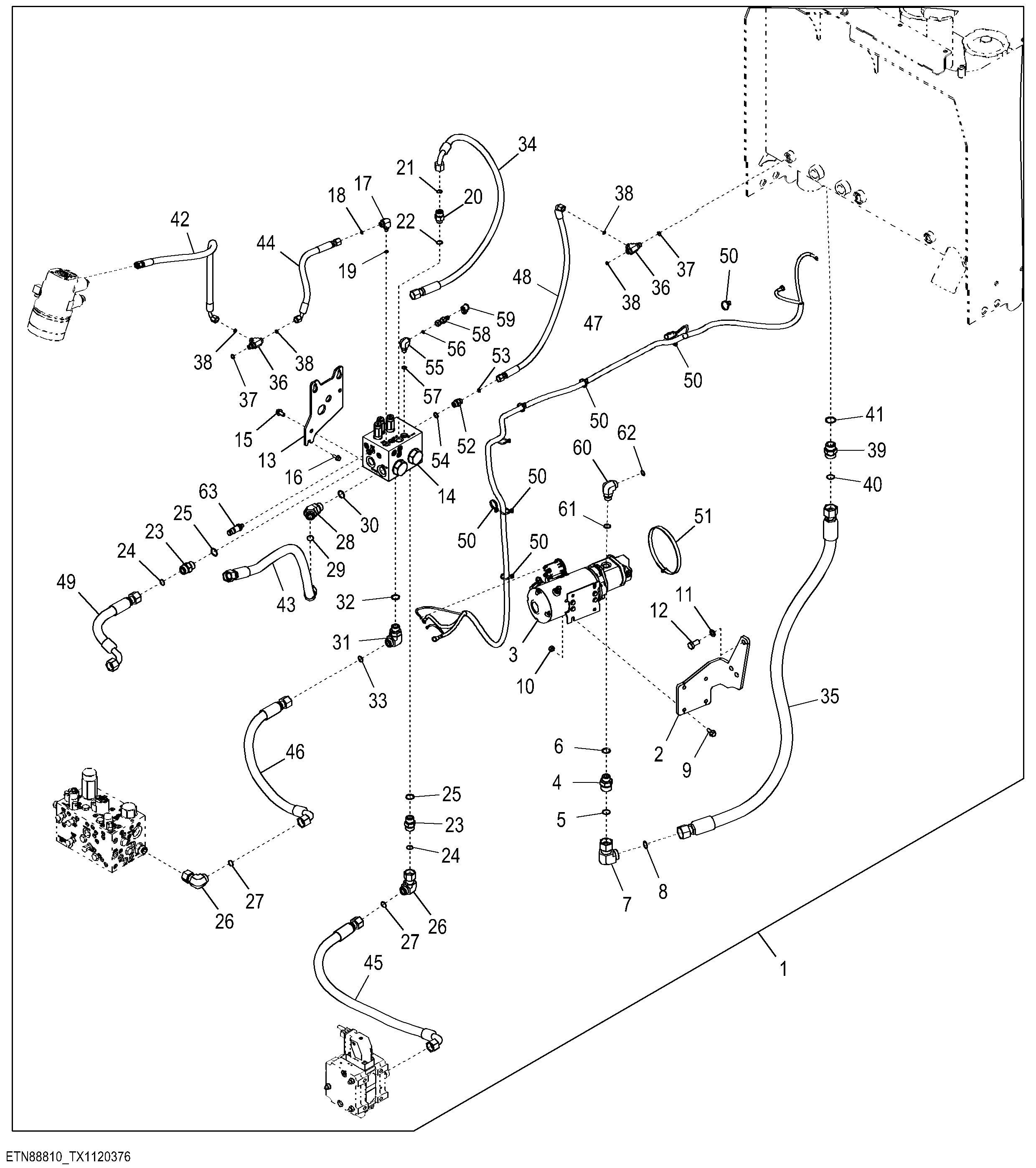

Secondary Steering System Conversion Kit ( - 654572)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT439851	1	Steering System	Whole Goods, SUB FOR ETN88810
1	ETN88810	1	Steering System	Whole Goods, NLA, SUB AT439851
2	T294122	1	Bracket	-
3	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
3	AT390169	1	Pressure Relief Valve	-
3	AT390168	1	Pump	-
3	AT210094	1	Motor	-
3	AT210093	1	Solenoid	-
4	38H1179	1	Adapter Fitting	-
5	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
6	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
7	38H1098	1	Elbow Fitting	-
8	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
9	19M7785	4	Screw	M10 X 25
10	14M7274	4	Nut	M10
11	24M7427	3	Washer	15 X 24 X 2.500 mm
12	19M7877	3	Cap Screw	M14 X 30
13	T275106	1	Plate	-
14	AT420496	1	Manifold	Secondary Steering Valve Components On Separate Page, NLA, SUB AT438550
14	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page, SUB FOR AT420496 AND AT380627
15	19M7784	2	Screw	M10 X 20
16	19M7866	3	Screw	M8 X 20
17	38H1435	1	Elbow Fitting	-
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
20	38H1317	1	Fitting	-
21	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
22	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
23	38H1163	2	Adapter Fitting	-
24	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
26	38H1097	2	Elbow Fitting	-
27	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	38H1048	1	Elbow Fitting	-
29	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
30	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
31	38H1007	1	Elbow Fitting	-
32	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
33	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
34	AT401502	1	Hydraulic Hose	-
35	AT401499	1	Hydraulic Hose	-
36	38H1023	2	Tee Fitting	-
37	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
38	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
39	38H1164	1	Adapter Fitting	-
40	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
41	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
42	AT340578	1	Hydraulic Hose	-
43	AT359532	1	Hydraulic Hose	Fabricate
44	AT359534	1	Hydraulic Hose	Fabricate
45	AT359536	1	Hydraulic Hose	Fabricate
46	AT359537	1	Hydraulic Hose	Fabricate
47	AT381770	1	Wiring Harness	Secondary Steering Harness
48	AT383153	1	Hydraulic Hose	Fabricate, NLA
49	AT422595	1	Hydraulic Hose	Fabricate
50	R44302	8	Tie Band	-
51	N189220	1	Tie Band	-
52	38H1171	1	Adapter Fitting	-
53	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
54	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
55	38H1009	1	Elbow Fitting	-
56	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
57	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
58	RE60700	1	Diagnostic Coupling	-
59	R77175	1	Cover	-
60	38H1006	1	Elbow Fitting	-
61	R26906	1	O-Ring	-
62	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
63	AT358048	1	Transducer	Pressure Sensor

Secondary Steering System Conversion Kit ( - 654572)

Нет текстового описания
