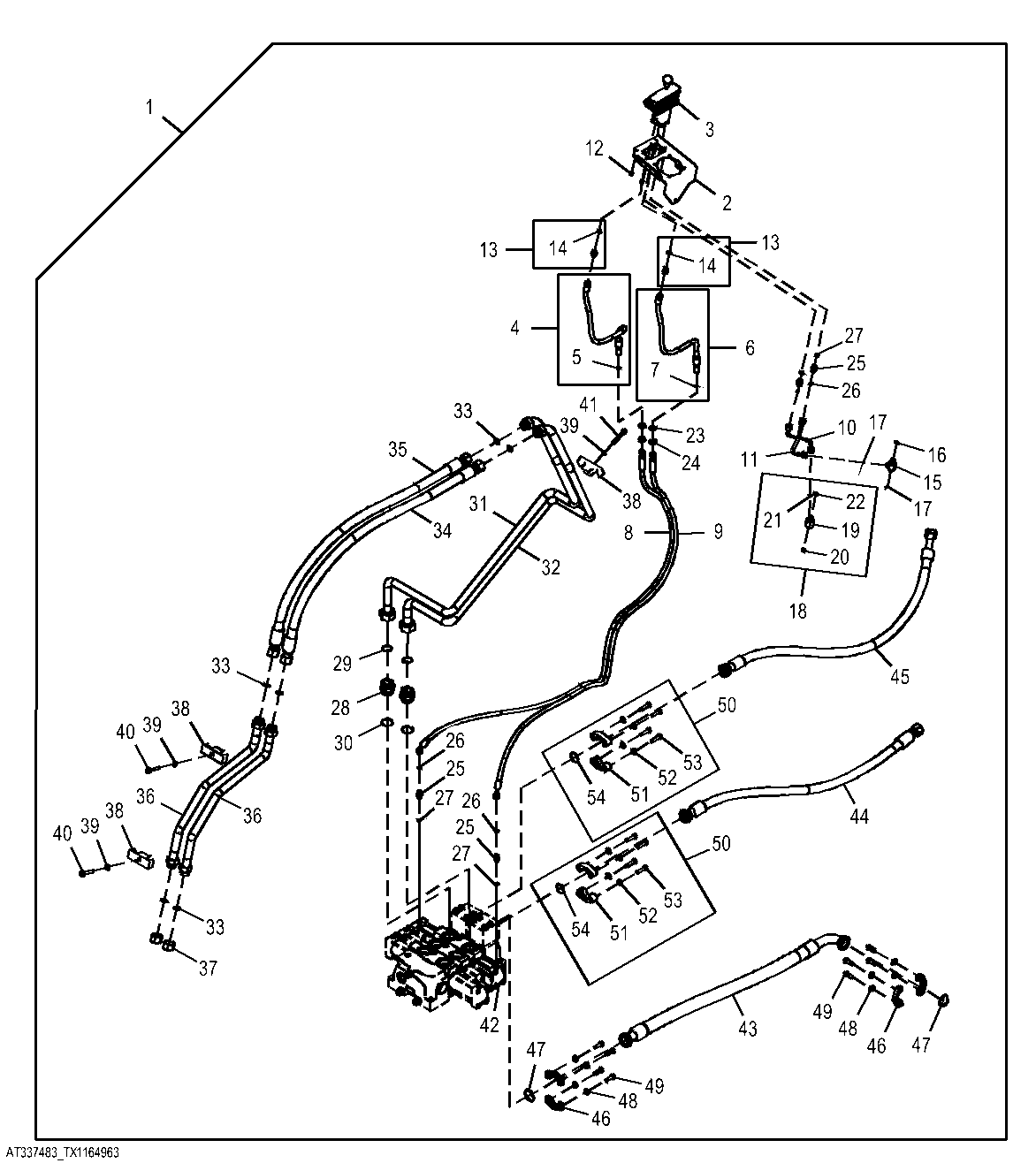

Joystick To Joystick with Auxiliary Lever Conversion Kit ( - 662427)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Stud Assembly for 3-Spool Control Valve Not Illustrated, INCLUDES (2) 810000500 AND (2) T170067
1	AT337483	1	Hose Kit	Whole Goods
1	T170067	2	Nut	-
1	810000500	2	WASHER*5/8	-
2	AT341527	1	Plate	-
3	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Single Lever Controller Components On Separate Page
4	AT336507	1	Hydraulic Hose	Fabricate
5	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	AT336507	1	Hydraulic Hose	Fabricate
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT336508	1	Hydraulic Hose	Fabricate
9	AT336508	1	Hydraulic Hose	Fabricate
10	AT342616	1	Oil Line	-
11	AT342617	1	Oil Line	-
12	14M7397	4	Lock Nut	M6
13	63H1001	2	Fitting	-
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	38H1023	1	Tee Fitting	-
16	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	61H1642	1	Adapter Fitting	-
19	38H1642	1	Adapter Fitting	-
20	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
23	12H327	2	Lock Washer	3/4"
24	T81029	2	Nut	-
25	38H1160	4	Adapter Fitting	-
26	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
28	38H1191	2	Adapter Fitting	Not Illustrated
29	T78784	2	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
30	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
31	AT203072	1	Line	-
32	AT203073	1	Line	-
33	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
34	AT206844	1	Hydraulic Hose	-
35	AT206844	1	Hydraulic Hose	-
36	AT203074	2	Line	-
37	38H1419	2	Fitting	-
38	T52979	3	Clamp	-
39	24M7239	3	Washer	10.700 X 21 X 2.500 mm
40	19M7807	2	Screw	M10 X 60
41	19M8114	1	Screw	M10 X 70
42	AT221114	1	Hyd Actuated Control Valve	Auxiliary Valve Section Components On Separate Page
43	AT437902	1	Hydraulic Hose	-
44	AT437997	1	Hydraulic Hose	Fabricate
45	AT437907	1	Hydraulic Hose	Fabricate
46	X51H-24	2	Flange Fitting	-
47	T34248	1	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
48	24M7240	4	Washer	13 X 25 X 3 mm
49	19M7403	4	Cap Screw	M12 X 35
50	AT390184	2	Fitting Kit	-
51	AT131685	2	Flange Fitting	-
52	24M7240	4	Washer	13 X 25 X 3 mm
53	19M7496	4	Cap Screw	M12 X 45
54	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
55	H77698	12	Tie Band	Not Illustrated

Joystick To Joystick with Auxiliary Lever Conversion Kit ( - 662427)
