Открытый узел

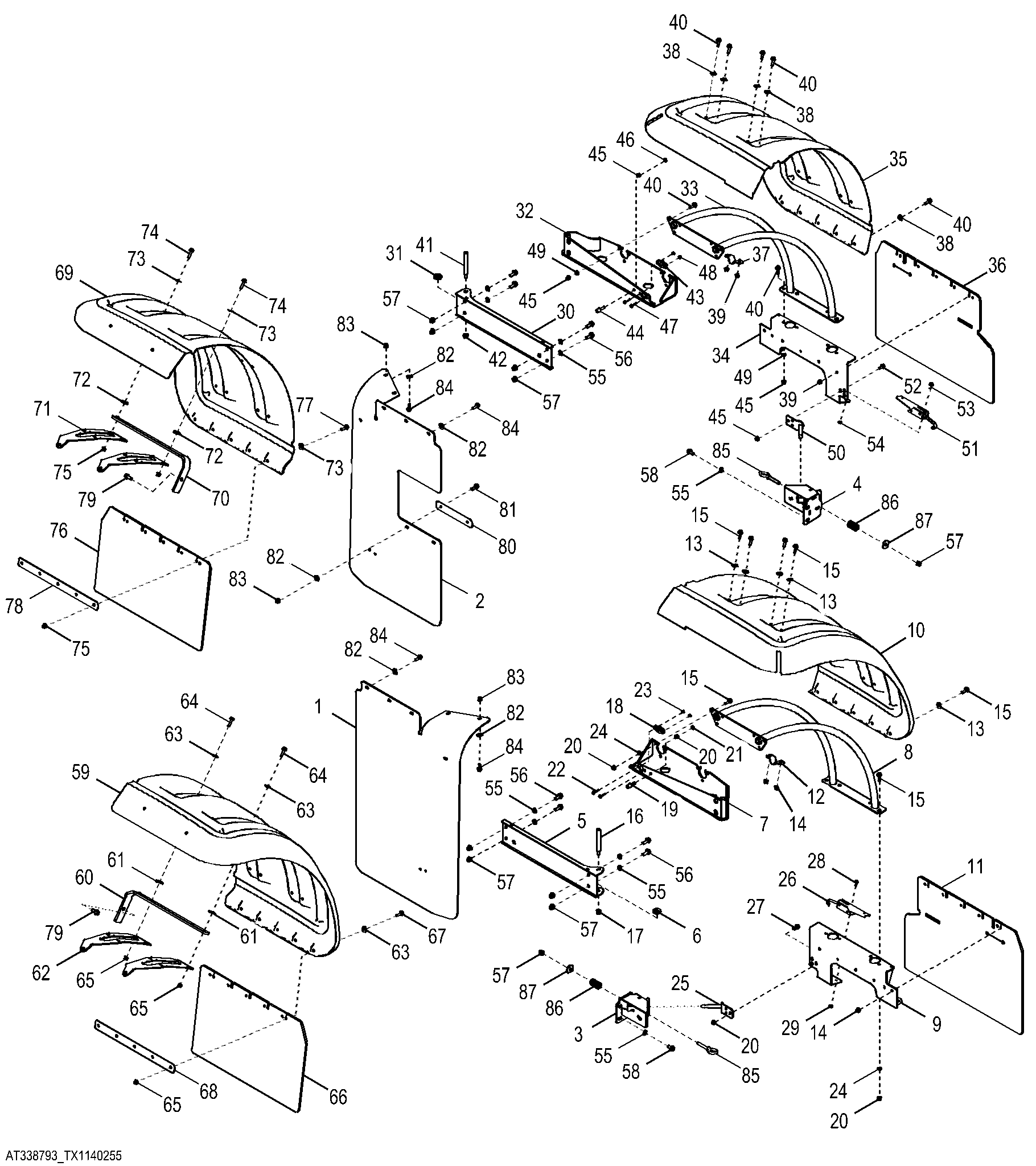

Full Coverage Front and Rear Fenders (653129 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T248806	1	Splash Guards	-
2	T249045	1	Splash Guards	-
3	AT426819	1	Bracket	-
4	AT426820	1	Bracket	-
5	AT321096	1	Hinge	-
6	24M7242	1	Washer	21.400 X 42 X 5 mm
7	AT321097	1	Hinge	-
8	AT321095	1	Support	-
9	AT426829	1	Bracket	-
10	T230522	1	Fender	-
11	T330633	1	Splash Guards	-
12	R214344	6	Clamp	-
13	24M7545	17	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7296
14	14M7593	17	Lock Nut	M10, SUB FOR 14M7400
15	19M9986	27	Screw	M10 X 35, SUB FOR 19M7835
16	T215604	1	Rod	-
17	14M7593	1	Lock Nut	M10, SUB FOR 14M7401
18	T215884	1	Support	-
19	AT219974	1	Bumper	-
20	14M7296	14	Flange Nut	M10
21	14M7152	1	Nut	M10
22	19M7833	2	Screw	M6 X 35
23	14M7397	2	Lock Nut	M6
24	24M7239	10	Washer	10.700 X 21 X 2.500 mm
25	AT426830	1	Bracket	-
26	AT377675	1	Latch	-
27	19M7785	3	Screw	M10 X 25
28	19M7866	2	Screw	M8 X 20
29	14M7298	2	Flange Nut	M8
30	AT323116	1	Hinge	-
31	24M7242	1	Washer	21.400 X 42 X 5 mm
32	AT323117	1	Hinge	-
33	AT321095	1	Support	-
34	AT426827	1	Bracket	-
35	T230523	1	Fender	-
36	T330633	1	Splash Guards	-
37	R214344	6	Clamp	-
38	24M7545	17	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7296
39	14M7593	17	Lock Nut	M10, SUB FOR 14M7400
40	19M9986	27	Screw	M10 X 35, SUB FOR 19M7835
41	T215604	1	Rod	-
42	14M7593	1	Lock Nut	M10, SUB FOR 14M7401
43	T215884	1	Support	-
44	AT219974	1	Bumper	-
45	14M7296	14	Flange Nut	M10
46	14M7152	1	Nut	M10
47	19M7833	2	Screw	M6 X 35
48	14M7397	2	Lock Nut	M6
49	24M7239	10	Washer	10.700 X 21 X 2.500 mm
50	AT426830	1	Bracket	-
51	AT377675	1	Latch	-
52	19M7785	3	Screw	M10 X 25
53	19M7866	2	Screw	M8 X 20
54	14M7298	2	Flange Nut	M8
55	24M7544	14	Washer	13 X 25 X 3 mm, SUB FOR 24M7240
56	19M9984	8	Screw	M12 X 35, SUB FOR 19M7790
57	14M7593	10	Lock Nut	M10, SUB FOR 14M7401
58	19M9873	6	Screw	M12 X 25, SUB FOR 19M7788
59	T215083	1	Fender	-
60	T215508	3	Bracket	-
61	T22381	20	Washer	-
62	T218091	2	Bracket	-
63	24M7545	23	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7296
64	19M7805	18	Screw	M10 X 45, SUB FOR 19M7804
65	14M7593	23	Lock Nut	M10, SUB FOR 14M7400
66	T279483	1	Splash Guards	-
67	19M9986	5	Screw	M10 X 35, SUB FOR 19M7835
68	T215676	1	Plate	-
69	T216226	1	Fender	-
70	T215508	3	Bracket	-
71	T218091	2	Bracket	-
72	T22381	20	Washer	-
73	24M7545	23	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7296
74	19M7805	18	Screw	M10 X 45, SUB FOR 19M7804
75	14M7593	23	Lock Nut	M10, SUB FOR 14M7400
76	T279483	1	Splash Guards	-
77	19M9986	5	Screw	M10 X 35, SUB FOR 19M7835
78	T215676	1	Plate	-
79	19M7789	6	Screw	M12 X 30
80	T209699	1	Plate	-
81	19M9986	2	Screw	M10 X 35, SUB FOR 19M7835
82	24M7545	12	Washer	10.500 X 30 X 2.500 mm, SUB FOR 24M7296
83	14M7593	6	Lock Nut	M10, SUB FOR 14M7400
84	19M9370	10	Screw	M10 X 30, SUB FOR 19M7786
85	T330437	2	Eyebolt	-
86	R56724	2	Spring	-
87	T187044	2	Washer	-

Full Coverage Front and Rear Fenders (653129 - )

Нет текстового описания
