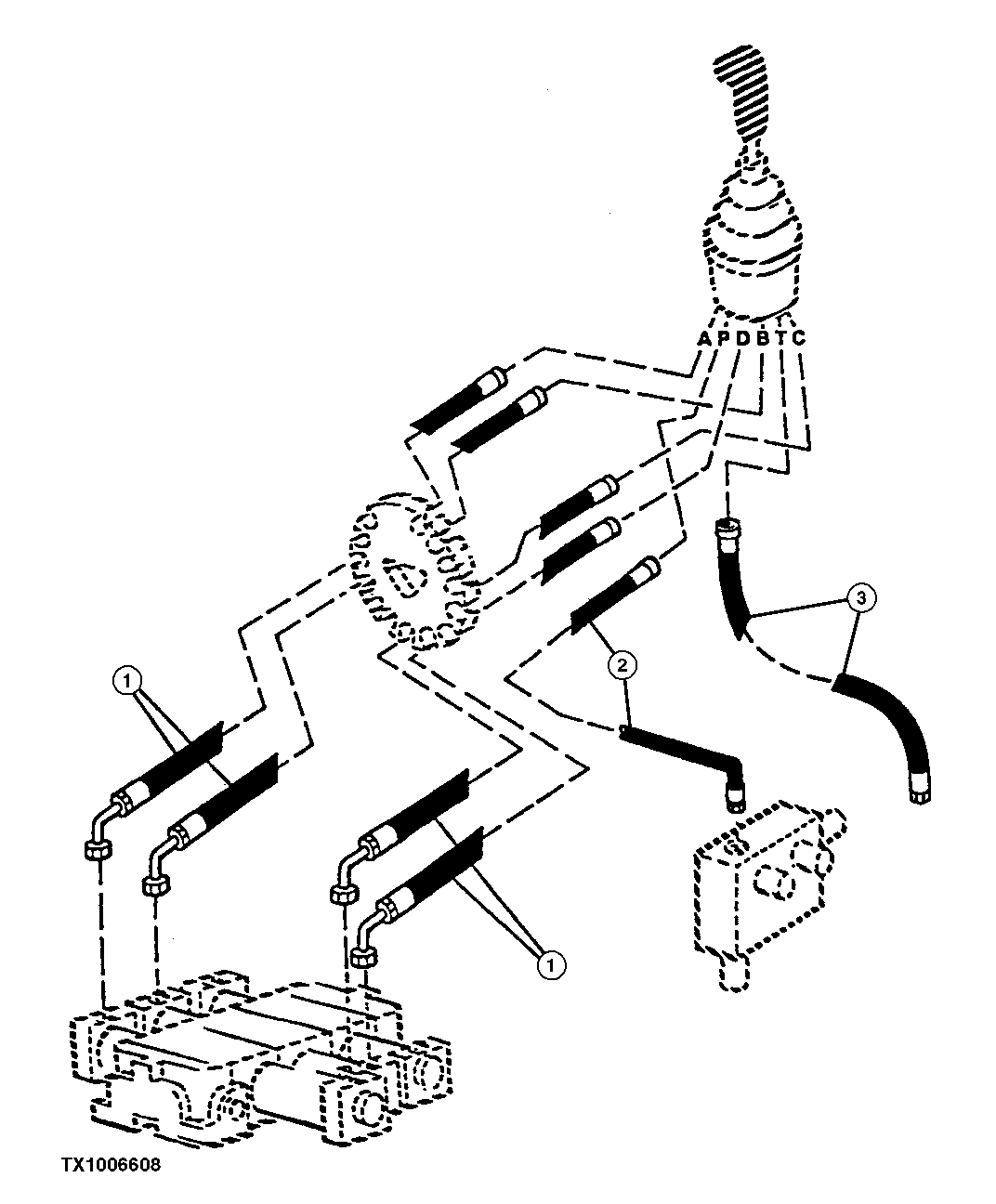

SINGLE LEVER PILOT CONTROLLER COMPONENTS (SN -590067) (CONTINUED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
27	-	1	Part 1	(SUB AT228702)
28	T170283	3	Electrical Coil	-
29	T170284	3	Retainer	-
30	T170278	1	Bushing	(BUCKET DUMP)
31	T170307	1	Back-Up Ring	-
32	T170306	1	Seal	-
33	T131617	2	Ring	-
34	AT208178	2	Retainer	Bucket Dump and Boom Raise
35	AT208179	2	Retainer	(BOOM LOWER AND BUCKET ROLL-BACK)
36	T170285	2	Plunger	-
37	T170286	2	Plunger	-
38	T103092	1	Shim	0.1 mm
39	T103093	1	Shim	0.2 mm
40	T103094	1	Shim	0.4 mm
41	AT208182	1	Spool	(BUCKET DUMP)
42	AT208181	1	Spool	(BOOM RAISE)
43	AT208183	1	Spool	(BOOM LOWER)
44	T170288	2	Spring	-
45	AT208180	2	Retainer Kit	-
46	T170289	2	Spring	-
47	T170287	2	Spring	-
48	-	1	Part 22	(SUB AT228702)
49	R26375	2	O-Ring	-
50	-	2	Part 24	(SUB AT228702)
51	-	2	Part 25	(SUB AT228702)
52	AT228702	1	Hydr./Pilot Control Valve	-
53	T171587	1	Label	-
54	R26448	6	O-Ring	-
55	38H1160	5	Adapter Fitting	-
56	T77613	6	O-Ring	-
57	38H1212	1	Adapter Fitting	-
58	AT224241	1	Plate	-
59	21M7285	4	Screw	M6 X 12
60	14M7397	3	Lock Nut	M6
61	14H849	1	Nut	7/16"
62	AT209789	1	Spool	(BUCKET ROLL-BACK) USE WITH TOOL CARRIER AND LOG LOADER
63	AT210376	1	Hose Kit	-
90	AT104041	1	Seal Kit	(ALSO ORDER AT115876)
91	AT209784	1	Grip	Grip With Kickdown Plate
92	AT209788	1	Coil Kit	Coil
93	AT209779	1	Seal Kit	Single Lever Seal Kit

SINGLE LEVER PILOT CONTROLLER COMPONENTS (SN -590067) (CONTINUED)
