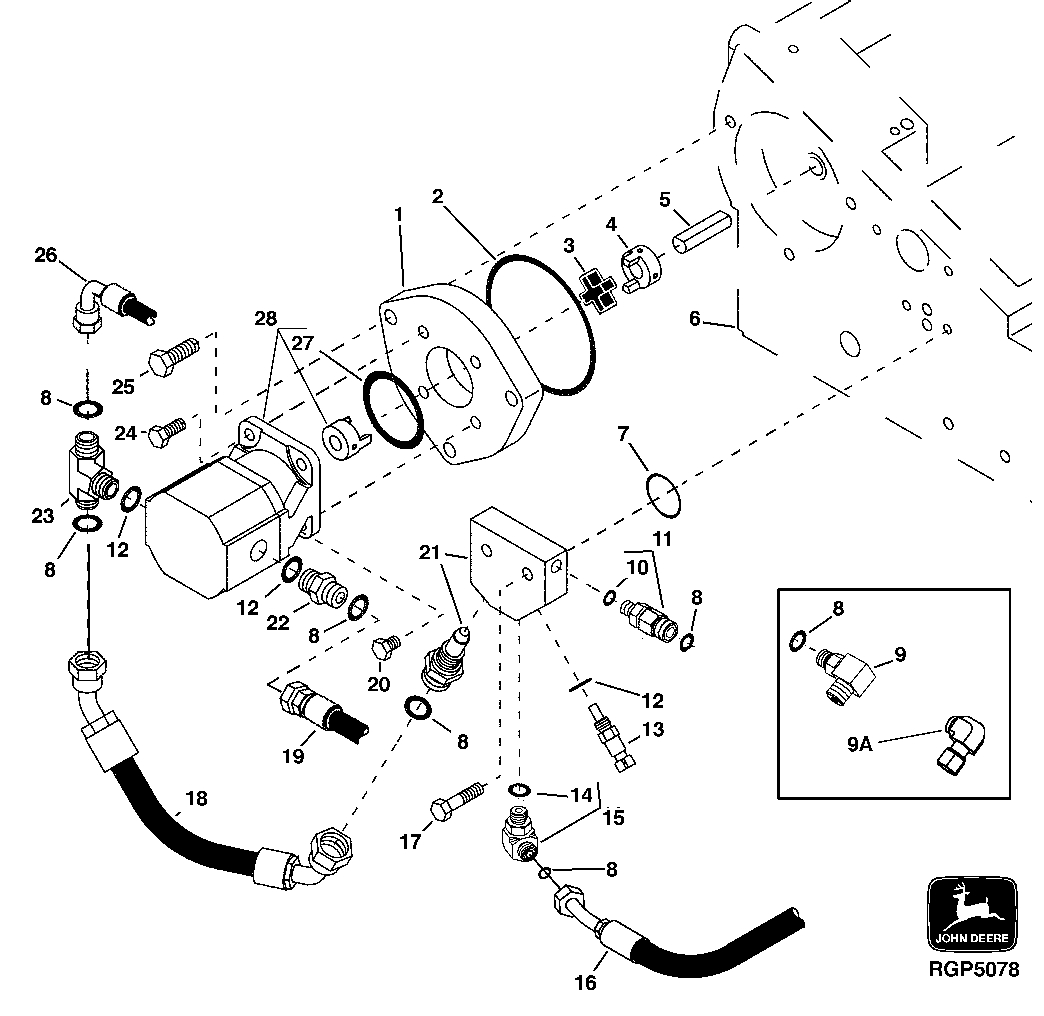

FUEL TRANSFER PUMP AND FUEL MANIFOLD (ADW)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R117063	1	Bracket	-
2	R500318	1	O-Ring	(SUB FOR R133959)
3	R545594	1	Spider	(SUB FOR R502027 AND R117022)
4	R117021	1	Coupling	-
5	R117020	1	Shaft	-
6	-	1	Part 6	-
7	T77072	1	O-Ring	-
8	T77613	7	O-Ring	-
9	RE500228	1	Check Valve	(SUB RE502159, 38H1094 AND T77613)
10	51M7041	1	O-Ring	11.300 X 2.200 mm
11	RE503527	1	Check Valve	(SUB FOR RE502159)
12	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64"), 11.300 X 2.200 MM
13	RE48419	1	Sensor	(SUB FOR RE52722, THIS APPLICATION)(FUEL TEMPERATURE)
14	51M7041	2	O-Ring	11.300 X 2.200 mm
15	38H5016	1	Elbow Fitting	-
16	RE504314	1	Hydraulic Hose	MANIFOLD INLET), (SUB FOR RE66717, RE504305 OR RE504303)
17	19M8318	2	Screw	M8 X 45
18	RE66718	1	Fuel Line	(FUEL MANIFOLD TO TRANSFER PUMP), (SUB RE504311)
18	RE504309	1	Fuel Line	(SUB RE504311, THIS APPLICATION)
18	RE504311	1	Hose	-
19	RE504313	1	Hydraulic Hose	(TRANSFER PUMP TO SECONDARY FILTER INLET), (SUB FOR RE66716, RE500577, RE501096 OR RE504304)
20	19M7865	2	Screw	M8 X 16, (LOWER)
21	R502033	1	Screen	-
21	RE501504	1	Manifold	(INCLUDES PRESSURE REGULATING VALVE)
21	RE71261	1	Manifold	(INCLUDES PRESSURE REGULATING VALVE), (SUB RE501504)
22	38H1160	1	Adapter Fitting	-
23	38H1016	1	Tee Fitting	-
24	19M7867	2	Screw	M8 X 25, (UPPER)
25	19M7835	3	Screw	M10 X 35
26	RE505547	1	Hydraulic Hose	(TRANSFER PUMP TO PRIMARY FUEL FILTER), (SUB FOR RE66715, RE504306 OR RE504587)
27	T35580	1	O-Ring	-
28	RE66584	1	Fuel Pump	(SUB RE502974)
28	RE502974	1	Fuel Pump	-
9A	38H1094	1	Elbow Fitting	-

FUEL TRANSFER PUMP AND FUEL MANIFOLD (ADW)
