Открытый узел

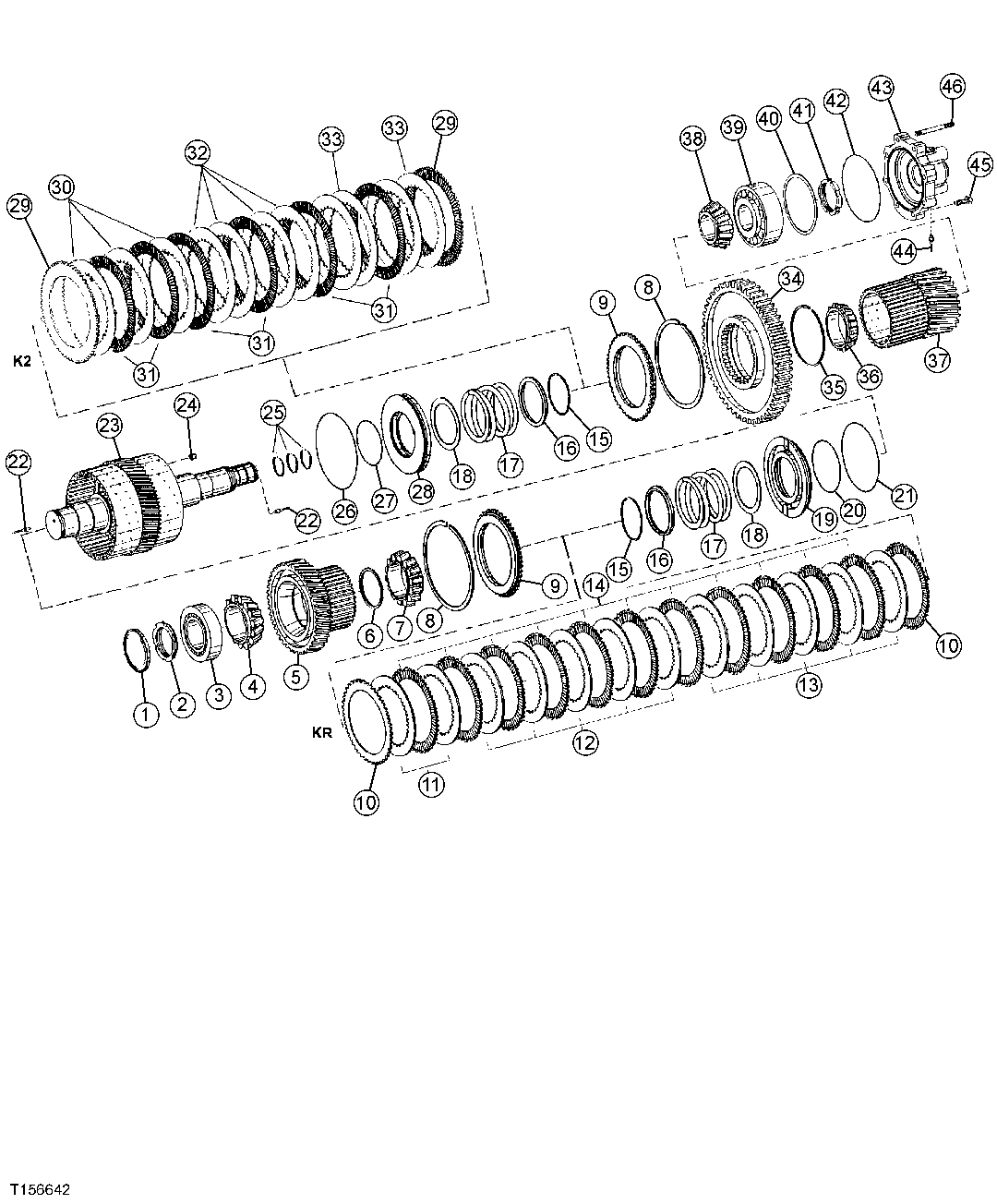

CLUTCH ASSEMBLY (REVERSE AND K2) (SN 586280- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T168754	1	Cover	-
2	T226531	1	Nut	(SUB FOR T195013)
3	T195012	1	Ball Bearing	-
4	T195011	1	Tapered Roller Bearing	-
5	T195008	1	Spur Gear	-
6	T195010	1	O-Ring	-
7	T195009	1	Tapered Roller Bearing	-
8	T179603	2	Snap Ring	-
8	T169086	2	Snap Ring	-
8	T169760	2	Ring	(2.95 MM) ( T169760 NLA)
8	T169760	2	Ring	(SUB FOR T169088)(2.95 MM)
8	T179602	2	Snap Ring	-
8	T179600	2	Snap Ring	( T179601 NLA)
8	T179600	2	Snap Ring	-
8	T170706	2	Snap Ring	-
8	T169093	2	Snap Ring	-
8	T169092	2	Snap Ring	-
8	T169091	2	Snap Ring	-
8	T169090	2	Snap Ring	-
8	T169089	2	Snap Ring	-
8	T169758	2	Ring	-
8	T169759	2	Ring	-
8	T169760	2	Ring	-
8	T169094	2	Snap Ring	-
9	T181737	2	End Plate	-
10	T169604	2	Disk With Outer Spline	-
11	T205647	2	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
11	T205646	2	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T195006)
12	T205647	5	Disk With Inner Spline	(SUB FOR T195007)
13	T205646	5	Disk With Inner Spline	(SUB FOR T195006)
14	T196794	11	Disk	-
15	T169618	2	Snap Ring	-
16	T181434	2	Ring	-
17	T169709	2	Compression Spring	-
18	T181433	2	Washer	-
19	T182778	1	Piston	-
20	T169036	1	O-Ring	-
21	T169034	1	O-Ring	-
22	T182775	3	Plug	-
23	T182800	1	Drum	-
24	T176801	2	Flow Control Hyd. Valve	-
25	T169017	3	Piston Ring	-
26	T168697	1	O-Ring	-
27	T168692	1	O-Ring	-
28	T195003	1	Piston	-
29	T169604	2	Disk With Outer Spline	-
30	T169754	3	Disk With Inner Spline	-
31	T169603	6	Disk With Outer Spline	-
32	T205646	6	Disk With Inner Spline	(SUB FOR T169751 OR T225916)
33	T205646	2	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
33	T169754	2	Disk With Inner Spline	4.0 MM (.157")
33	T225918	2	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
33	T205647	2	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T169752 OR T225917)
34	T195014	1	Spur Gear	-
35	T169030	1	Snap Ring	-
36	T195016	1	Bearing Cup	-
37	T195015	1	Gear	-
38	T195017	1	Tapered Roller Bearing	-
39	T195018	1	Ball Bearing	-
40	T168830	1	Solid Shim	-
40	T168840	1	Solid Shim	-
40	T168839	1	Solid Shim	-
40	T168838	1	Solid Shim	-
40	T168837	1	Solid Shim	-
40	T168836	1	Solid Shim	-
40	T168835	1	Solid Shim	-
40	T168834	1	Solid Shim	-
40	T168833	1	Solid Shim	-
40	T168832	1	Solid Shim	-
40	T168831	1	Solid Shim	-
41	T226529	1	Nut	(SUB FOR T195019)
42	T170126	1	O-Ring	-
43	T195022	1	Cover	-
44	T182775	2	Plug	-
45	19M8637	6	Cap Screw	M10 X 40
46	T195114	2	Stud	-

CLUTCH ASSEMBLY (REVERSE AND K2) (SN 586280- )
