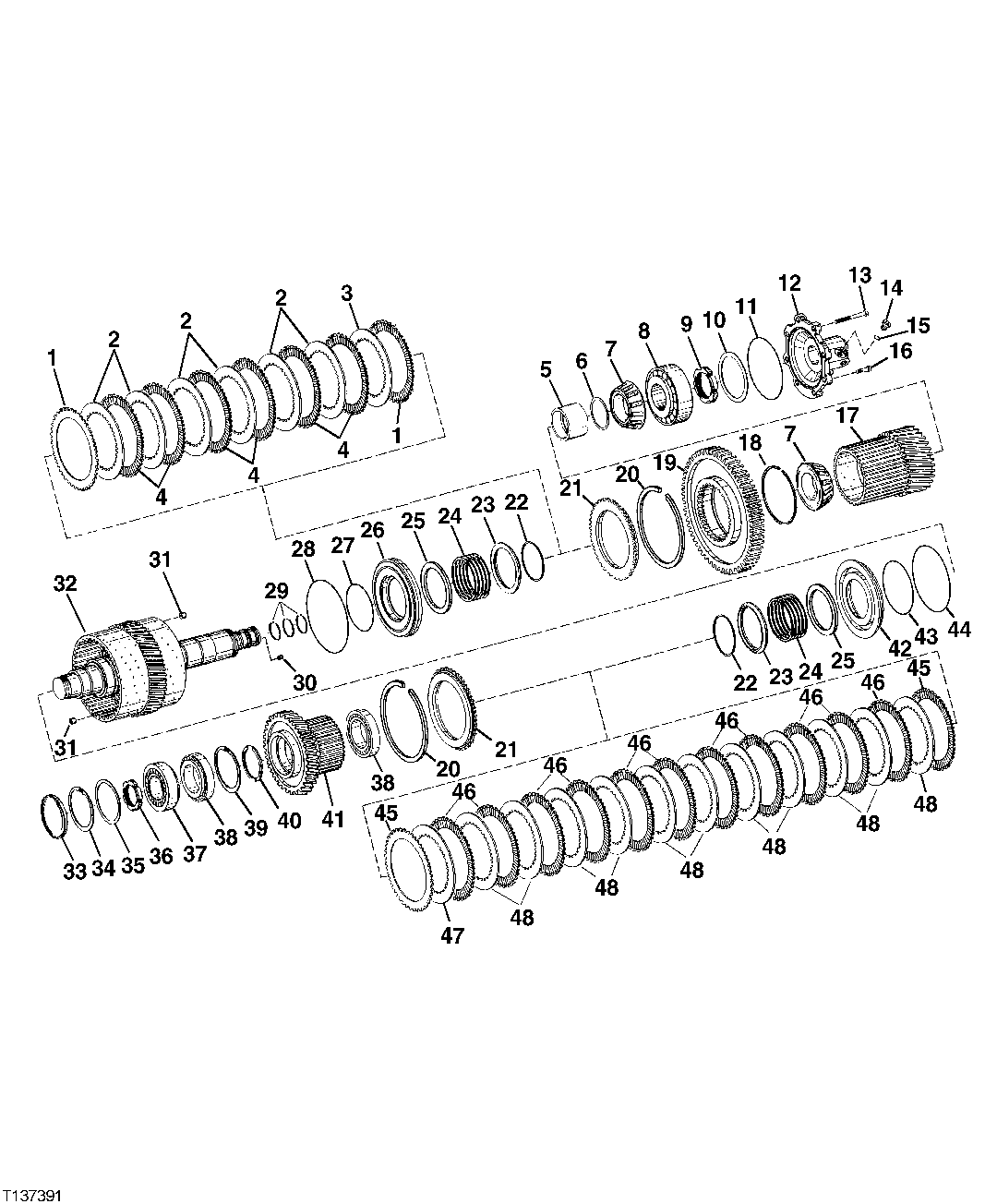

CLUTCH ASSEMBLY (REVERSE AND K2) (SN -586279)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T169604	2	Disk With Outer Spline	-
2	T225918	6	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
3	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
3	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
3	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
3	T169754	1	Disk With Inner Spline	4.0 MM (.157")
4	T169603	6	Disk With Outer Spline	-
5	T168752	1	Bushing	-
6	T168880	1	Solid Shim	3.9 MM (.154")
6	T168881	1	Shim	4.0 MM (.157")
6	T168879	1	Solid Shim	3.8 MM (.150")
6	T168878	1	Solid Shim	3.7 MM (.146")
6	T168877	1	Solid Shim	3.6 MM (.142")
7	T168915	2	Bearing	-
8	T168913	1	Tapered Roller Bearing	-
9	T168800	1	Nut	-
10	T168835	1	Solid Shim	1.5 MM (.059")
10	T168840	1	Solid Shim	2.0 MM (.079")
10	T168839	1	Solid Shim	1.9 MM (.075")
10	T168838	1	Solid Shim	1.8 MM (.071")
10	T168837	1	Solid Shim	1.7 MM (.067")
10	T168836	1	Solid Shim	1.6 MM (.063")
10	T168834	1	Solid Shim	1.4 MM (.055")
10	T168833	1	Solid Shim	1.3 MM (.051")
10	T168832	1	Solid Shim	1.2 MM (.047")
10	T168831	1	Solid Shim	1.1 MM (.043')
10	T168830	1	Solid Shim	1.0 MM (.039")
11	T170126	1	O-Ring	-
12	T168753	1	Cover	-
13	19M8183	2	Cap Screw	M10 X 90
14	R53869	2	Drain Plug	-
15	T116416	2	O-Ring	-
16	19M7168	6	Cap Screw	M10 X 30
17	T169081	1	Gear	-
18	T169030	1	Snap Ring	-
19	T169082	1	Spur Gear	-
20	T179603	2	Snap Ring	2.35 MM (.093")
20	T179602	2	Snap Ring	2.25 MM (.089")
20	T179600	2	Snap Ring	2.15 MM (.085") ( T179601 NLA)
20	T179600	2	Snap Ring	2.10 MM (.083")
20	T170706	2	Snap Ring	2.45 MM (.096")
20	T169086	2	Snap Ring	3.10 MM (.122")
20	T169094	2	Snap Ring	2.55 MM (.100")
20	T169092	2	Snap Ring	2.65 MM (.104")
20	T169093	2	Snap Ring	2.60 MM (.102")
20	T169760	2	Ring	2.95 MM (.116")
20	T169759	2	Ring	2.90 MM (.114")
20	T169758	2	Ring	2.85 MM (.112")
20	T169090	2	Snap Ring	2.75 MM (.108")
20	T169091	2	Snap Ring	2.70 MM (.106")
20	T169089	2	Snap Ring	2.80 MM (.110")
21	T181737	2	End Plate	-
22	T169618	2	Snap Ring	-
23	T181434	2	Ring	-
24	T169709	2	Compression Spring	-
25	T181433	2	Washer	-
26	T168746	2	Piston	-
27	T168692	1	O-Ring	-
28	T168697	1	O-Ring	-
29	T169017	1	Piston Ring	-
30	T170122	2	Set Screw	-
31	T176801	2	Flow Control Hyd. Valve	-
32	T169734	1	Disk	-
33	T168750	1	Cover	-
34	T169617	1	Ring	-
35	T168812	1	Ring	-
36	T168822	1	Nut	-
37	T168911	1	Tapered Roller Bearing	-
38	T168910	2	Tapered Roller Bearing	-
39	40M7045	1	Snap Ring	-
40	T168853	1	Solid Shim	4.4 MM (.173")
40	T168852	1	Solid Shim	4.3 MM (.169")
40	T168851	1	Solid Shim	4.2 MM (.165")
40	T168850	1	Solid Shim	4.1 MM (.161")
40	T168849	1	Solid Shim	4.0 MM (.157")
40	T168848	1	Solid Shim	3.9 MM (.153")
40	T168847	1	Solid Shim	3.8 MM (.150")
40	T168846	1	Solid Shim	3.6 MM (.142")
40	T181429	1	Shim	4.25MM(.167")
40	T181430	1	Shim	4.35MM(.171")
40	T181431	1	Shim	4.45MM(.175")
40	T181432	1	Shim	4.60MM(.180")
40	T168854	1	Solid Shim	4.5 MM (.177")
41	T168751	1	Spur Gear	-
42	T182778	1	Piston	-
43	T169036	1	O-Ring	-
44	T169034	1	O-Ring	-
45	T169604	2	Disk With Outer Spline	-
46	T169603	11	Disk With Outer Spline	-
47	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
47	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
47	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
47	T169754	1	Disk With Inner Spline	4.0 MM (.157")
47	-	1	Part 94	2.0 MM (.079"), ( <service-part>T173734</service-part> NO LONGER REQUIRED)
48	T205646	11	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
48	T205646	12	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T195006)

CLUTCH ASSEMBLY (REVERSE AND K2) (SN -586279)
