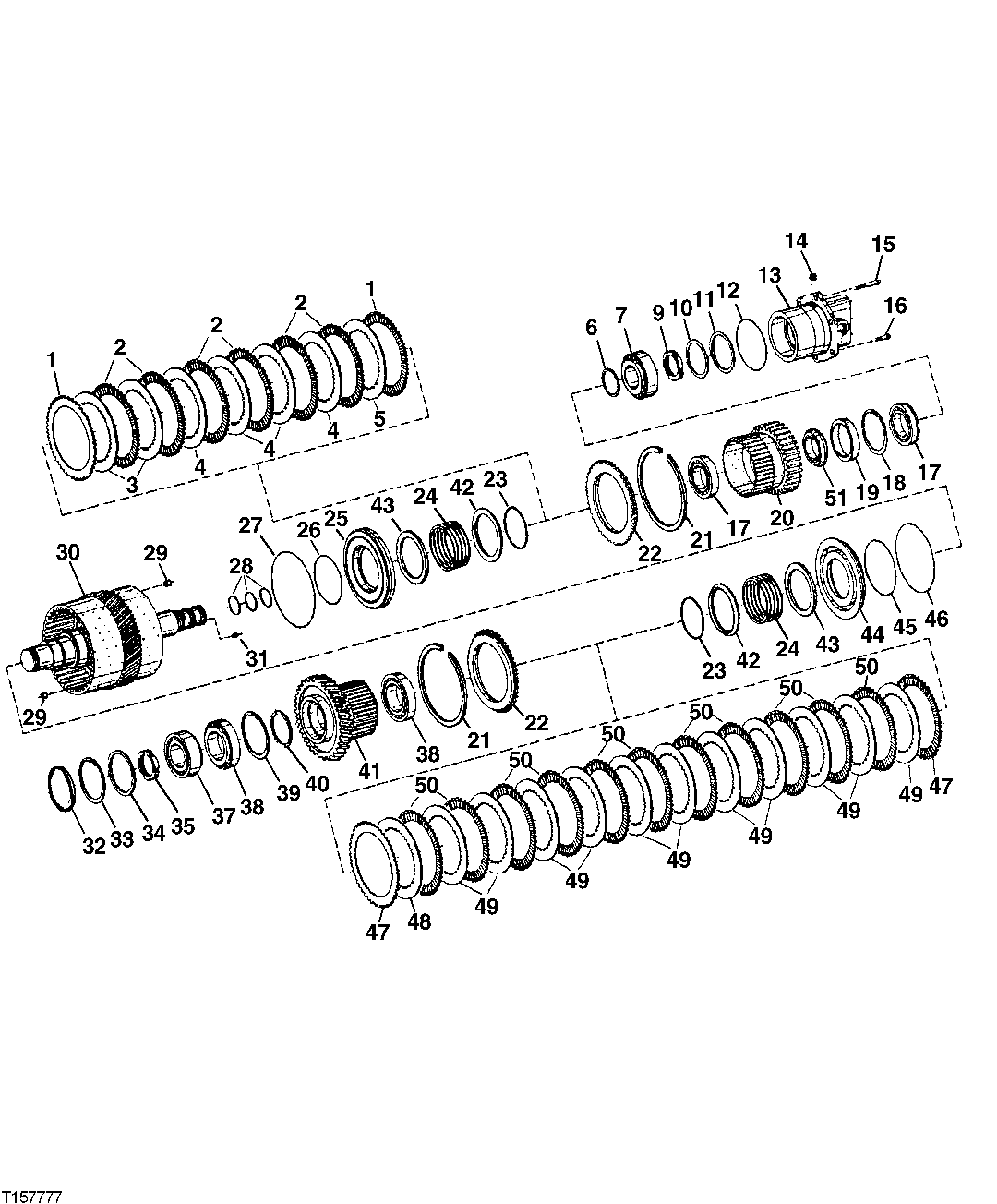

CLUTCH ASSEMBLY (LOW RANGE FORWARD) (SN -586279)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T169604	2	Disk With Outer Spline	-
2	T169603	6	Disk With Outer Spline	-
3	T205647	2	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
4	T225918	4	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
5	-	1	Part 9	2.0 MM (.079"), ( <service-part>T173734</service-part> NO LONGER REQUIRED)
5	T169754	1	Disk With Inner Spline	4.0 MM (.157")
5	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
5	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
5	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
6	T169058	1	Spacer	-
7	T168776	1	Bearing	-
9	T168802	1	Nut	-
10	T177395	1	Solid Shim	21.60 MM (.85")
10	T196756	1	Shim	0.75MM
10	T177394	1	Solid Shim	24.15 MM (.95")
10	T169051	1	Solid Shim	0.2 MM (.008")
10	T169050	1	Solid Shim	3.0 MM (.118")
10	T169054	1	Solid Shim	0.9 MM (.035")
10	T169053	1	Solid Shim	1.0 MM (.039")
10	T169052	1	Solid Shim	1.2 MM (.047")
10	T169640	1	Shim	2.0 MM (.079")
10	T169641	1	Shim	1.5 MM (.059")
10	T169049	1	Solid Shim	0.5 MM (.020")
11	T168743	1	Ring	-
12	T168705	1	O-Ring	-
13	T168744	1	Cover	-
14	T170138	2	Plug	-
15	19M7875	2	Cap Screw	M10 X 70
16	19M7402	4	Cap Screw	M10 X 25
17	T168900	2	Ball Bearing	-
18	40M7118	1	Snap Ring	-
19	T169747	1	Ring	14.1 MM (.555")
19	T169748	1	Ring	14.2 MM (.559")
19	T168738	1	Ring	14.3 MM (.562")
20	T168749	1	Gear	-
21	T179603	2	Snap Ring	2.35 MM (.092")
21	T179602	2	Snap Ring	2.25 MM (.088")
21	T179600	2	Snap Ring	2.15 MM (.084") ( <service-part>T179601</service-part> NLA)
21	T179600	2	Snap Ring	2.10 MM (.082")
21	T170706	2	Snap Ring	2.55 MM (.100")
21	T169094	2	Snap Ring	-
21	T169093	2	Snap Ring	2.60 MM (.102")
21	T169091	2	Snap Ring	2.70 MM (.106")
21	T169090	2	Snap Ring	2.75 MM (.108")
21	T169089	2	Snap Ring	2.80 MM (.110")
21	T169758	2	Ring	2.85 MM (.112")
21	T169759	2	Ring	2.90 MM (.114")
21	T169760	2	Ring	2.95 MM (.116")
21	T169092	2	Snap Ring	2.65 MM (.104")
22	T181737	2	End Plate	-
23	T169618	2	Snap Ring	-
24	T169709	2	Compression Spring	-
25	T168746	1	Piston	-
26	T168692	1	O-Ring	-
27	T168697	1	O-Ring	-
28	T169017	3	Piston Ring	-
29	T176801	2	Flow Control Hyd. Valve	-
30	T169733	1	Drum	-
31	T170122	2	Set Screw	-
32	T168754	1	Cover	-
33	T170125	1	Ring	-
34	T169652	1	Ring	-
35	T168802	1	Nut	-
37	T168916	1	Bearing	-
38	T168910	2	Tapered Roller Bearing	-
39	40M7045	1	Snap Ring	-
40	T181432	1	Shim	4.60MM(.180")
40	T181431	1	Shim	4.45MM(.175")
40	T168852	1	Solid Shim	4.3 MM (.169")
40	T181430	1	Shim	4.35MM(.171")
40	T181429	1	Shim	4.25MM(.167")
40	T168846	1	Solid Shim	3.6 MM (.142")
40	T168847	1	Solid Shim	3.8 MM (.150")
40	T168849	1	Solid Shim	4.0 MM (.157")
40	T168850	1	Solid Shim	4.1 MM (.161")
40	T168851	1	Solid Shim	4.2 MM (.165")
40	T168853	1	Solid Shim	4.4 MM (.173")
40	T168854	1	Solid Shim	4.5 MM (.177")
40	T168848	1	Solid Shim	3.9 MM (.153")
41	T168751	1	Spur Gear	-
42	T181434	2	Ring	-
43	T181433	2	Washer	-
44	T182778	1	Piston	-
45	T169036	1	O-Ring	-
46	T169034	1	O-Ring	-
47	T169604	2	Disk With Outer Spline	-
48	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
48	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
48	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
48	T169754	1	Disk With Inner Spline	4.0 MM (.157")
48	-	1	Part 91	2.0 MM (.079"), ( <service-part>T173734</service-part> NLA)
49	T205646	11	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
50	T169603	11	Disk With Outer Spline	-
51	T169066	1	Ring	-

CLUTCH ASSEMBLY (LOW RANGE FORWARD) (SN -586279)
