Открытый узел

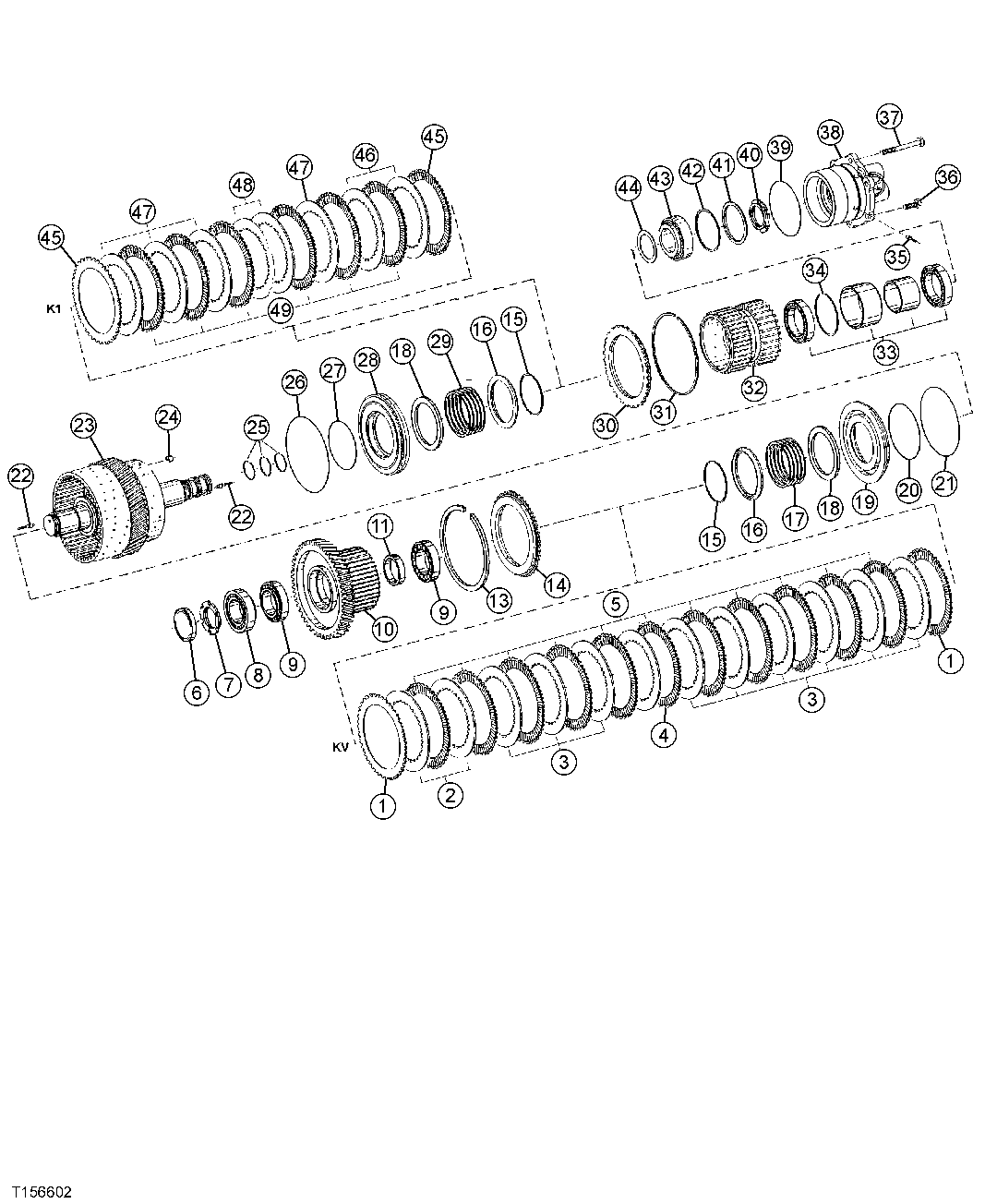

CLUTCH ASSEMBLY (LOW RANGE FORWARD) (K1 & KV) (SN 586280- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T169604	2	Disk With Outer Spline	-
2	T205646	2	Disk With Inner Spline	2.5 MM (.098"), SUB FOR T169751 OR T225916
2	T169754	2	Disk With Inner Spline	4.0 MM (.157")
2	T205647	2	Disk With Inner Spline	3.0 MM (.118"), SUB FOR T169752 OR T225917
2	T225918	2	Clutch Disk	3.5 MM (.138"), SUB FOR T169753
3	T225918	9	Clutch Disk	SUB FOR T169753
4	T169754	1	Disk With Inner Spline	-
5	T169603	11	Disk With Outer Spline	-
6	T182791	1	Cover	-
7	T226530	1	Nut	SUB FOR T182790
8	T182761	1	Tapered Roller Bearing	-
9	T182761	2	Tapered Roller Bearing	-
10	T182786	1	Spur Gear	-
11	T182788	1	Ring	-
13	T169094	1	Snap Ring	-
13	T170706	1	Snap Ring	-
13	T179600	1	Snap Ring	-
13	T179600	1	Snap Ring	T179601 NLA
13	T179602	1	Snap Ring	-
13	T179603	1	Snap Ring	-
13	T169760	1	Ring	SUB FOR T169088, 2.95MM
13	T169760	1	Ring	T169760 NLA
13	T169086	1	Snap Ring	-
13	T169092	1	Snap Ring	-
13	T169091	1	Snap Ring	-
13	T169090	1	Snap Ring	-
13	T169089	1	Snap Ring	-
13	T169758	1	Ring	-
13	T169759	1	Ring	-
13	T169760	1	Ring	-
13	T169093	1	Snap Ring	-
14	T181737	1	End Plate	-
15	T169618	2	Snap Ring	-
16	T181434	2	Ring	-
17	T169709	1	Compression Spring	-
18	T181433	2	Washer	-
19	T182778	1	Piston	-
20	T169036	1	O-Ring	-
21	T169034	1	O-Ring	-
22	T182775	3	Plug	-
23	T182775	3	Plug	-
23	-	1	Part 41	T182776 NLA; ORDER AT492143
23	AT492143	1	Drum	INCLUDES (3) T182775
24	T176801	2	Flow Control Hyd. Valve	-
25	T169017	3	Piston Ring	-
26	T173959	1	O-Ring	-
27	T196822	1	O-Ring	-
28	T182779	1	Piston	-
29	T182781	1	Compression Spring	-
30	T182780	1	End Plate	-
31	T196828	1	Snap Ring	2.2 MM
31	T196829	1	Snap Ring	2.1 MM
31	T196827	1	Snap Ring	2.4 MM
31	T196826	1	Snap Ring	2.3 MM
31	T116909	1	Snap Ring	2.5 MM
32	T182792	1	Gear	-
33	T182793	1	Ball Bearing	-
34	T182774	1	Snap Ring	-
35	T182775	2	Plug	-
36	19M7879	4	Cap Screw	M10 X 28
37	19M2875	2	Cap Screw	M10 X 75
38	T182789	1	Cover	-
39	T196852	1	O-Ring	-
40	T226530	1	Nut	SUB FOR T182790
41	T168743	1	Ring	-
42	T169049	1	Solid Shim	0.5 MM
42	T169051	1	Solid Shim	0.2 MM
42	T169050	1	Solid Shim	0.3 MM
42	T169640	1	Shim	2.0 MM
42	T169641	1	Shim	1.5 MM
42	T169052	1	Solid Shim	1.2 MM
42	T169053	1	Solid Shim	1.0 MM
42	T177394	1	Solid Shim	.95 MM
42	T169054	1	Solid Shim	.9 MM
42	T177395	1	Solid Shim	.85 MM
42	T196756	1	Shim	.75 MM
43	T168776	1	Bearing	-
44	T182777	1	Washer	-
45	T182785	2	Disk	-
46	T196011	2	Plate	35 MM
46	T196012	2	Plate	30 MM
47	T182782	6	Plate	-
48	T182783	4	Plate	-
49	T182784	6	Disk	-

CLUTCH ASSEMBLY (LOW RANGE FORWARD) (K1 & KV) (SN 586280- )
