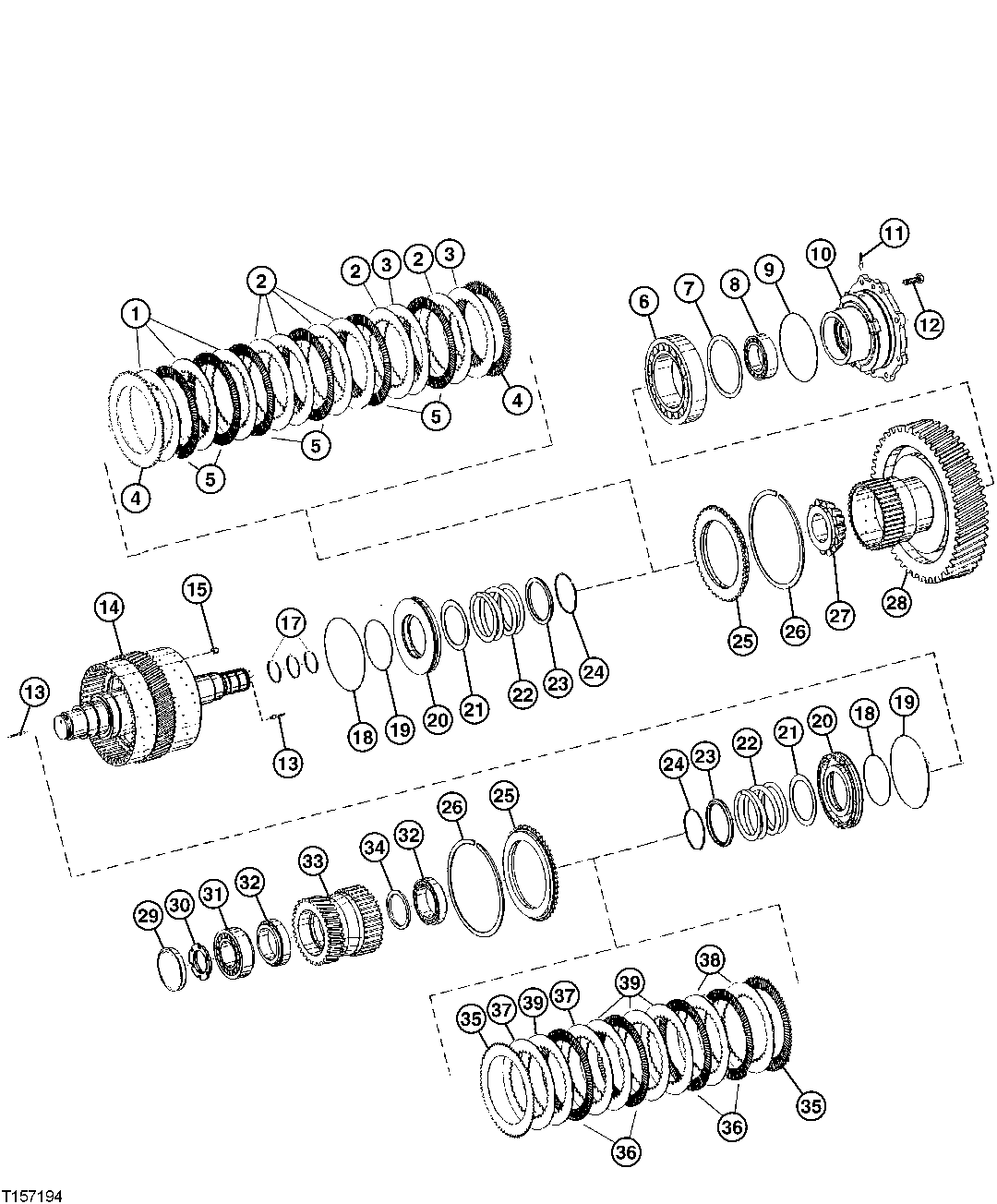

CLUTCH ASSEMBLY (HIGH RANGE FORWARD AND K3) (SN 586280- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T169754	3	Disk With Inner Spline	4.0 MM
2	T205646	6	Disk With Inner Spline	2.5 MM, (SUB FOR T169751 OR T225916)
3	T205647	2	Disk With Inner Spline	3.0 MM, (SUB FOR T169752 OR T225917)
3	T225918	2	Clutch Disk	3.5 MM, (SUB FOR T169753)
3	T169754	2	Disk With Inner Spline	4.0 MM
3	T205646	2	Disk With Inner Spline	2.5 MM, (SUB FOR T169751 OR T225916)
4	T169604	2	Disk With Outer Spline	-
5	T169603	6	Disk With Outer Spline	-
6	T195041	1	Ball Bearing	-
7	T196836	1	Washer	-
7	T196838	1	Washer	-
7	T196837	1	Washer	-
7	T196824	1	Washer	-
7	T196823	1	Washer	-
8	T195042	1	Ball Bearing	-
9	T195115	1	O-Ring	-
10	T195044	1	Cover	-
11	T182775	2	Plug	-
12	19M7168	8	Cap Screw	M10 X 30
13	T182775	3	Plug	-
14	T195024	1	Drum	-
15	T176801	2	Flow Control Hyd. Valve	-
17	T169017	3	Piston Ring	-
18	T168697	2	O-Ring	-
19	T168692	2	O-Ring	-
20	T195003	2	Piston	-
21	T181433	2	Washer	-
22	T169709	2	Compression Spring	-
23	T181434	2	Ring	-
24	T169618	2	Snap Ring	-
25	T181737	2	End Plate	-
26	T169086	2	Snap Ring	3.10 MM
26	T169759	2	Ring	2.9 MM
26	T169760	2	Ring	2.95 MM ( <service-part>T169087</service-part> NLA)
26	T169760	2	Ring	(SUB FOR <service-part qty="1">T169088</service-part>)2.95 MM
26	T179603	2	Snap Ring	2.35 MM
26	T179602	2	Snap Ring	2.25 MM
26	T179600	2	Snap Ring	2.15 MM ( <service-part>T179601</service-part> NLA)
26	T179600	2	Snap Ring	2.1 MM
26	T170706	2	Snap Ring	2.45 MM
26	T169093	2	Snap Ring	2.6 MM
26	T169092	2	Snap Ring	2.65 MM
26	T169091	2	Snap Ring	2.7 MM
26	T169090	2	Snap Ring	2.75 MM
26	T169089	2	Snap Ring	2.8 MM
26	T169758	2	Ring	2.85 MM
26	T169760	2	Ring	2.95 MM
26	T169094	2	Snap Ring	2.55 MM
27	AT255577	1	Tapered Roller Bearing	-
28	T195040	1	Spur Gear	-
29	T182791	1	Cover	-
30	T226530	1	Nut	(SUB FOR T182790)
31	T168916	1	Bearing	-
32	T195036	2	Tapered Roller Bearing	-
33	T195023	1	Helical Gear	-
34	T205629	1	Washer	(SUB FOR T195037, THIS APPLICATION)
35	T169604	2	Disk With Outer Spline	-
36	T169603	4	Disk With Outer Spline	-
37	T205646	2	Disk With Inner Spline	2.5 MM, (SUB FOR T169751 OR T225916)
37	T205647	2	Disk With Inner Spline	3.0 MM, (SUB FOR T169752 OR T225917)
37	T225918	2	Clutch Disk	3.5 MM, (SUB FOR T169753)
37	T169754	2	Disk With Inner Spline	4.0 MM
38	T169754	2	Disk With Inner Spline	4.0 MM
39	T205646	4	Disk With Inner Spline	2.5 MM, (SUB FOR T169751 OR T225916)

CLUTCH ASSEMBLY (HIGH RANGE FORWARD AND K3) (SN 586280- )
