Открытый узел

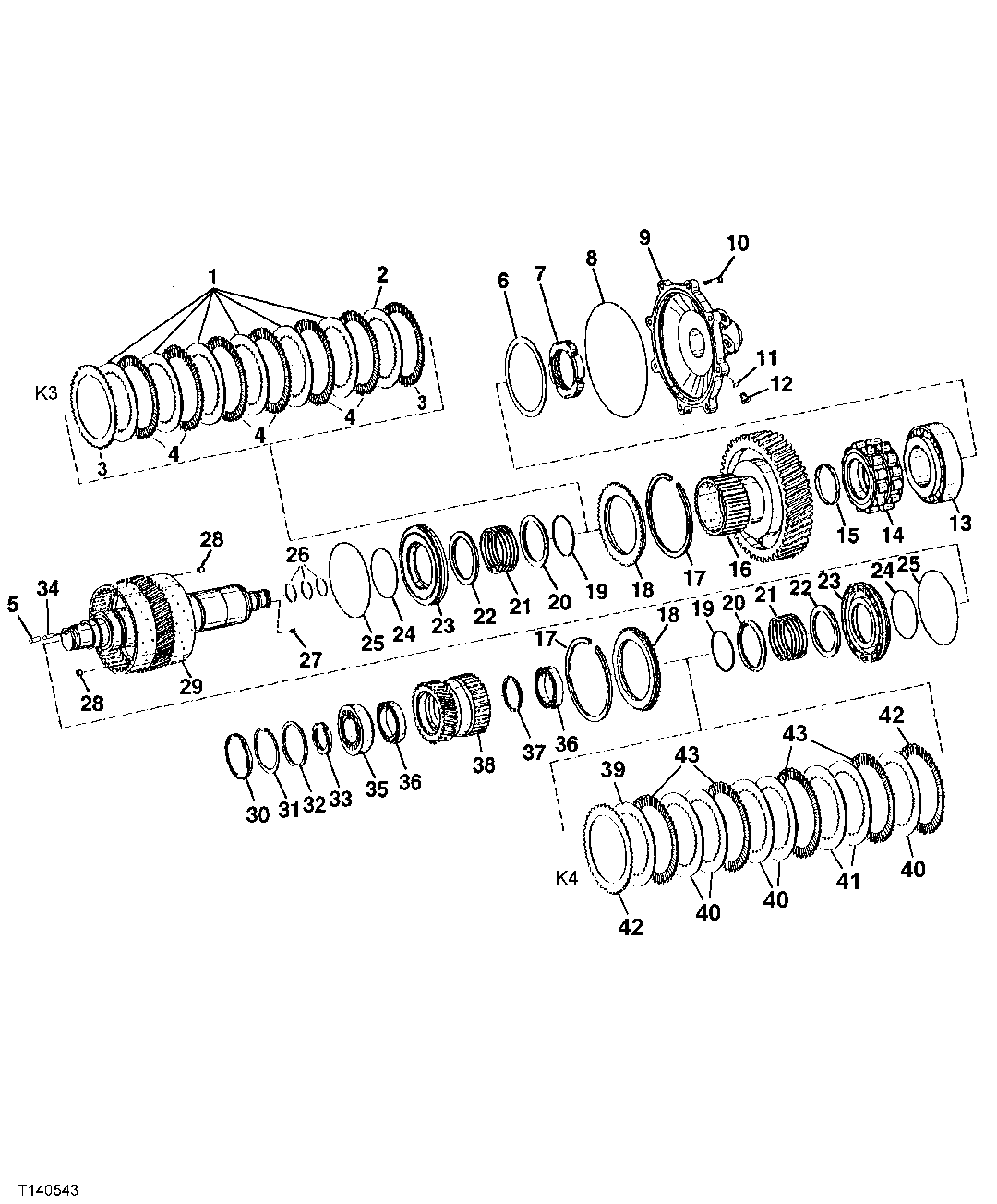

CLUTCH ASSEMBLY (HIGH RANGE FORWARD AND K3) (SN -586279)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T225918	6	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
2	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
2	T169754	1	Disk With Inner Spline	4.0 MM (.157")
2	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
2	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
3	T169604	2	Disk With Outer Spline	-
4	T169603	6	Disk With Outer Spline	-
5	T173737	1	Pin	-
6	T169661	1	Solid Shim	2.0 MM (.078")
6	T169660	1	Solid Shim	1.9 MM (.074")
6	T169651	1	Solid Shim	1.8 MM (.070")
6	T169659	1	Solid Shim	1.7 MM (.030")
6	T169658	1	Solid Shim	1.6 MM (.062")
6	T169657	1	Solid Shim	1.4 MM (.055")
6	T169656	1	Solid Shim	1.3 MM (.051")
6	T168829	1	Solid Shim	1.2 MM (.047")
6	T169655	1	Solid Shim	1.1 MM (.043")
6	T169654	1	Solid Shim	1.0 MM (.039")
6	T169650	1	Solid Shim	1.5 MM (.059")
7	T168801	1	Nut	-
8	T170189	1	O-Ring	-
9	T168757	1	Cover	-
10	19M7168	8	Cap Screw	M10 X 30
11	T116416	2	O-Ring	-
12	R53869	2	Drain Plug	-
13	T168917	1	Tapered Roller Bearing	-
14	T168918	1	Bearing	-
15	T169705	1	Ring	-
16	T169761	1	Spur Gear	-
17	T170706	2	Snap Ring	2.45 MM (.096")
17	T169094	2	Snap Ring	2.55 MM (.100")
17	T169093	2	Snap Ring	2.60 MM (.102")
17	T169092	2	Snap Ring	2.65 MM (.104")
17	T169091	2	Snap Ring	2.70 MM (.106")
17	T169089	2	Snap Ring	2.80 MM (.110")
17	T169090	2	Snap Ring	2.75 MM (.108")
17	T169760	2	Ring	2.95 MM (.116")
17	T169759	2	Ring	2.90 MM (.114")
17	T169758	2	Ring	2.85 MM (.112")
18	T181737	2	End Plate	-
19	T169618	2	Snap Ring	-
20	T181434	2	Ring	-
21	T169709	1	Compression Spring	-
22	T181433	2	Washer	(SUB FOR T170123)
23	T168746	2	Piston	-
24	T168692	2	O-Ring	-
25	T168697	2	O-Ring	-
26	T169017	3	Piston Ring	-
27	T170122	2	Set Screw	-
28	T176801	2	Flow Control Hyd. Valve	-
29	T173735	1	Drum	-
30	T168754	1	Cover	-
31	T170125	1	Ring	-
32	T169652	1	Ring	-
33	T173740	1	Nut	-
34	T173736	1	Pin	-
35	T168916	1	Bearing	-
36	T173739	2	Bearing	-
37	T179623	1	Solid Shim	5.0 MM (.197")
37	T179624	1	Solid Shim	5.5 MM (.217")
38	T173738	1	Spur Gear	-
39	T205646	1	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
39	T205647	1	Disk With Inner Spline	3.0 MM (.118"), (SUB FOR T195007)
39	T225918	1	Clutch Disk	3.5 MM (.138"), (SUB FOR T169753)
39	T169754	1	Disk With Inner Spline	4.0 MM (.157")
40	T169754	5	Disk With Inner Spline	4.0 MM (.157")
41	T205646	2	Disk With Inner Spline	2.5 MM (.098"), (SUB FOR T169751 OR T225916)
42	T169604	2	Disk With Outer Spline	-
43	T169603	4	Disk With Outer Spline	-

CLUTCH ASSEMBLY (HIGH RANGE FORWARD AND K3) (SN -586279)
