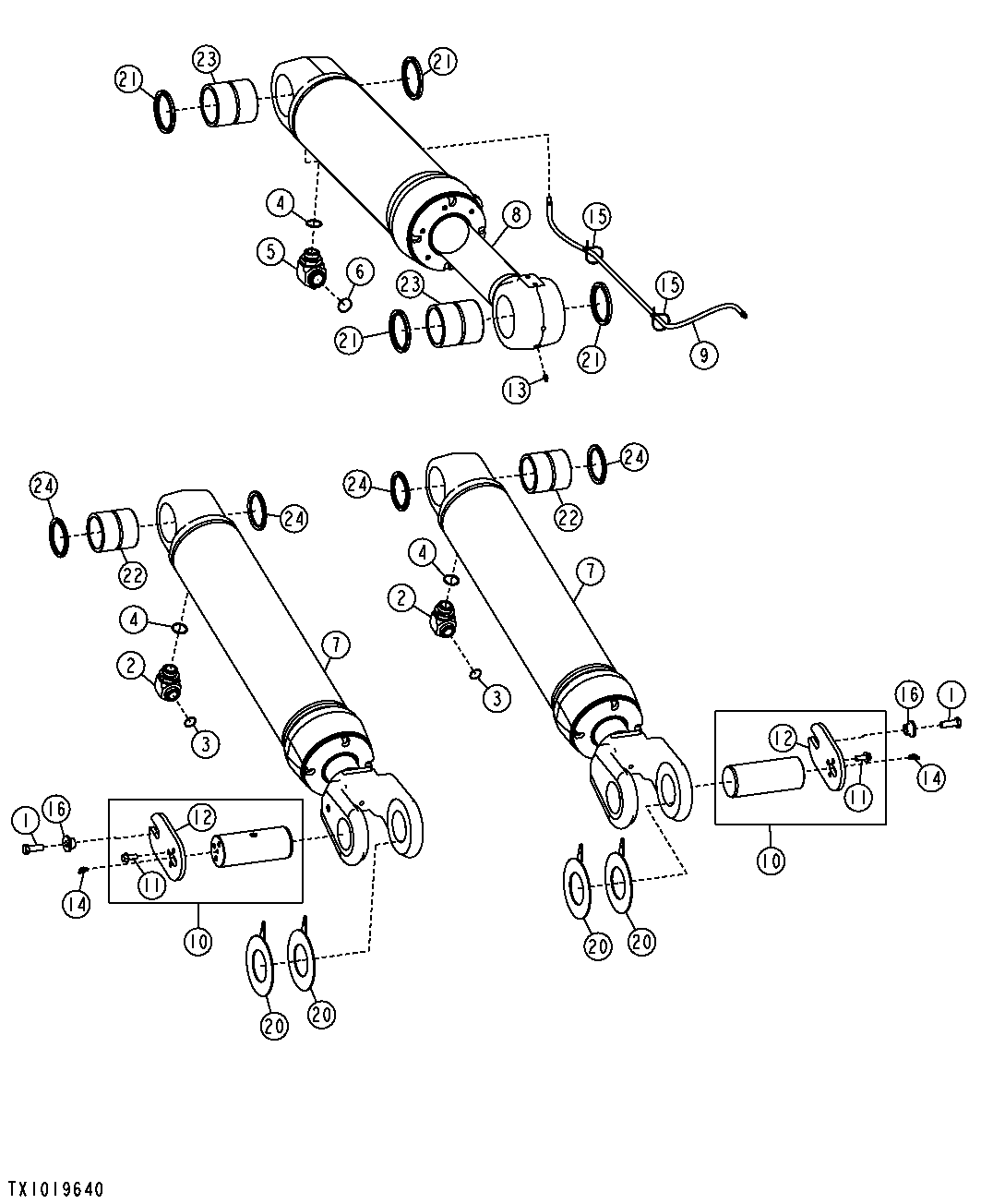

Boom and Bucket Cylinder Hoses and Fittings (STD.)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	4	Cap Screw	M16 X 45
2	38H1008	2	Elbow Fitting	-
3	T78612	2	O-Ring	-
4	U13639	2	O-Ring	-
5	38H1090	4	Elbow Fitting	-
6	T78784	4	O-Ring	-
7	AH175987	2	Hydraulic Cylinder	Components On Separate Page, ORDER AH222725
7	AH209531	2	Hydraulic Cylinder	Components On Separate Page, ORDER AH222725
7	AH225718	2	Hydraulic Cylinder	Components On Separate Page, ORDER AH222725
7	AH209531	2	Hydraulic Cylinder	Components On Separate Page
8	AH175986	1	Hydraulic Cylinder	Components On Separate Page, ORDER AH222726
8	AH209533	1	Hydraulic Cylinder	Components On Separate Page, ORDER AH222726
8	AH225660	1	Hydraulic Cylinder	Components On Separate Page, ORDER AH222726
8	-	1	Part 14	Components On Separate Page, AH222726 NLA; ORDER AHC18329 AND 19M7753
8	AHC18329	1	Hydraulic Cylinder	-
8	19M7753	4	Cap Screw	M12 X 70
9	AT103107	1	Grease Hose	-
10	AT353850	2	Pin	(SUB FOR AT223925)
11	19M7789	3	Screw	M12 X 30, (USE WITH AT223925)
11	19M8295	3	Cap Screw	M16 X 55, (USE WITH AT353850)
11	24M7097	3	Washer	17 X 28 X 2.500 mm, (USE WITH AT353850)
12	T180932	1	Plate	NLA; ORDER T242245
12	T242245	1	Plate	(USE WITH AT353850)
13	JD7759	2	Lubrication Fitting	-
14	JD7763	4	Lubrication Fitting	-
15	R44302	4	Tie Band	-
16	T176064	16	Bushing	-
20	T223721	4	Shim	-
21	T224659	4	Seal	-
22	T224794	2	Bushing	-
23	T224795	2	Bushing	-
24	T225572	4	Seal	-

Boom and Bucket Cylinder Hoses and Fittings (STD.)
