TIMING GEAR COVER, IDLER GEAR, FRONT PLATE, AND OIL FILL (013363 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R500212	1	Gasket	(SUB FOR R119155)
1	R119155	1	Gasket	(SUB R500212 AND (4) N102039)
2	RE501741	1	Plate	(WITH AUX DRIVE)
2	R500117	1	Plate	(WITHOUT AUX DRIVE), (SUB RE501740)
2	RE501740	1	Plate	(CONTAINS N102039 ) (MARKED R500117)(WITHOUT AUX DRIVE)
2	N102039	4	Plug	(CONTAINED IN RE501740and RE501741)
2	R128730	1	Plate	(WITH AUX DRIVE), (SUB RE501741)
3	R502026	1	V-Ring Seal	(USE WITH R502530)
4	19M8551	5	Screw	M10 X 25
5	R26333	1	Washer	-
6	19M7488	1	Cap Screw	M16 X 40
7	R116526	1	Gear	(CAMSHAFT)
8	R119575	1	Bushing	-
9	R116911	6	Cap Screw	-
10	19M7867	3	Screw	M8 X 25
11	R501309	1	Plate	(SUB FOR R119156)
12	RE53911	1	Spur Gear	(IDLER)
13	19M8738	3	Cap Screw	M10 X 45
14	R119157	1	Bearing Cup	-
15	R502530	1	Cover	(SUB R506150 AND (2) 19M8528)
15	R506150	1	Cover	-
16	19M7836	4	Screw	M10 X 110, (USE WITH R502530)
17	19M7786	2	Screw	M10 X 30
18	19M7812	6	Screw	M10 X 100
19	14M7296	1	Flange Nut	M10
20	R129809	1	Cover	(CAMSHAFT)
21	R502441	1	V-Ring Seal	(USE WITH R502530)
22	14M7296	4	Flange Nut	M10
23	R548888	1	Cover	SUB FOR R130937
24	R82459	1	O-Ring	-
25	19M7836	2	Screw	M10 X 110
25	19M8528	2	Screw	M10 X 55, (USE WITH R506150)
26	19M8528	7	Screw	M10 X 55
26	19M8114	1	Screw	M10 X 70, (4TH HOLE UP)
27	R119159	4	Bolt	-
28	R119159	1	Bolt	-
29	R120801	1	Dipstick Tube	-
30	RE500250	1	Filler Cap	-
31	T70176	1	O-Ring	(USE WITH R128730)
32	R126926	1	Cover	(USE WITH R128730)
33	19M7788	2	Screw	M12 X 25, (USE WITH R128730)
34	T74492	1	O-Ring	-
35	R131660	1	Drain Plug	-
36	R43696	3	Washer	-
..	R516898	1	Bracket	(SUB FOR R128802)
..	19M7898	2	Screw	M10 X 130

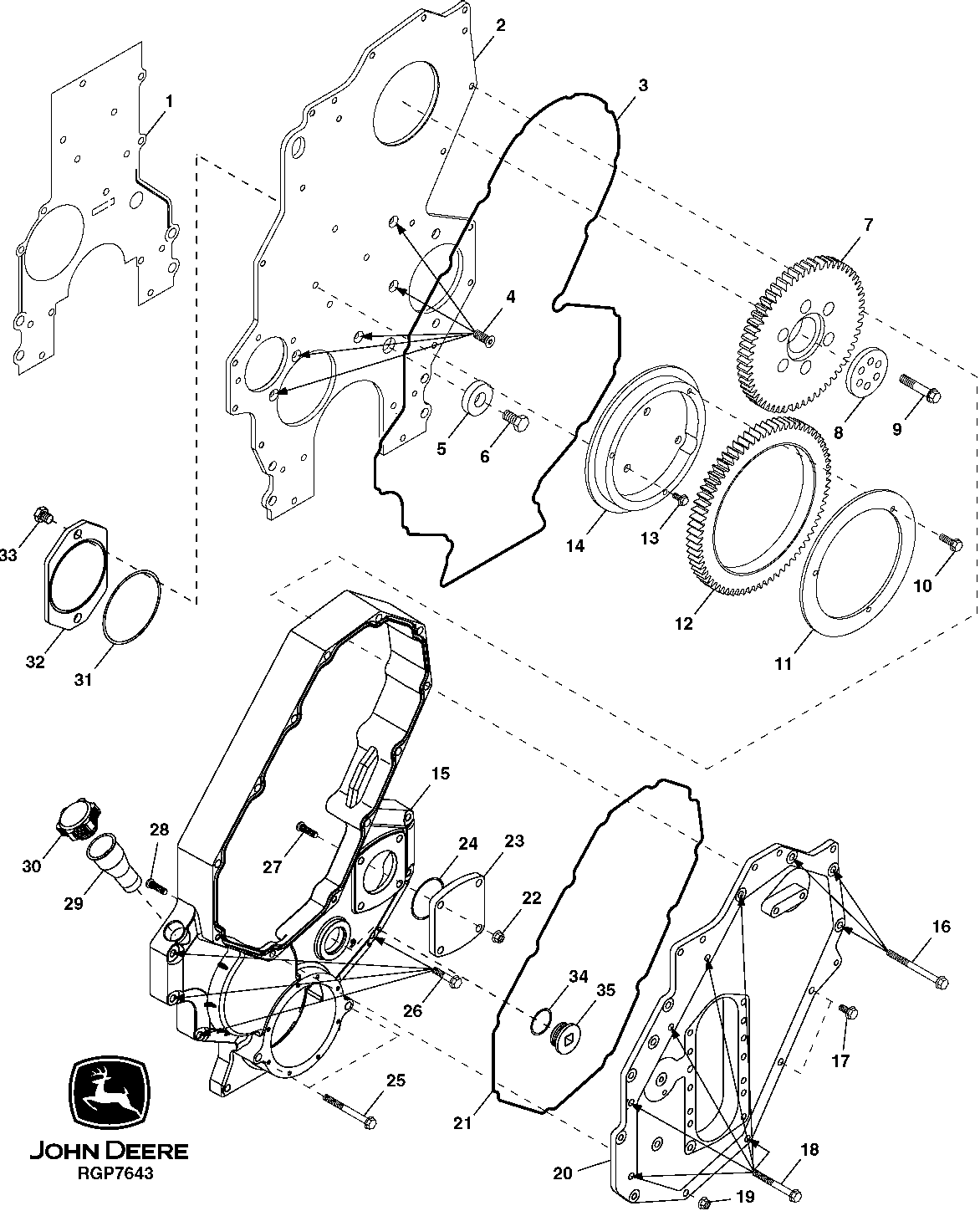

TIMING GEAR COVER, IDLER GEAR, FRONT PLATE, AND OIL FILL (013363 - )
