RIDE CONTROL AND HYDRAULIC HOSES (SERIAL NO. 563863-582302) (563863 - 582302)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

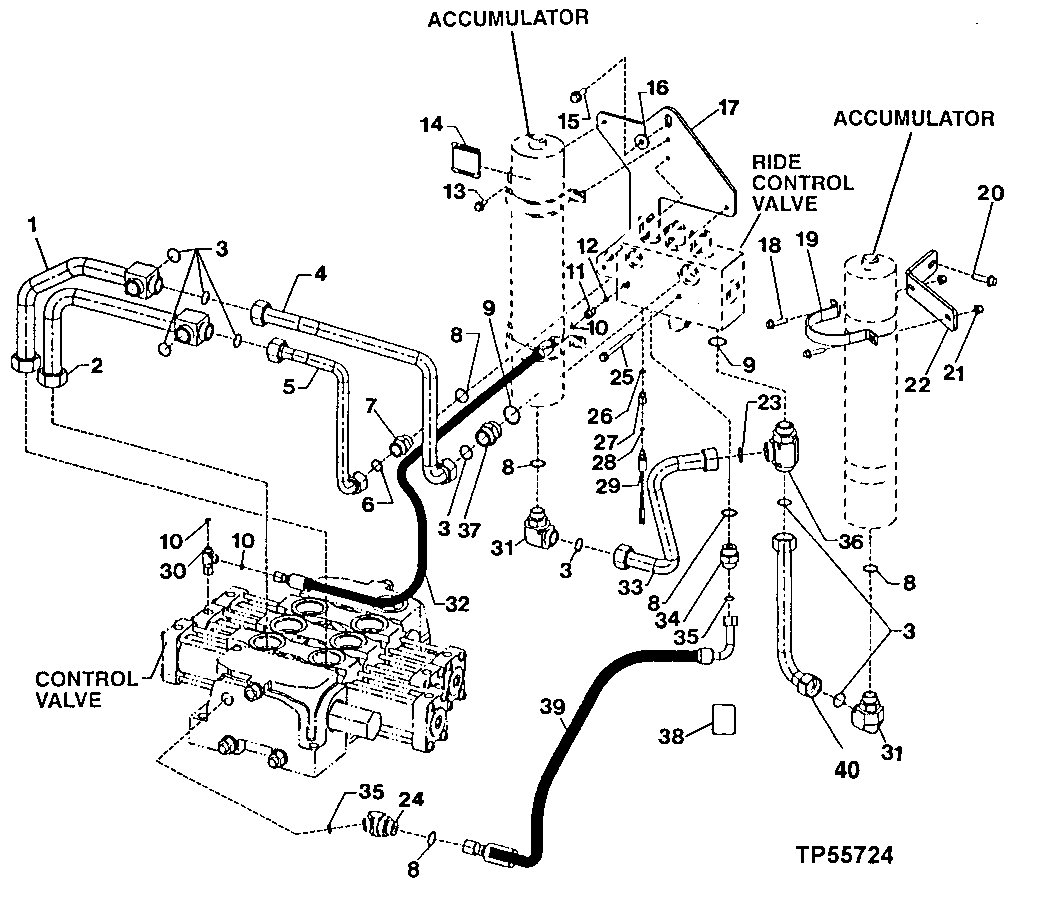

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT203024	1	Line	-
2	AT203023	1	Line	-
3	T78612	15	O-Ring	-
4	AT221869	1	Oil Line	36.5252" X 754 mm (29-3/4") X 36.5252"
5	AT202756	1	Oil Line	-
6	T76938	1	O-Ring	-
7	38H1164	1	Adapter Fitting	-
8	R29936	6	O-Ring	-
9	U13639	3	O-Ring	-
10	T77613	3	O-Ring	-
10	T77613	2	O-Ring	-
11	38H1309	1	Adapter Fitting	-
12	R28782	1	O-Ring	-
13	19M7785	4	Screw	M10 X 25
14	T146431	2	SAFETY SIGN	-
15	19M7790	2	Screw	M12 X 35, (USE WITH T156833 MOUNTING PLATE)
16	24M7226	2	Washer	13 X 35 X 5 mm
17	T156833	1	Plate	-
18	19M7804	2	Screw	M10 X 40
19	T146490	3	Clamp	(SUB FOR T167861)
20	19M7791	1	Bolt	M12 X 40
21	14M7400	2	Lock Nut	M10
22	T173480	1	Angle	-
23	T78612	1	O-Ring	-
24	38H1073	1	Elbow Fitting	-
25	19M7944	2	Screw	M10 X 120, (SUB FOR AT162096)(USE WITH AT223520 VALVE)
26	R26448	1	O-Ring	-
26	R26448	2	O-Ring	-
27	T167861	1	Fitting	(RIDE CONTROL VALVE), (SUB FOR AT223520)
28	R26287	1	O-Ring	(BOTTOM PRESSURE SWITCH PORT), (USE WITH AT223520 VALVE)
30	AT206815	1	Tee Fitting	-
30	38H1030	1	Tee Fitting	-
31	38H1053	2	Elbow Fitting	-
32	AT81931	1	Hydraulic Hose	(RIDE CONTROL VALVE TO LOADER CONTROL VALVE)
33	AT210566	1	Oil Line	-
34	38H1194	1	Adapter Fitting	-
35	T77858	3	O-Ring	-
36	38H1028	1	Tee Fitting	-
37	38H1165	1	Adapter Fitting	-
38	T146792	2	Safety Sign	-
39	AT203180	1	Hydraulic Hose	-
40	AT210567	1	Oil Line	-
41	R27218	1	Fitting Plug	-
42	AT223648	1	Fitting	-
29A	AT222370	1	Switch	(HARSH ENVIRONMENT)
29A	AT223537	1	Pressure Switch	-
29B	AT222370	1	Switch	(HARSH ENVIRONMENT)
29B	AT223537	1	Pressure Switch	(RELOCATED)(SUB FOR AT162096)
