Ride Control and Hydraulic Hoses (582303 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7400	4	Lock Nut	M10
2	19M7785	4	Screw	M10 X 25
3	19M7790	2	Screw	M12 X 35
4	19M7791	1	Bolt	M12 X 40
5	19M7804	2	Screw	M10 X 40
6	24M7226	2	Washer	13 X 35 X 5 mm
7	38H1009	1	Elbow Fitting	-
8	38H1028	1	Tee Fitting	-
9	38H1053	3	Elbow Fitting	-
10	38H1073	1	Elbow Fitting	-
11	38H1164	1	Adapter Fitting	-
12	38H1165	1	Adapter Fitting	-
13	38H1194	4	Adapter Fitting	-
14	AT162863	1	Relay	-
15	19M7898	2	Screw	M10 X 130, (USE WITH T181208 MOUNTING PLATE)
16	AT203023	1	Line	-
17	RE60700	1	Diagnostic Coupling	-
18	AT203024	1	Line	-
19	T158047	1	Adapter Fitting	(SUB FOR T167861)
20	AT203180	1	Hydraulic Hose	30.1752" X 1219 mm (48") X 30.1752"
22	AT206815	1	Tee Fitting	-
24	AT220517	1	Switch	-
25	AT223535	1	Pressure Switch	(INCLUDES R26287)(USE WITH AT223806 VALVE)
26	AT223783	1	Hydraulic Hose	42.8752" X 620 mm (24-1/2") X 36.5252"
27	AT332290	1	Hyd Actuated Control Valve	(RIDE CONTROL SYSTEM), (SUB FOR AT223520)
48	AT383880	2	Accumulator Kit	INCLUDES T180944
48	AT196760	2	Valve Kit	(GAS VALVE REPAIR)
50	AT224591	1	Oil Line	-
53	AT224592	1	Oil Line	-
55	AT224600	1	Wiring Harness	(USE WITH AT223806 VALVE)
56	AT225420	1	Hydraulic Hose	-
57	R26287	1	O-Ring	-
58	R26448	2	O-Ring	-
59	R29936	5	O-Ring	-
60	R77175	1	Cover	-
61	T146490	3	Clamp	-
62	T146792	2	Safety Sign	-
63	T173480	1	Angle	-
64	T180944	2	Label	-
65	T181208	1	Plate	-
66	T77613	1	O-Ring	-
67	T77814	1	O-Ring	-
68	T77858	2	O-Ring	-
69	T78612	12	O-Ring	-
70	U13639	2	O-Ring	-
90	-	1	Part 46	(WHOLEGOODS) RIDE CONTROL ( AT206645 NLA) ( AT307767 NLA)

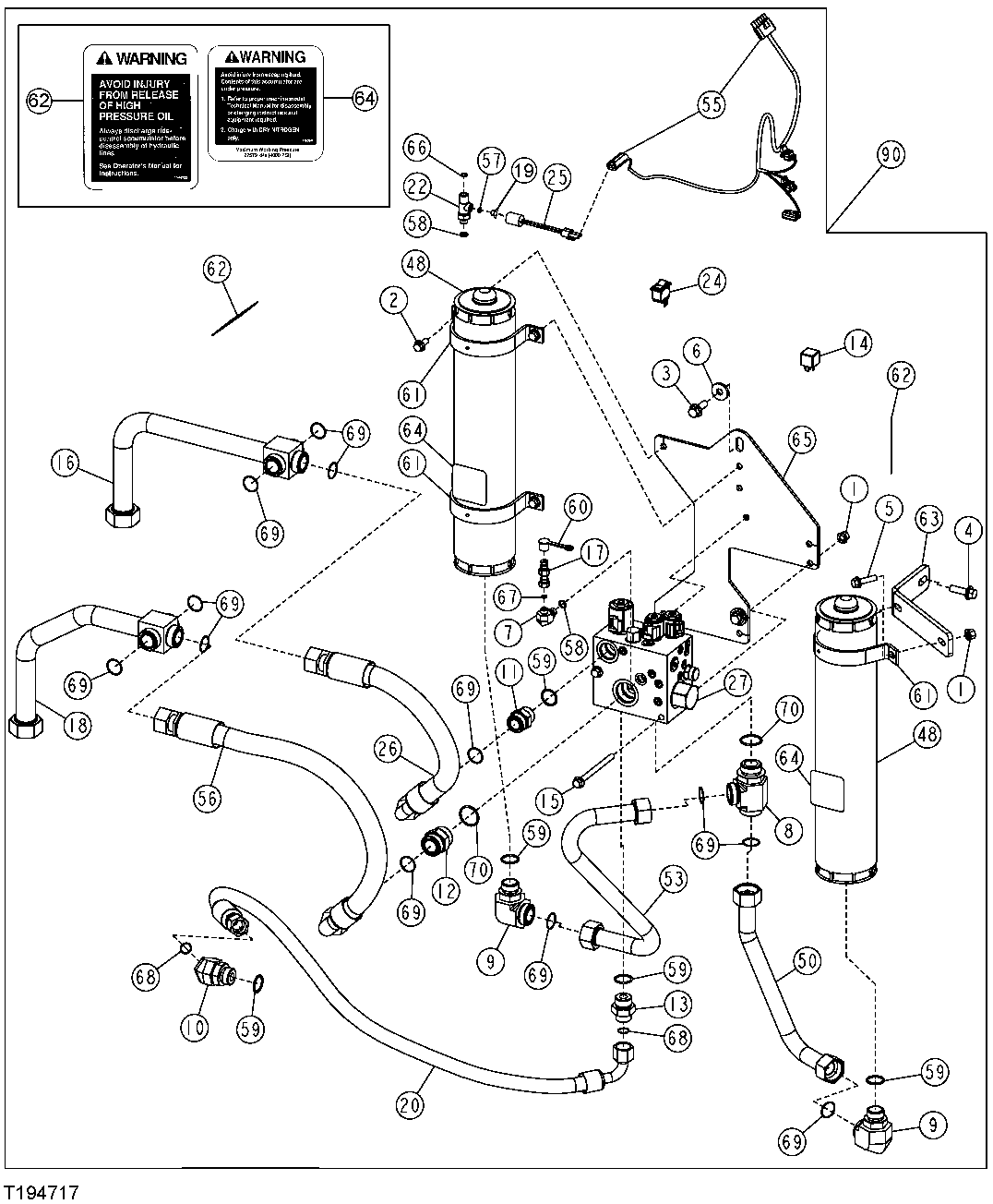

Ride Control and Hydraulic Hoses (582303 - )

Нет текстового описания
