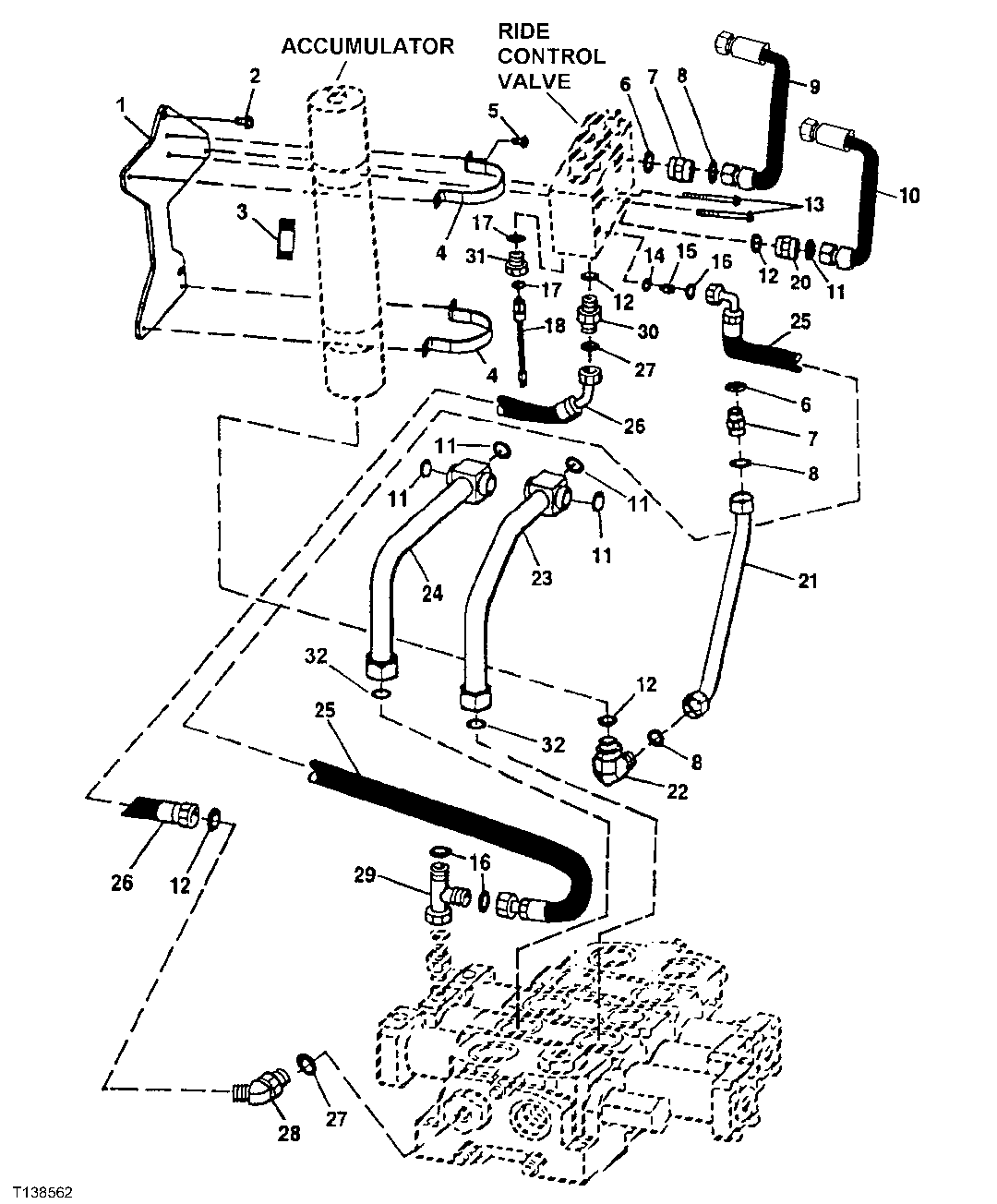

Ride Control and Hydraulic Hoses ( - 563862)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T156833	1	Plate	(TO INSTALL A SECOND ACCUMULATOR ORDER THE FOLLOWING PARTS: 38H1053 (1), 38H1028 (1), T78612 (3), R29936 (1), U13639 (1), AT210566 (1), AT210567 (1), AT208703 (1), T146431 (1), 19M7804 (2), 14M7400 (2), T146490 (1), T173480 (1), 19M8306 (1), 14M7299 (1) AND H140469 (1))
2	19M7788	2	Screw	M12 X 25
3	T180944	1	Label	(SUB FOR T146431)
4	T146490	2	Clamp	-
5	19M7785	4	Screw	M10 X 25
6	U13639	2	O-Ring	-
7	38H1165	2	Adapter Fitting	-
8	T78612	3	O-Ring	-
9	AT202757	1	Oil Line	(USE IF AVAILABLE) (SUB AT221869)
9	AT221869	1	Oil Line	(SUB FOR AT202757)
10	AT202756	1	Oil Line	(USE IF AVAILABLE), (SUB AT223783)
10	AT223783	1	Hydraulic Hose	(SUB FOR AT202756)
11	T78612	5	O-Ring	-
12	R29936	4	O-Ring	-
13	19M7944	2	Screw	M10 X 120
14	R28782	1	O-Ring	-
15	38H1309	1	Adapter Fitting	-
16	T77613	2	O-Ring	-
17	R26448	2	O-Ring	-
18	AT223537	1	Pressure Switch	(SUB FOR AT162096)
18	AT222370	1	Switch	(HARSH ENVIORNMENT, SEALED CONNECTORS) (NOT ILLUSTRATED), NLA
19	38H1053	1	Elbow Fitting	-
20	38H1164	1	Adapter Fitting	-
21	AT202761	1	Oil Line	NLA
22	38H1053	1	Elbow Fitting	-
23	AT203024	1	Line	BOOM RAISE
24	AT203023	1	Line	BOOM LOWER
25	AT81931	1	Hydraulic Hose	-
26	AT203180	1	Hydraulic Hose	-
27	T77858	2	O-Ring	-
28	38H1073	1	Elbow Fitting	-
29	38H1030	1	Tee Fitting	-
30	38H1194	1	Adapter Fitting	-
31	T158047	1	Adapter Fitting	(SUB FOR T167861)
32	R26773	2	O-Ring	-

Ride Control and Hydraulic Hoses ( - 563862)
