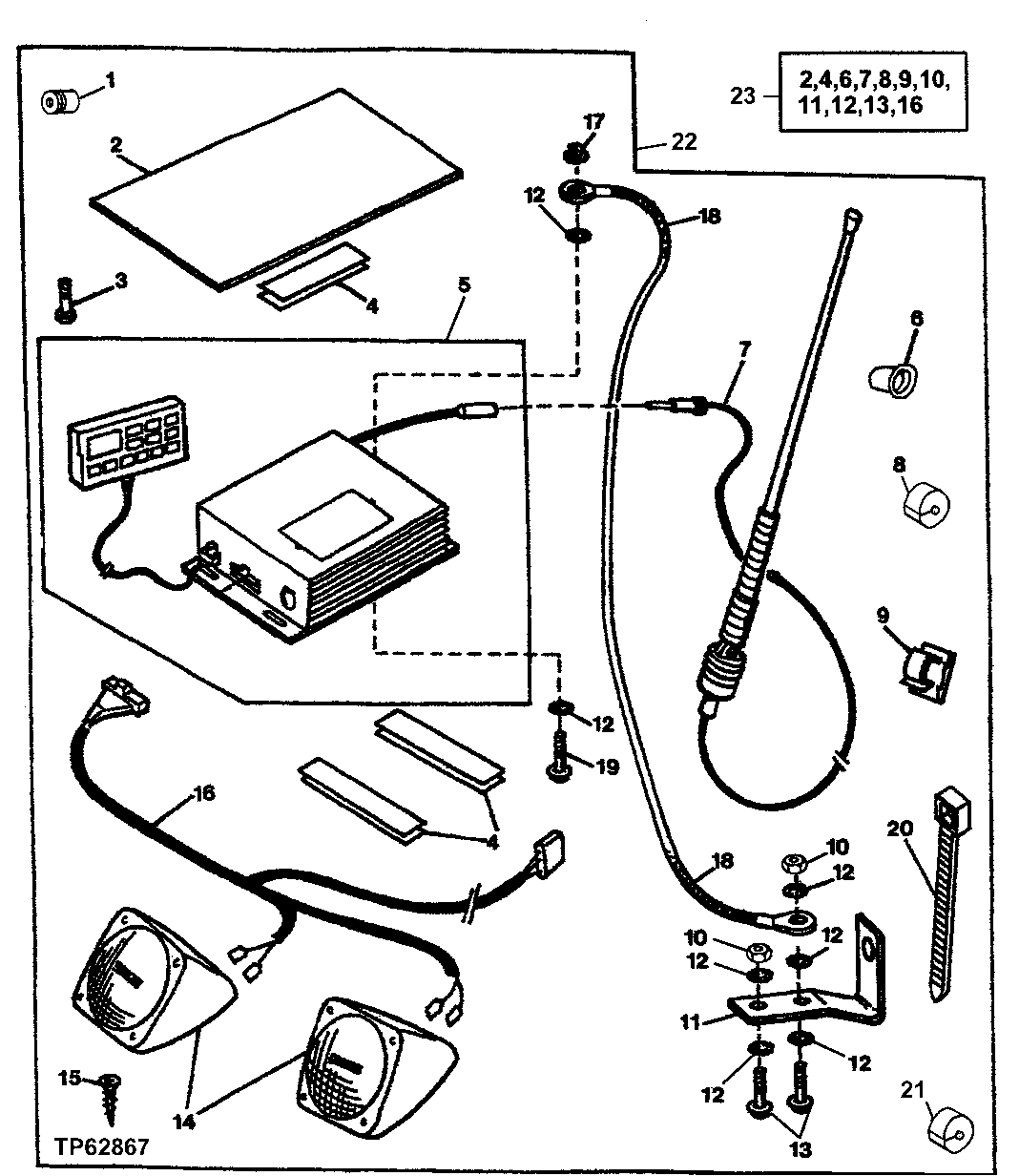

Radio, Antenna and Speakers (572399 - 578901)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N119177	1	GROMMET	-
2	T178098	1	Cover	-
3	37M7030	2	Screw	(KEYPAD TO HEADLINER)
4	T117030	2	Tape	(RECLOSABLE) (USE IF AVAILABLE), (SUB T180494)
4	T180494	1	Tape	-
5	AT182522	1	Radio	(SUB FOR AT222111)
6	T180408	1	Plug	(OLD ANTENNA HOLE)
7	AT182525	1	Antenna	(INCLUDES CABLE), (SUB FOR AT222113)
8	T182870	1	Isolator	(SUB FOR T182861)(SEAL RADIO WIRING HOLE)
9	T182909	8	Clip	(RADIO WIRING TO INSIDE CAB)
10	14M7273	2	Nut	M8
11	T177397	1	Bracket	(ANTENNA MOUNTING)
12	T182977	6	Washer	(SUB FOR 12M7032)
13	19M7866	2	Screw	M8 X 20
14	AT208494	2	Speaker	-
15	T167681	6	Screw	(SUB FOR T182954)(SPEAKERS TO CAB ROOF)
16	AT221992	1	Wiring Harness	(NEW INSTALLATION)
16	AT222025	1	Wiring Harness	(RELOCATION OF EARLY RADIO INSTALLATION) (NOT ILLUSTRATED)
17	14M7303	1	Flange Nut	M6
18	T179742	1	Strap	-
19	19M7774	1	Screw	M6 X 12
20	R44302	2	Tie Band	-
21	T182870	1	Isolator	-
22	-	1	Part 24	( AT222293 NLA) (ORDER COMPONENT PARTS), (ASSEMBLY)
23	AT222295	1	Kit	ASSEMBLY, RELOCATE EARLY RADIO INSTALLATION

Radio, Antenna and Speakers (572399 - 578901)
