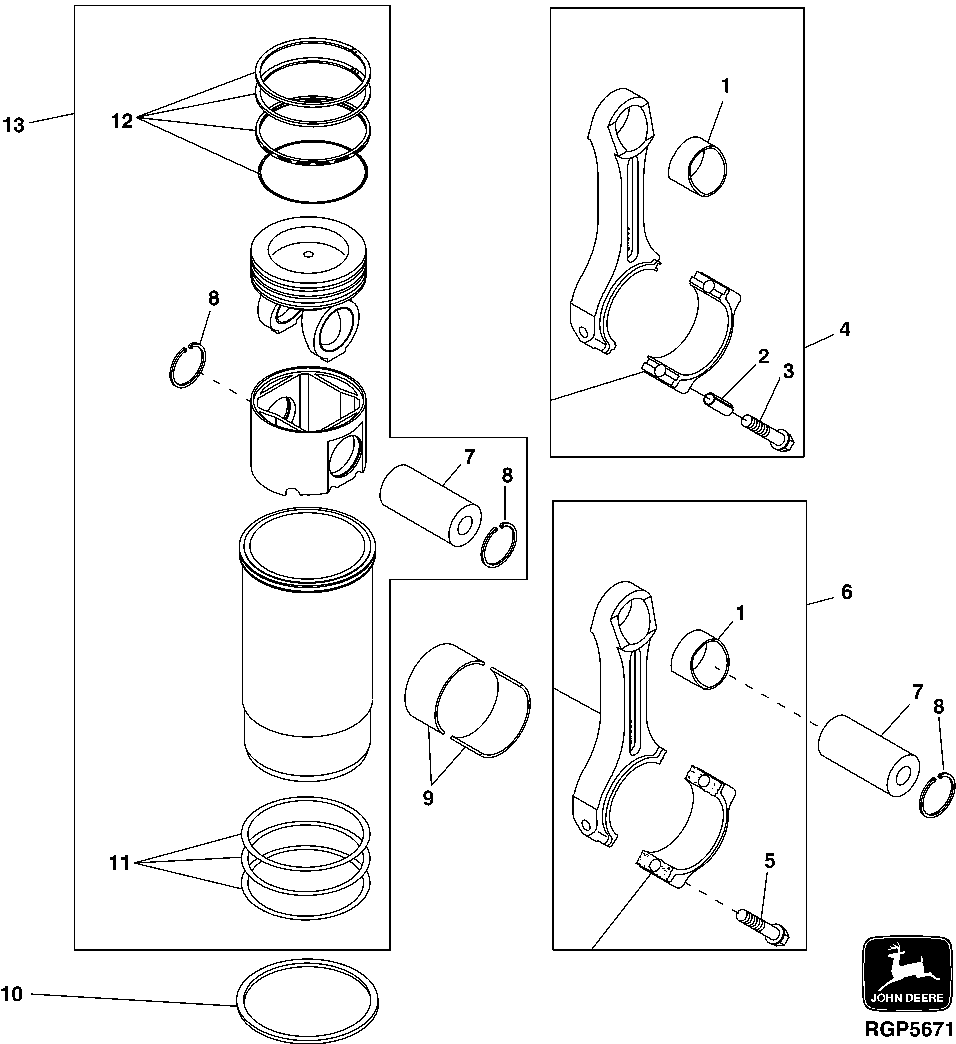

PISTON, CONNECTING ROD, CYLINDER LINER (ADW)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R69045	6	Bushing	(MARKED R63960)
2	R48317	12	Sleeve	(USE WITH R121174)
3	R66453	12	Cap Screw	(USE WITH R121174)
4	RE57641	6	Connecting Rod	(MARKED R121174 ) (ORDER SE500502)
4	SE500502	6	Connecting Rod Reman	(REMAN FOR RE57641)
5	R501380	12	Cap Screw	(USE WITH RE502314)
6	SE501726	6	Connecting Rod Reman	(REMAN FOR RE532355)
6	SE501066	6	Connecting Rod Reman	(MARKED R501566) (REMAN FOR RE502314)
6	RE502314	6	Connecting Rod	(MARKED R501566) (ORDER RE522978)
6	RE532355	6	Connecting Rod	(MARKED R519614 OR R526175)(ONE NOTCH)
6	SE501269	6	Connecting Rod Reman	(MARKED RE522978) (REMAN FOR RE522978)
6	RE522978	6	Connecting Rod	(MARKED R501566 OR R519614 ) (SUB FOR RE502314)(TWO NOTCHES)
7	R64451	6	Piston Pin	-
8	N51168	12	Snap Ring	-
9	RE534627	1	Bearing Kit	0.25 MM (.010"), US (PKGR524610)
9	RE531769	1	Bearing Kit	0.50 MM (.020"), US (PKG R524611 AND R524614)
9	RE531768	1	Bearing Kit	0.25 MM (.010"), US (PKG R524610 AND R524613)
9	RE530787	1	Bearing Kit	(USE R526175ONE NOTCH)
9	RE68704	1	Bearing Kit	0.50 MM (.020") , US (PKG R524614)
9	RE68703	1	Bearing Kit	0.25 MM (.010"), US (PKG R524613)
9	RE63811	1	Bearing Kit	(TWO NOTCHES)
9	RE534628	1	Bearing Kit	0.50 MM (.020"), US (PKG R524611)
9	RE534626	1	Bearing Kit	(TWO NOTCHES)
10	R81276	1	Shim	0.05 MM
10	R81277	1	Shim	0.10 MM
11	AR72351	6	O-Ring Kit	-
12	RE53637	1	Piston Ring Kit	(USE WITH RE66125)
12	RE504630	1	Piston Ring Kit	(USE WITH RE503969)
13	RE66216	6	Piston-Liner Kit	(MARKED RE66125)
13	RE505213	6	Piston-Liner Kit	(MARKED RE503969)

PISTON, CONNECTING ROD, CYLINDER LINER (ADW)
