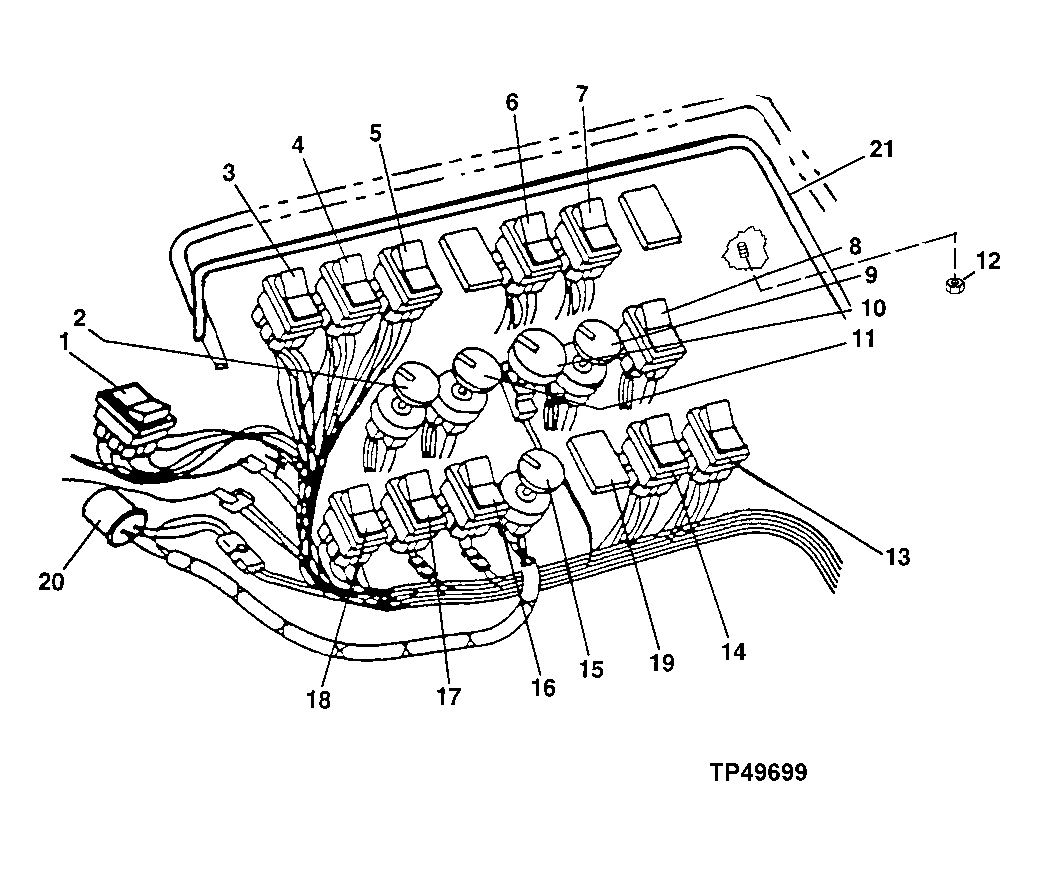

Load Center Harness and Right Panel (LPM Harness)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT202795	1	Switch	PILOT ENABLE/BOOM DOWN
2	RE46634	1	Switch	FRONT WIPER
2	E46066	2	Nut	11.125 mm (7/16"), (SUB FOR R44165)
2	AL76568	1	Knob	-
3	AT202787	1	Switch	DRIVE AND TAIL MARKER
4	AT203500	1	Toggle/Rocker Switch	CAB WORK LIGHT
5	AT202786	1	Switch	FOUR-WAY FLASHER
6	AT202796	1	Switch	CLUTCH CUTOFF
7	AT202797	1	Switch	AUTOMATIC TRANSMISSION
8	RE55478	1	Toggle/Rocker Switch	AIR CONDITIONER, ON/OFF SWITCH
9	RE43497	1	Switch	BLOWER SWITCH
9	AL76568	1	Knob	-
9	E46066	2	Nut	11.125 mm (7/16"), (SUB FOR R44165)
10	RE46742	1	Control	TEMPERATURE CONTROL (NOT PART OF LOAD CENTER HARNESS)
10	R111632	1	Knob	-
11	E46066	2	Nut	11.125 mm (7/16"), (SUB FOR R44165)
11	AL76568	1	Knob	-
11	RE46634	1	Switch	REAR WIPER
12	14M7303	4	Flange Nut	M6
13	-	1	Part 20	( AT202810 NLA)
14	AT220517	1	Switch	RIDE CONTROL WITH SWITCH, (SUB FOR AT202798)
15	RE43497	1	Switch	LPM MODE SWITCH
15	AL76568	1	Knob	-
15	E46066	2	Nut	11.125 mm (7/16"), (SUB FOR R44165)
16	AT202805	1	Switch	PIN DISCONNECT
17	AT202788	1	Switch	ROTARY BEACON
18	AT202940	1	Toggle/Rocker Switch	RETURN TO CARRY
19	AT202800	1	Switch	LPM OFF/ON SWITCH
20	AT206912	1	Wiring Harness	LPM HARNESS (MATERIAL HANDLER)
20	AT221625	1	Wiring Harness	(HARSH ENVIORNMENT) (MATERIAL HANDLER)
20	AT223510	1	Wiring Harness	(HARSH ENVIORNMENT)
21	AT207497	1	Plate	RIGHT PANEL PLATE
21	37H95	4	Screw	-

Load Center Harness and Right Panel (LPM Harness)

Нет текстового описания
