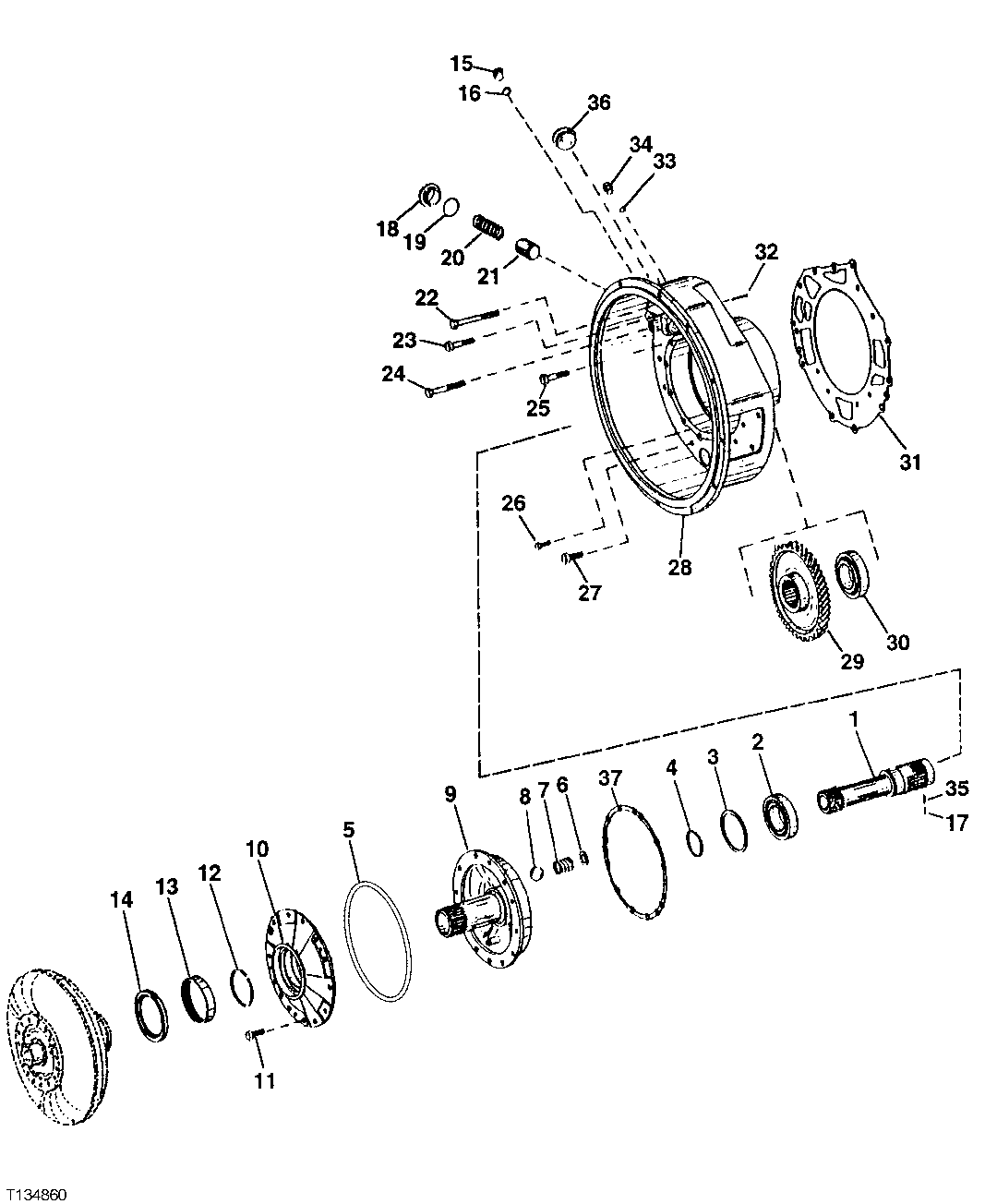

INPUT SHAFT, CONVERTER HOUSING AND BEARING COVER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T168727	1	Shaft	-
2	T168914	1	Tapered Roller Bearing	-
3	T168856	1	Shim	2.00 MM (.079")
3	T181396	1	Washer	1.00 MM (.039")
3	T169690	1	Solid Shim	0.85 MM (.033")
3	T169684	1	Solid Shim	0.90 MM (.035")
3	T169691	1	Solid Shim	0.95 MM (.037")
3	T168866	1	Shim	1.00 MM (.039")
3	T169692	1	Solid Shim	1.05 MM (.041")
3	T168865	1	Shim	1.10 MM (.043")
3	T169693	1	Solid Shim	1.15 MM (.045")
3	T169694	1	Solid Shim	1.25 MM (.049")
3	T168863	1	Shim	1.30 MM (.051")
3	T169695	1	Solid Shim	1.35 MM (.053")
3	T168862	1	Shim	1.40 MM (.055")
3	T168859	1	Shim	1.70 MM (.068")
3	T169792	1	Washer	1.80 MM (.070")
3	T169704	1	Solid Shim	2.15 MM (.084")
3	T168864	1	Shim	1.20 MM (.047")
4	T169019	1	Piston Ring	SEAL
5	T168724	1	Gasket	(USE WITH T168729 COVER) (EARLIER UNITS)
5	T181770	1	O-Ring	(USE WITH T180463 COVER), (SUB FOR T180464)
6	T169027	1	Ring	-
7	T168893	1	Spring	-
8	T168778	1	Ball	-
9	T168723	1	Flange	-
10	T168729	1	Cover	(USE IF AVAILABLE), (SUB T180463 ) (ALSO ORDER T168724 AND T181770)
10	T180463	1	Cover	-
11	19M7550	12	Cap Screw	M10 X 35
12	T169020	1	Piston Ring	-
13	T168905	1	Needle Bearing	-
14	T168903	1	Seal	-
15	AT112799	1	Fitting Plug	(INCLUDES SEAL T107983)
16	T74553	1	O-Ring	-
17	-	1	Part 35	( 34M7204 NO LONGER REQUIRED)
18	T169073	1	Cap Screw	-
19	L55580	1	O-Ring	-
20	T168894	1	Spring	-
21	T169739	1	Piston	-
22	J441295	2	Screw	(SUB FOR AT136445)
23	19M7362	1	Cap Screw	M12 X 55
24	19M7817	1	Screw	M12 X 70, (SUB FOR 19M7753)
25	19M7363	1	Cap Screw	M12 X 60
26	19M7017	4	Cap Screw	M8 X 30
27	19M7403	10	Cap Screw	M12 X 35
28	T168152	1	Transmission Case	-
29	T179180	1	Gear	(SUB FOR T168728)
30	T182370	1	Tapered Roller Bearing	(SUB FOR JD37219)
31	T168722	1	Gasket	(K1) (USE IF AVAILABLE) (SUB T180709)
31	T180709	1	Gasket	-
32	34M7044	1	Spring Pin	6 X 50 mm
33	T116416	1	O-Ring	(SUB FOR T170498)
34	T175862	1	Plug	(SUB FOR T168796)
35	-	1	Part 54	2.500 X 5 MM, ( 34M7203 NO LONGER REQUIRED)
36	T174496	2	Plug	-
37	T168724	1	Gasket	-
..	-	1	Part 57	( AT208319 NO LONGER AVAILABLE) (SEAL AND GASKET) UNITS WITH SER NO.-000283 THAT DO NOT HAVE A DIE CAST

INPUT SHAFT, CONVERTER HOUSING AND BEARING COVER
