Открытый узел

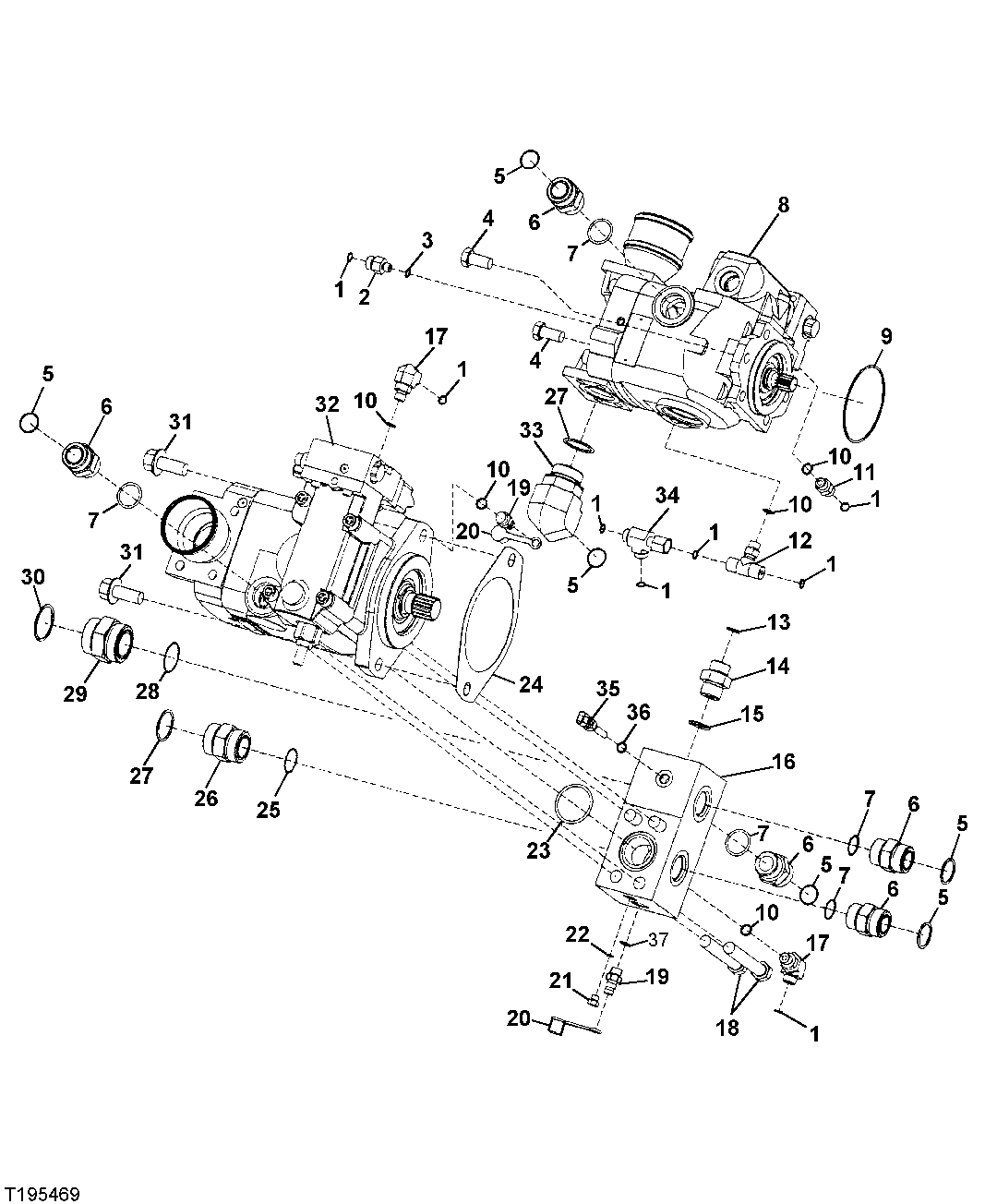

Hydraulic Pump (Steering and Loader)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77613	8	O-Ring	-
2	38H1309	1	Adapter Fitting	-
3	R28782	1	O-Ring	-
4	19M7877	2	Cap Screw	M14 X 30
5	T76938	6	O-Ring	-
6	38H1164	5	Adapter Fitting	-
7	R29936	5	O-Ring	-
8	-	1	Part 8	(PVG75) (STEERING), (SUB AT227996 AND T197126 ( AT223521 NLA))
8	-	1	Part 9	(MATERIAL HANDLER MACHINES ONLY), (SUB AT227997 AND T197126 ( AT225617 NLA))
8	AT514215	1	Pump	SUB FOR AT227996, (PVG75) (STEERING)
8	AT514216	1	Pump	SUB FOR AT227997, (MATERIAL HANDLER MACHINES ONLY)
9	T169035	1	Ring	-
10	R26448	5	O-Ring	-
11	38H1160	1	Adapter Fitting	-
12	AT207529	1	Check Valve	-
13	T77932	1	O-Ring	-
14	38H1329	1	Adapter Fitting	-
15	U12547	1	O-Ring	-
16	-	1	Part 19	( T156625 NO LONGER AVAILABLE), (SUB T204161, (4) 19H2718 AND AT306981)
16	T204161	1	Manifold	-
17	38H1004	2	Elbow Fitting	-
18	19H2718	4	Cap Screw	5/8" X 4-3/4"
18	19H3169	4	Cap Screw	5/8" X 4-1/4"
19	AH125760	2	Hyd. Quick-Connect Coupler	-
19	AT306981	2	Diagnostic Coupling	-
20	R77175	2	Cover	-
21	R27216	1	DRAIN PLUG	(NOT USED WITH HYDRAULIC PRESSURE TRANSDUCER)
22	R26287	1	O-Ring	(NOT USED WITH HYDRAULIC PRESSURE TRANSDUCER)
23	T72221	1	O-RING	-
24	T132071	1	Gasket	-
25	T78612	1	O-Ring	-
26	38H1165	1	Adapter Fitting	-
27	U13639	2	O-Ring	-
28	T78784	1	O-Ring	-
29	38H1191	1	Adapter Fitting	-
30	R26773	1	O-Ring	-
31	19M7488	2	Cap Screw	M16 X 40
32	AT353756	1	Hydraulic Pump	(SUB FOR AT223266)(PVG 130) (LOADER PUMP)
32	AT353760	1	Hydraulic Pump	(SUB FOR AT225616)(MATERIAL HANDLER MACHINES ONLY) (RESET SYSTEM PRESSURE TO 3250 PSI)
33	38H1325	1	Elbow Fitting	-
34	38H1030	1	Tee Fitting	-
35	RE151433	1	Temperature Sensor	(HYDRAULIC OIL TEMPERATURE)
36	R26286	1	O-Ring	-
37	R26448	1	O-Ring	-
37	R28782	1	O-Ring	-

Hydraulic Pump (Steering and Loader)

Нет текстового описания
