Gearshift System (Control Valve) (Transmission S.N. 000284-000371)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T168023	1	Cover	-
2	T168025	2	Gasket	-
3	T169607	6	Solenoid Valve	-
4	T144486	6	Plate	-
5	T173662	1	Housing	-
6	T168018	2	Gasket	-
7	T170195	36	Washer	-
8	T170714	36	Cap Screw	-
9	19M7600	6	Screw	M5 X 12, (SUB FOR T159602)
10	T170195	50	Washer	-
11	T170718	28	Cap Screw	-
12	T168024	1	Cover	-
13	T161207	1	Clamp	-
14	T173660	14	Compression Spring	-
15	T170715	1	Wiring Harness	(INCLUDES TRANSMISSION TEMPERATURE SENSOR)
16	T169766	6	Pin Fastener	DAMPER
17	T169712	6	Compression Spring	-
18	-	1	Part 18	( T173657 NO LONGER AVAILABLE) (SUB AT210004) (ALSO ORDER AT211065 MOUNTING KIT, INCLUDES: T174394, T179556, T169783, T169782, T169776, R53869, T170498, T116416, T173123, T122083, T174090 AND T174091)
19	T173659	1	Piston	PRESSURE REGULATOR VALVE
20	T173661	1	Housing	-
21	T170195	64	Washer	-
22	T170714	36	Cap Screw	-
23	T173658	1	Piston	PRESSURE REDUCING VALVE
24	T173126	1	Compression Spring	-
25	T169711	6	Compression Spring	-
26	T169707	6	Orifice	-
27	T173511	6	Piston	(SUB FOR T169773)BOOSTER
28	T169711	1	Compression Spring	-
29	T173653	1	Gasket	-
30	T173654	1	Plate	-
31	T173655	1	Gasket	-
32	T173656	1	Plate	-
33	T170199	18	Washer	-
34	T170725	18	Cap Screw	-
35	AT210004	1	Control Valve	(USE IF AVAIL) (SUB AT210004) (ALSO ORDER AT211065 MOUNTING KIT) (INCLUDES T179557, T179556, T179553, T179554, T179555, R53869, T170498, T116416, T173123, T122083, T174090 AND T174091)

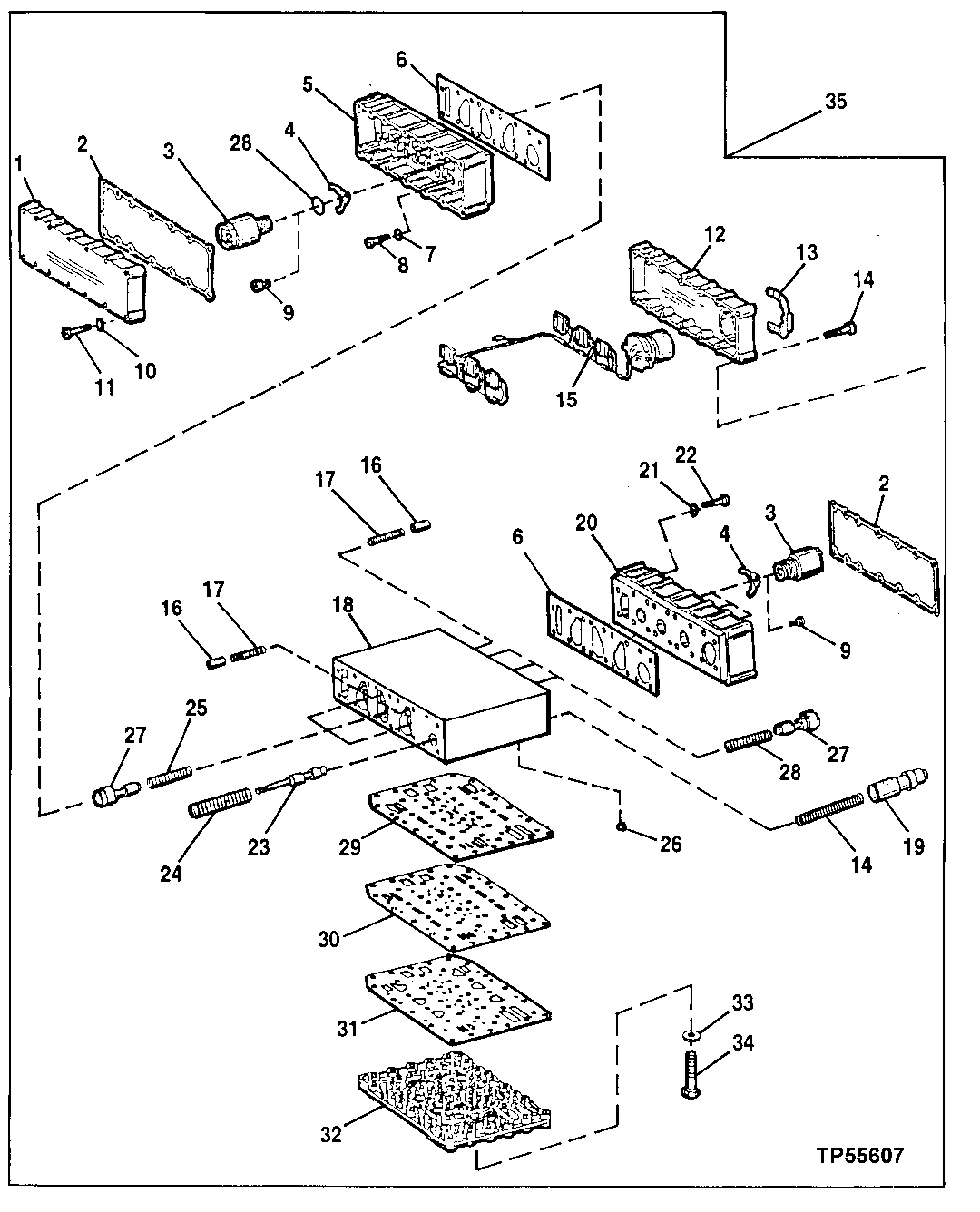

Gearshift System (Control Valve) (Transmission S.N. 000284-000371)
