Gearshift System (Control Valve) (Transmission S.N. -000283)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T168023	1	Cover	-
2	T168025	2	Gasket	-
3	T169607	6	Solenoid Valve	-
4	T144486	6	Plate	-
5	T168026	1	Housing	-
6	T168018	2	Gasket	-
7	T170195	36	Washer	-
8	T170714	36	Cap Screw	-
9	19M7600	6	Screw	M5 X 12, (SUB FOR T159602)
10	T170195	50	Washer	-
11	T170718	28	Cap Screw	-
12	T168024	1	Cover	-
13	T161207	1	Clamp	-
14	T169714	14	Compression Spring	-
15	T170715	1	Wiring Harness	(INCLUDES TRANSMISSION TEMPERATURE SENSOR)
16	T169766	6	Pin Fastener	DAMPER
17	T169712	6	Compression Spring	-
18	-	1	Part 18	(SUB AT210004) (ALSO ORDER AT211065 MOUNTING KIT, INCLUDES: T174394, T179556, T169783, T169782, T169776, R53869, T170498, T116416, T173123, T122083, T174090 AND T174091)
19	T169784	1	Piston	PRESSURE REGULATOR VALVE
20	T168022	1	Housing	-
21	T170195	64	Washer	-
22	T170714	36	Cap Screw	-
23	T169775	1	Piston	PRESSURE REDUCING VALVE
24	T169713	1	Compression Spring	-
25	T169711	6	Compression Spring	-
26	T169707	6	Orifice	-
27	T173511	6	Piston	(SUB FOR T169773)BOOSTER
28	T169711	1	Compression Spring	-
29	T169768	1	Gasket	-
30	T169769	1	Plate	-
31	T168019	1	Gasket	-
32	T173656	1	Plate	(SUB FOR T168020)
33	T170199	18	Washer	-
34	T170725	18	Cap Screw	-
35	-	1	Part 35	(SUB AT210004) (ALSO ORDER AT211065 MOUNTING KIT) (INCLUDES T179557, T179556, T179553, T179554, T179555, R53869, T170498, T116416, T173123, T122083, T174090 AND T174091)

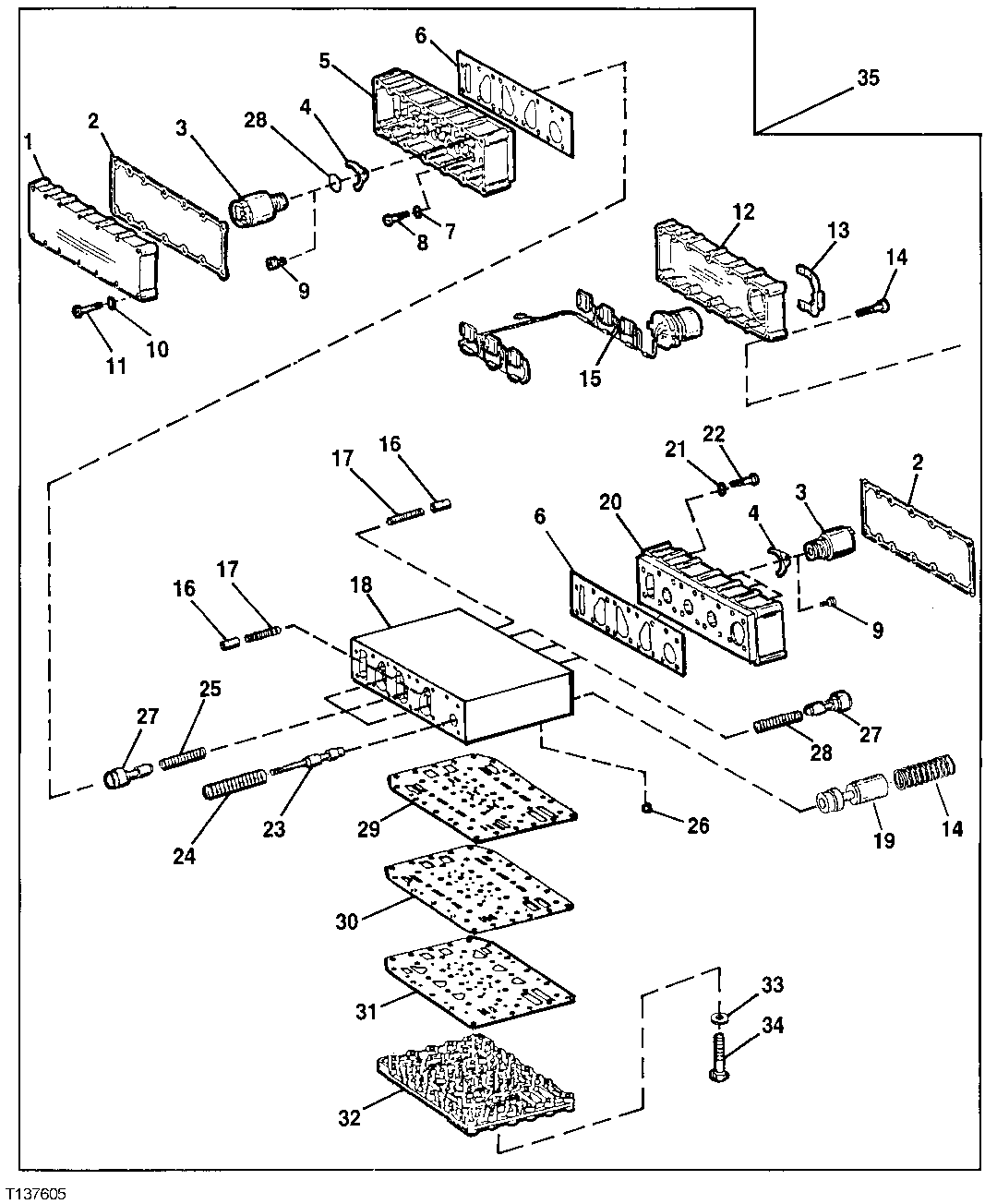

Gearshift System (Control Valve) (Transmission S.N. -000283)
