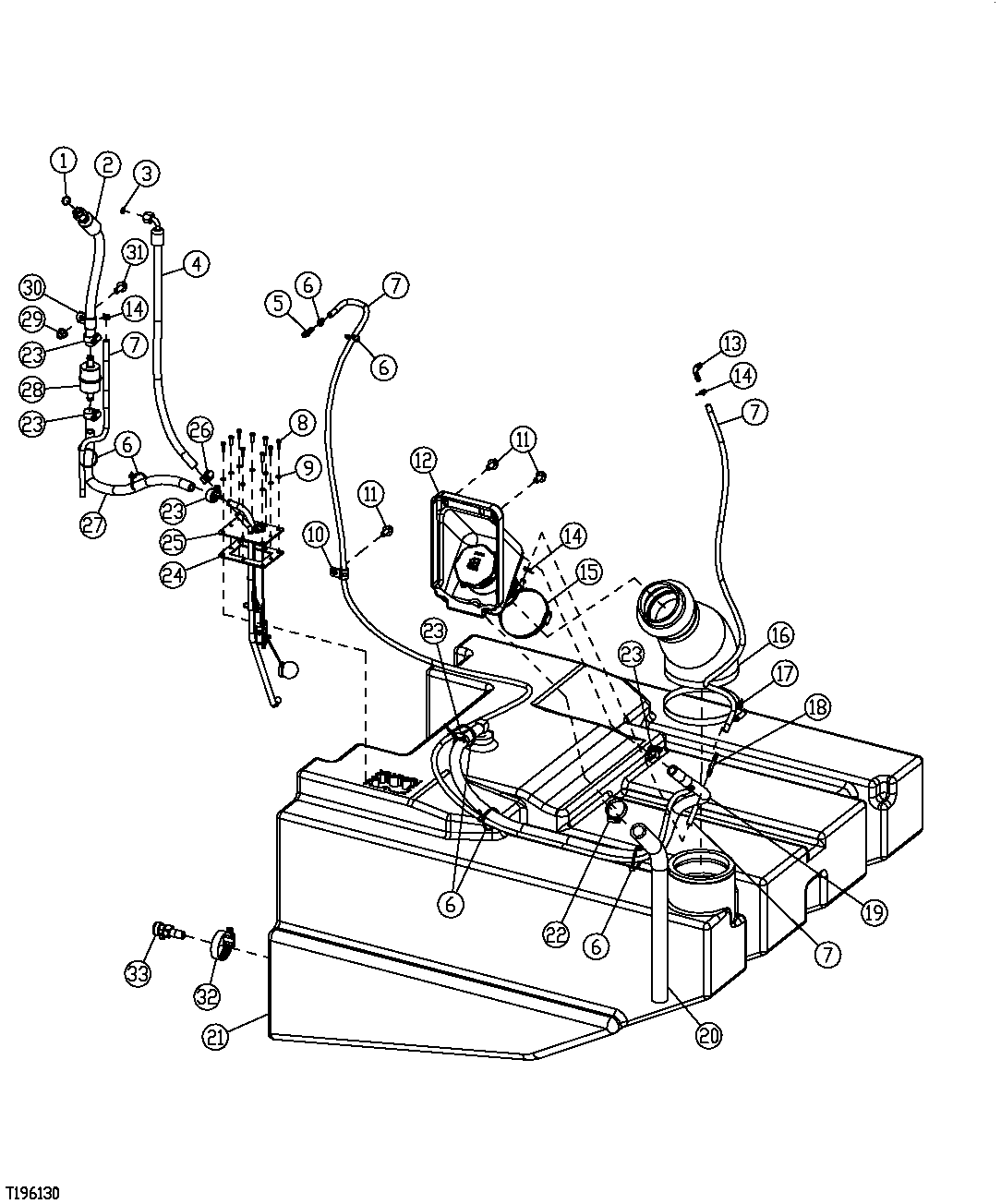

Fuel Tank and Fuel Tank Hoses (581928 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7043	1	O-Ring	15.300 X 2.200 mm
2	AT222934	1	Hydraulic Hose	-
3	T77613	1	O-Ring	-
4	AT222935	1	Hydraulic Hose	-
5	AT18687	1	HOSE FITTING	-
6	R44302	7	Tie Band	-
7	-	4	Part 7	(MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH)
8	19M7372	9	Cap Screw	M5 X 16
9	24M7027	9	Washer	5.300 X 10 X 1 mm
10	T74412	1	Clamp	-
11	19M7784	3	Screw	M10 X 20
12	AT221930	1	Housing	-
13	R61356	1	Elbow Fitting	USE 14M7152 TO MOUNT, (SUB FOR R156318)
13	14M7152	1	Nut	M10, MOUNT R156318 ELBOW, (NOT ILLUSTRATED)
14	PT9412	3	Hose Clamp	-
15	AR21842	1	Clamp	-
16	T195106	1	Hose	-
16	AT224006	1	Hose	-
17	TY22494	1	Hose Clamp	-
18	N154080	1	Tee Fitting	-
19	-	1	Part 21	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)
20	T178954	1	Hose	-
21	AT222715	1	Fuel Tank	-
22	AR21839	1	Clamp	-
23	AR21837	5	Clamp	-
24	T179540	1	Gasket	-
25	AT222975	1	Fuel Sender	-
26	TY22464	1	Clamp	(SUB FOR AR21836)
27	-	1	Part 29	-
28	AT223493	1	Fuel Filter	-
29	14M7400	1	Lock Nut	M10
30	T70659	1	Clamp	-
31	19M7785	1	Screw	M10 X 25
32	AR21839	1	Clamp	-
33	AT223133	1	Hand Operated Valve	-

Fuel Tank and Fuel Tank Hoses (581928 - )
