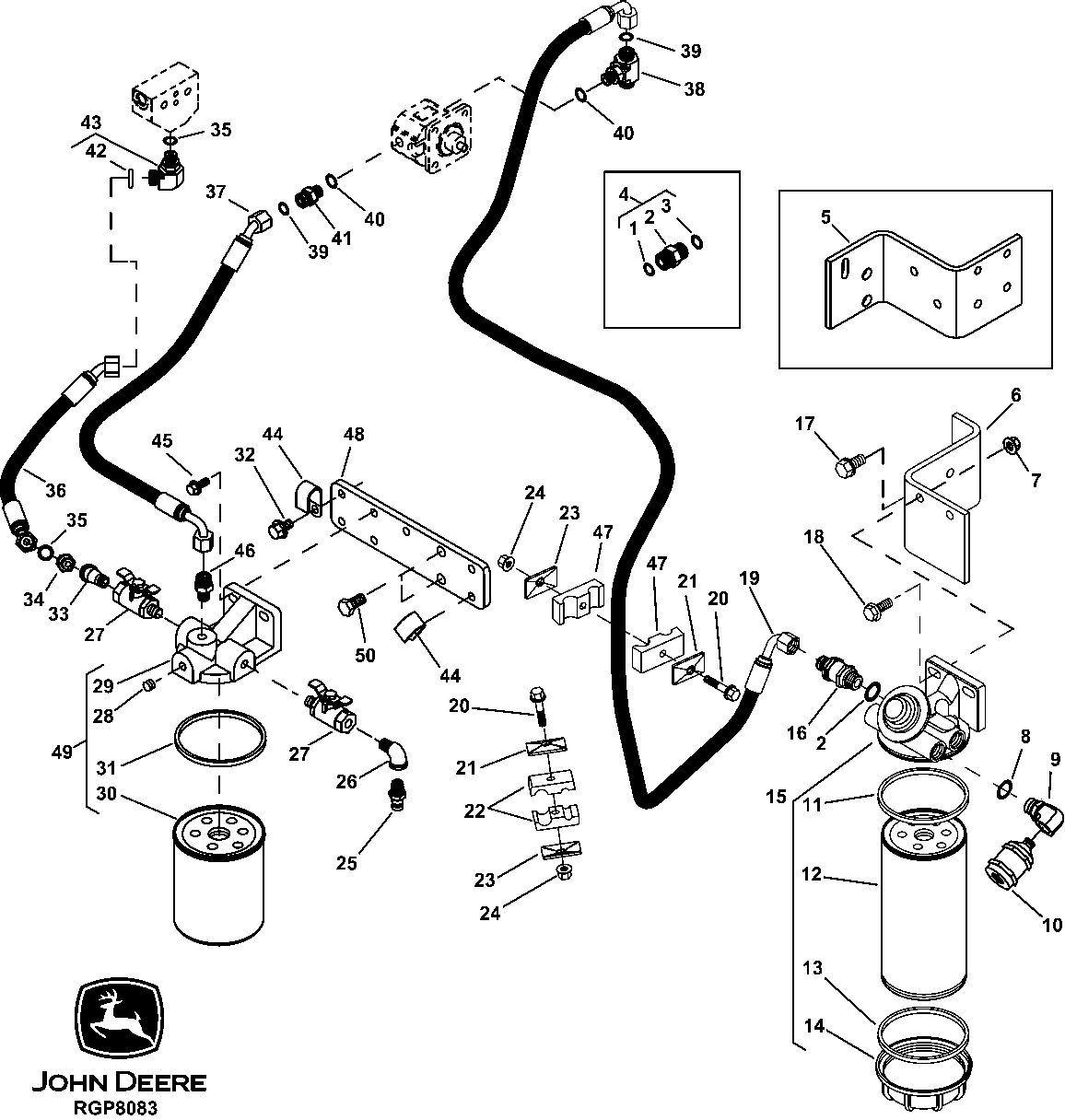

FUEL FILTER (PRIMARY/SECONDARY) AND HOSES (ESN -010624) (ADW) ( - 010624)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	1	O-Ring	-
2	38H1161	1	Adapter Fitting	-
3	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
4	AE48031	1	Fitting	-
5	R131134	1	Bracket	(SUB R501199 AND 19M8114)
6	R501199	1	Bracket	-
7	14M7296	2	Flange Nut	M10
8	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
9	M83197	1	Elbow Fitting	-
10	RE500203	1	Check Valve	-
11	R501388	1	Packing	(USE WITH R131134)
12	RE500186	1	Filter Element	(PRIMARY)
12	RE502203	1	Filter Element	(PRIMARY)
13	R501389	1	Packing	-
14	RE500187	1	Sediment Bowl	-
15	RE502202	1	Fuel Filter	(PRIMARY)
15	RE500185	1	Fuel Filter	(PRIMARY)
16	RE503336	1	Check Valve	(SUB RE504435, R26375 AND T77857)
16	RE503337	1	Check Valve	(SUB RE504435, R26375 AND T77857)
16	RE504435	1	Check Valve	(ALSO ORDER R26375 AND T77857)
17	19M7788	2	Screw	M12 X 25
18	19M7835	2	Screw	M10 X 35, (USE WITH R501199)(REAR)
18	19M8114	1	Screw	M10 X 70, (USE WITH R501199)(FRONT)
18	19M7835	1	Screw	M10 X 35
19	RE504587	1	Fuel Line	(SUB FOR RE66715 AND RE504306 ) (SUB RE505547)
20	19M8319	1	Screw	M8 X 50
21	H121168	2	Plate	-
22	H109046	4	Clamp	-
23	H121168	2	Plate	-
24	14M7396	1	Lock Nut	M8
25	R501265	1	Diagnostic Coupling	-
26	P47478	1	Elbow Fitting	6.350 mm (1/4")
27	AT210914	2	Bleed Valve	(SUB RE507684)
28	15H685	1	Pipe Plug	1/4"
29	RE61550	1	Filter Head	-
29	RE506833	1	Fuel Filter	(MARKED R501277)(SECONDARY)
30	RE506428	1	Filter Element	(SUB FOR RE502204)
31	R501388	1	Packing	-
32	19M7783	1	Screw	M10 X 16
33	15H220	1	ELBOW FITTING	1/4"
34	M87733	1	Adapter Fitting	(TO SHUT-OFF VALVE)
35	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
36	RE504303	1	Adapter Fitting	(SUB FOR RE66717 OR RE504305 ) (SUB RE504314)
37	RE504304	1	Fuel Line	(SUB FOR RE66716, RE500577 OR RE501096 ) (SUB RE504313)
38	38H1016	1	Tee Fitting	-
39	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	R26448	1	O-Ring	-
41	38H1160	2	Adapter Fitting	-
42	51M7041	1	O-Ring	11.300 X 2.200 mm
43	38H5016	1	Elbow Fitting	-
44	R72853	1	Clamp	(SUB T74416, THIS APPLICATION)(FRONT HOLE)
44	R72853	1	Clamp	-
45	19M7785	2	Screw	M10 X 25
46	M87733	1	Adapter Fitting	-
47	H111730	2	Clamp	-
48	R127753	1	Plate	-
49	RE502205	1	Fuel Filter	(SUB RE506883, THIS APPLICATION)(SECONDARY)
49	RE506833	1	Fuel Filter	-
50	19M7789	2	Screw	M12 X 30, (FUEL FILTER MOUNTING PLATE TO CYLINDER BLK)

FUEL FILTER (PRIMARY/SECONDARY) AND HOSES (ESN -010624) (ADW) ( - 010624)

Нет текстового описания
