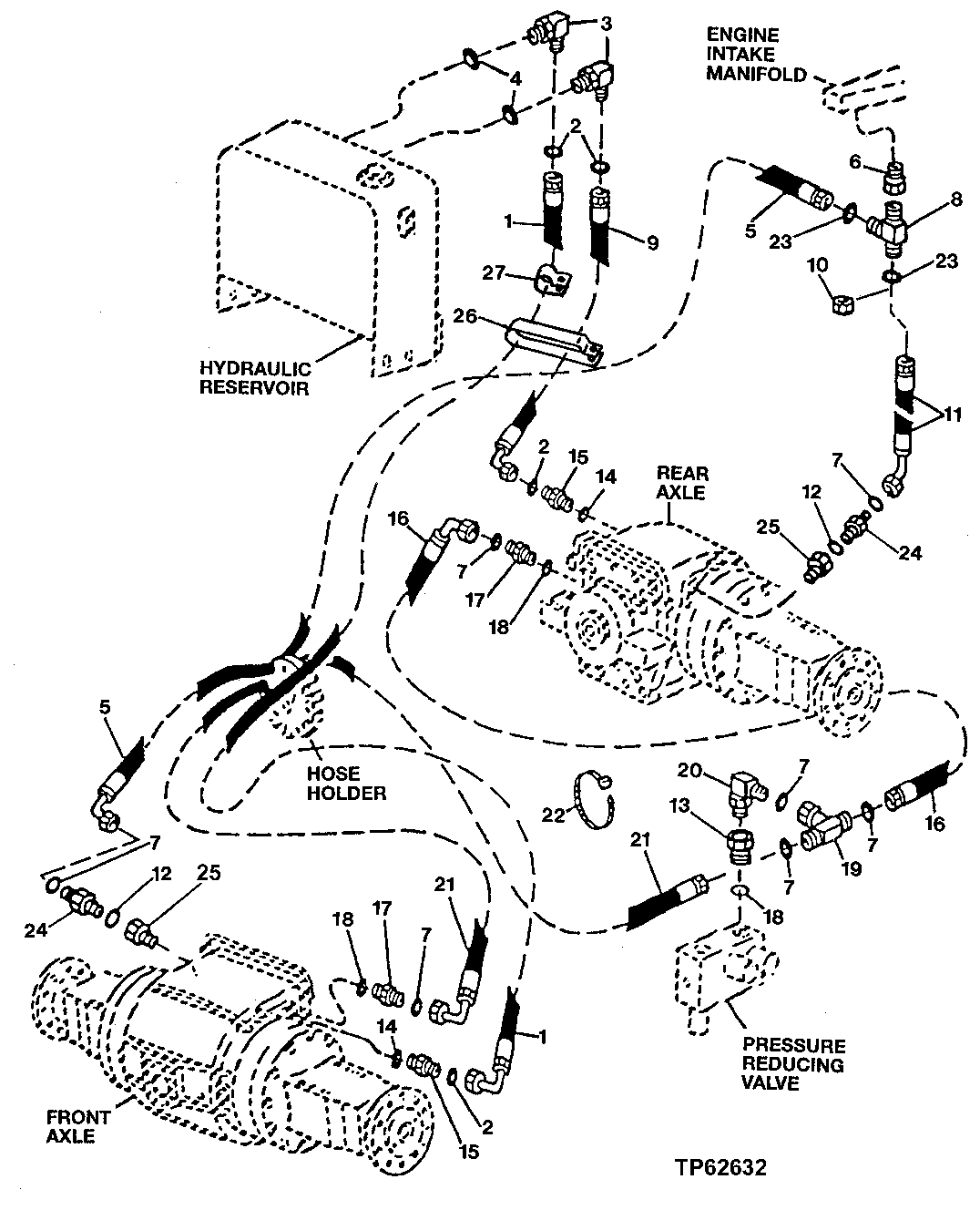

Differential Lock Lines (Front and Rear) ( - 581927)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT203003	1	Hydraulic Hose	-
2	T77857	4	O-Ring	-
3	38H1005	2	Elbow Fitting	-
4	R26375	2	O-Ring	-
5	AT203001	1	Hydraulic Hose	-
6	15H511	1	Pipe Bushing	1/8"
7	T77814	7	O-Ring	(WITH FRONT AND REAR DIFF LOCK)
7	T77814	6	O-Ring	(WITH FRONT DIFF. LOCK ONLY)
8	AT161752	1	Tee Fitting	-
9	AT203002	1	Hydraulic Hose	-
10	38H1414	1	Fitting	(WITH FRONT DIFF. LOCK ONLY)
11	AT133593	1	Hydraulic Hose	-
12	R26906	2	O-Ring	-
13	R27218	1	Fitting Plug	(WITH NO DIFF LOCK ONLY)
14	U12547	2	O-Ring	-
15	38H1175	2	Adapter Fitting	-
16	AT202999	1	Hydraulic Hose	-
17	38H1168	2	Adapter Fitting	-
18	R26448	3	O-Ring	-
19	38H1036	1	Tee Fitting	-
20	38H1009	1	Elbow Fitting	-
21	AT203000	1	Hydraulic Hose	-
22	H77698	3	Tie Band	(WITH FRONT AND REAR DIFF LOCK ONLY)
22	H77698	2	Tie Band	(WITH FRONT DIFF LOCK ONLY)
22	R44302	3	Tie Band	(WITH FRONT AND REAR DIFF LOCK ONLY)
22	R44302	1	Tie Band	(WITH FRONT DIFF LOCK ONLY)
23	R27976	2	O-Ring	(WITH FRONT AND REAR DIFF LOCK ONLY)
24	R119239	2	Adapter Fitting	-
25	RE50431	2	Check Valve	-
26	AH77869	1	Clip	(FRONT AND REAR DIFFERENTIAL LOCK)
27	AH77869	1	Clip	(FRONT DIFFERENTIAL LOCK ONLY), (SUB FOR T74416, THIS APPLICATION)

Differential Lock Lines (Front and Rear) ( - 581927)
