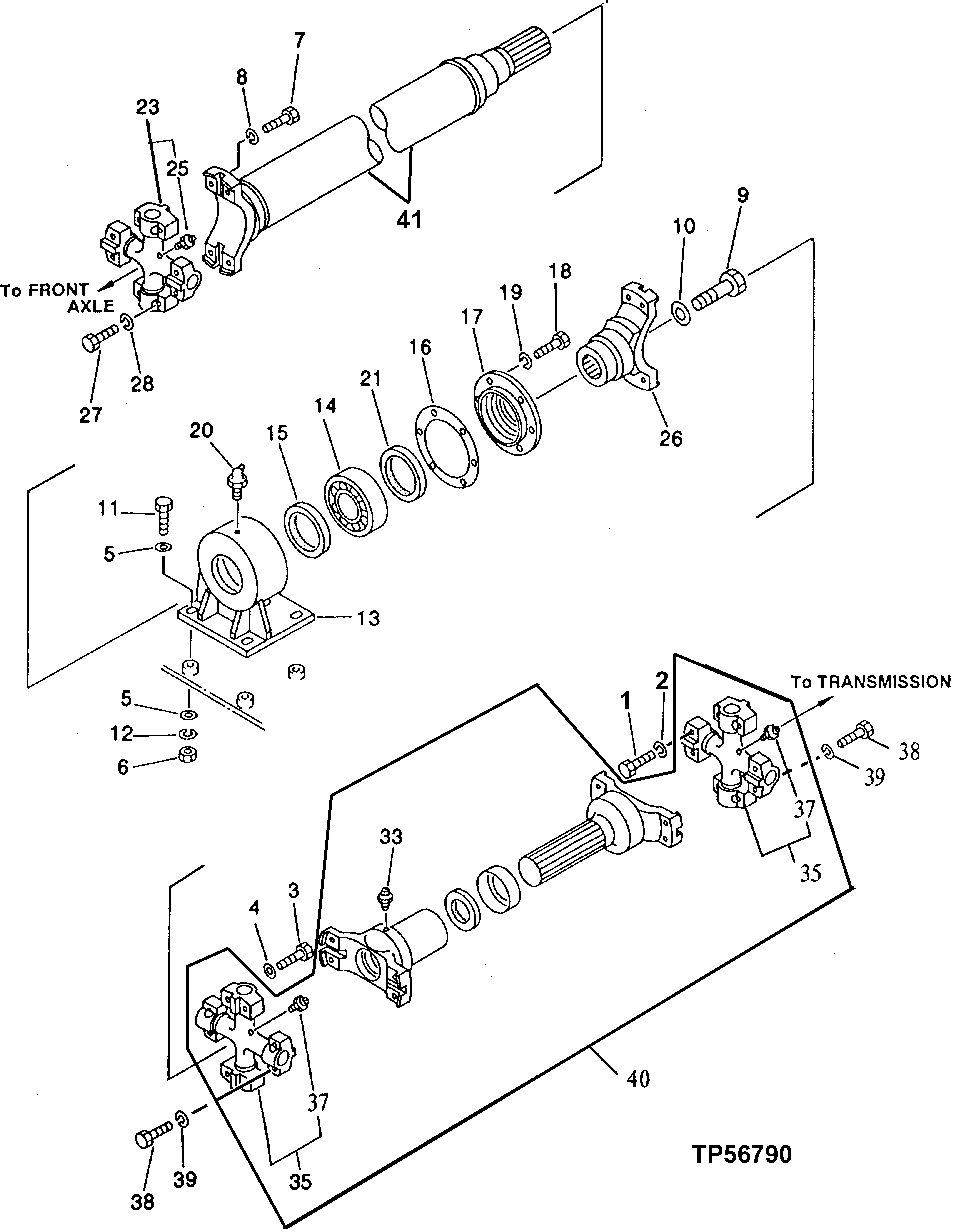

TRANSMISSION TO FRONT AXLE DRIVE SHAFT [01B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT136454	4	BOLT	-
2	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
3	AT136453	4	BOLT	-
4	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
5	24M7053	8	Washer	17 X 30 X 3 MM
6	14M7276	4	Nut	M16
7	19H2399	4	Cap Screw	1/2" X 2-1/2"
8	12H301	4	Lock Washer	1/2", (SUB FOR AT136591)
9	AT136451	1	BOLT	-
10	AT137137	1	Washer	-
11	19M7719	4	Cap Screw	M16 X 70, (SUB FOR AT138081)
12	12M7069	4	Lock Washer	16 MM
13	AT137149	1	CASE	-
14	TH110990	1	SPHERICAL ROLLER BEARING	-
15	AT136485	1	SEAL	-
16	AT137150	1	GASKET	-
17	AT137151	1	COVER	-
18	19M7168	6	Cap Screw	M10 X 30
19	12M6791	6	Lock Washer	10.200 MM
20	TH100075	1	LUBRICATION FITTING	(USE IF AVAILABLE)
20	T116334	1	Lubrication Fitting	(SUB FOR TH100075)
21	AT136483	1	SEAL	-
23	AT137144	1	CROSS AND BEARING ASSEMBLY	(A)
25	JD7769	1	Lubrication Fitting	(SUB FOR TH100364)
26	AT137147	1	UNIVERSAL JOINT YOKE	(A)
27	AT136453	4	BOLT	(A)
28	12M7067	4	Lock Washer	(A) 12 MM, (SUB FOR 12M6268)
33	TH100074	1	Lubrication Fitting	-
35	AT137144	2	CROSS AND BEARING ASSEMBLY	-
37	JD7769	1	Lubrication Fitting	(SUB FOR TH100364)
38	AT136453	8	BOLT	-
39	12M7067	8	Lock Washer	12 MM, (SUB FOR 12M6268)
40	AT137141	1	DRIVE SHAFT	-
41	-	1	Part 34	(A)

TRANSMISSION TO FRONT AXLE DRIVE SHAFT [01B21]

Нет текстового описания
