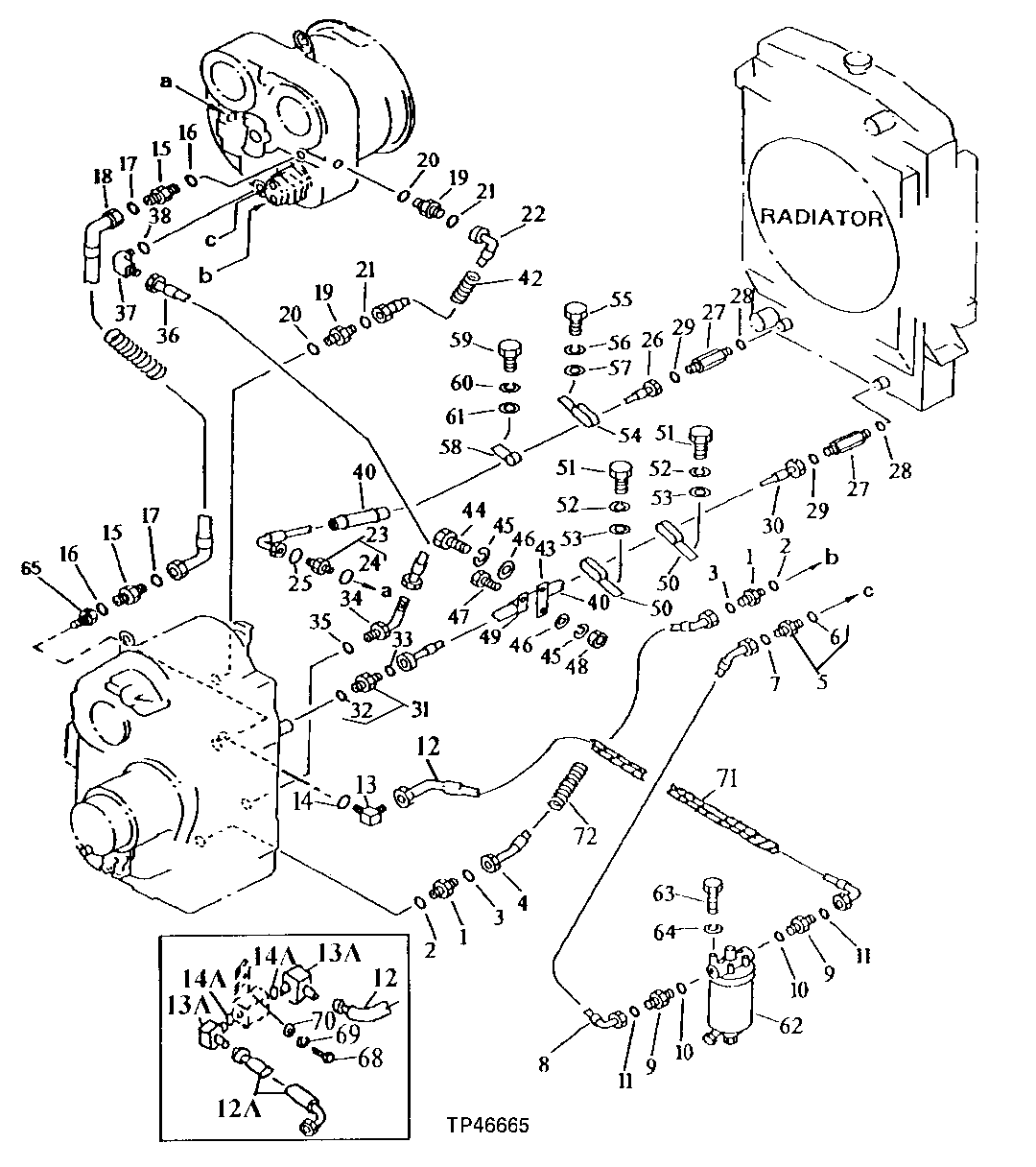

TORQUE CONVERTER AND TRANSMISSION HYDRAULICS [02B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
34	AT136673	1	ELBOW FITTING	-
35	T110922	1	O-Ring	-
36	AT136675	1	HYDRAULIC HOSE	-
37	AT136674	1	ELBOW FITTING	-
38	T110922	1	O-Ring	-
40	R44302	4	Tie Band	-
42	-	1	Part 7	(MAKE FROM AT138220 BULK-CUT TO LENGTH)
43	AT136551	1	STRAP	-
44	19M8324	1	Cap Screw	M10 X 16
45	12M6791	2	Lock Washer	-
46	24M7028	2	Washer	10.500 X 20 X 2 MM
47	19M7167	1	Cap Screw	M10 X 25
48	14M7274	1	Nut	M10
49	XCL-29	1	Hose Clamp	(SUB FOR AT131725, TH110522 OR 4193848)
50	AT136909	2	Clamp	-
51	19M8324	2	Cap Screw	M10 X 16
52	12M6791	2	Lock Washer	10.200 MM
53	24M7028	2	Washer	10.500 X 20 X 2 MM
54	AT136909	1	Clamp	-
55	19M8324	1	Cap Screw	M10 X 16
56	12M6791	1	Lock Washer	10.200 MM
57	24M7028	1	Washer	10.500 X 20 X 2 MM
58	XCL-29	1	Hose Clamp	(SUB FOR AT131725, TH110522 OR 4193848)
59	19M8324	1	Cap Screw	M10 X 16
60	12M6791	1	Lock Washer	10.200 MM
61	24M7028	1	Washer	10.500 X 20 X 2 MM
62	AT136607	1	FILTER	-
63	19M7167	4	Cap Screw	M10 X 25
64	12M6791	4	Lock Washer	10.200 MM
65	AT138195	1	ADAPTER FITTING	-
68	19M8011	2	Cap Screw	M12 X 30
69	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
70	24M7047	2	Washer	13 X 24 X 2.500 MM
71	-	1	Part 34	(MAKE FROM AT138221 BULK-CUT TO LENGTH)
72	-	1	Part 35	(MAKE FROM AT138221 BULK-CUT TO LENGTH)

TORQUE CONVERTER AND TRANSMISSION HYDRAULICS [02B18]
