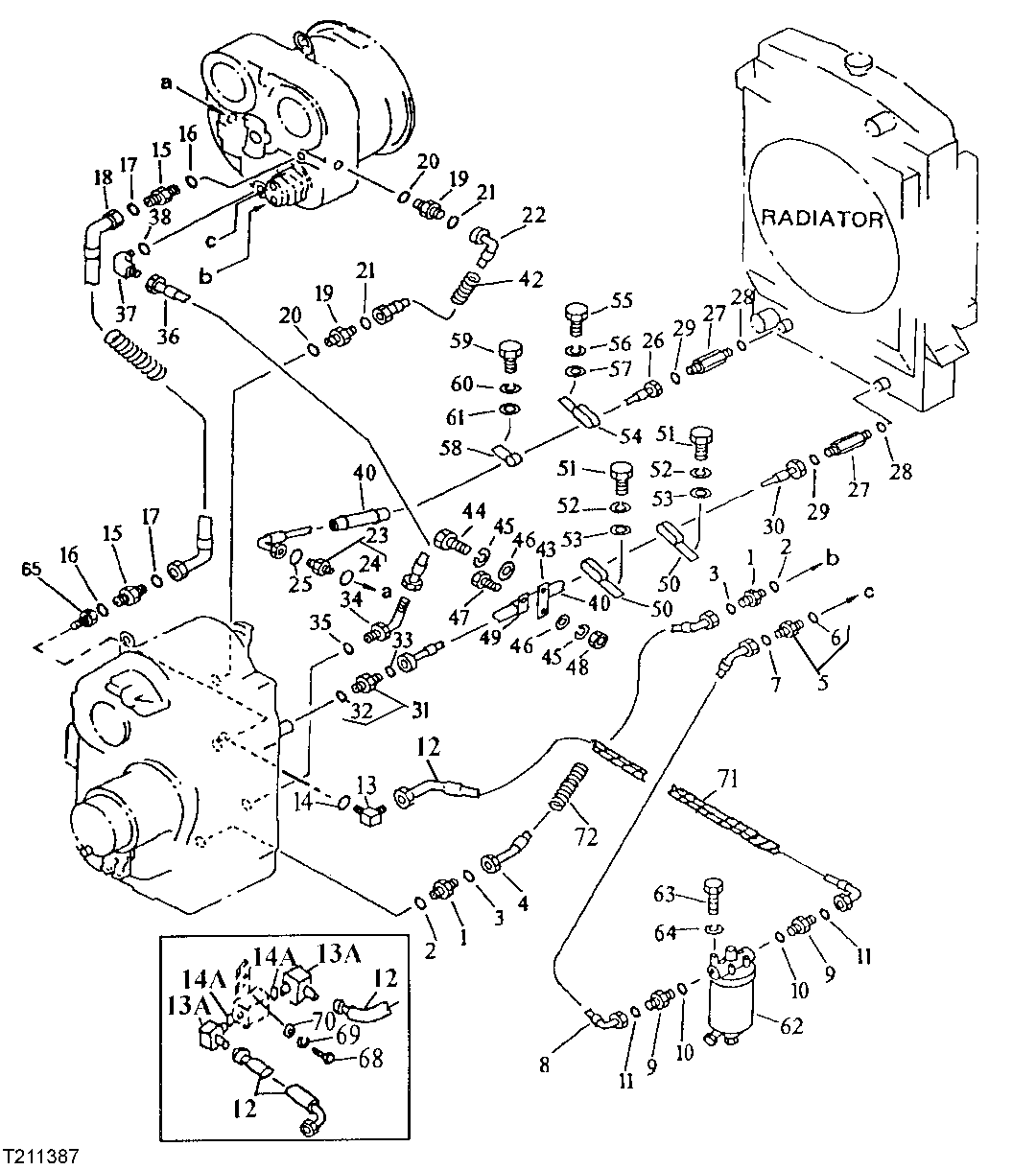

TORQUE CONVERTER AND TRANSMISSION HYDRAULICS [02B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT137960	2	ADAPTER FITTING	-
2	T110922	2	O-Ring	-
3	T78612	2	O-Ring	(SUB FOR AT137961)
4	AT137124	1	HYDRAULIC HOSE - FABRICATE	-
4	AT164015	1	HOSE	-
5	4189535	1	Adapter Fitting	-
6	TH101926	1	O-Ring	-
7	T76938	1	O-Ring	(SUB FOR U15192, THIS APPLICATION)
8	AT164016	1	HOSE	-
8	AT137125	1	HYDRAULIC HOSE - FABRICATE	-
9	AT137126	2	ADAPTER FITTING	-
10	CH11566	2	O-Ring	-
11	T76938	2	O-Ring	(SUB FOR U15192, THIS APPLICATION)
12	AT137134	1	HYDRAULIC HOSE	(SUB FOR AT159765)
13	AT138097	1	ELBOW FITTING	-
14	AT136464	1	O-RING	-
15	AT107392	2	Adapter Fitting	(SUB FOR AT136355)
16	CH11564	2	Packing	-
17	T77858	2	O-Ring	(SUB FOR T15710, THIS APPLICATION)
18	AT137127	1	HYDRAULIC HOSE - FABRICATE	-
18	AT164017	1	HOSE	-
19	AT136392	2	ADAPTER FITTING	-
20	CH10569	2	Packing	-
21	T77613	2	O-Ring	-
22	AT137128	1	HYDRAULIC HOSE - FABRICATE	-
22	AT164018	1	HOSE	-
23	AT114853	1	Adapter Fitting	-
24	TH101926	1	O-Ring	-
25	T76938	1	O-Ring	(SUB FOR U15192, THIS APPLICATION)
26	AT137129	1	HYDRAULIC HOSE - FABRICATE	-
27	AT137131	2	ADAPTER FITTING	-
28	AT136464	2	O-RING	-
29	T76938	2	O-Ring	(SUB FOR U15192, THIS APPLICATION)
30	AT137130	1	HYDRAULIC HOSE - FABRICATE	-
31	4189535	1	Adapter Fitting	-
32	TH101926	1	O-Ring	-
33	T76938	1	O-Ring	(SUB FOR U15192, THIS APPLICATION)
13A	AT138097	2	ELBOW FITTING	-
14A	AT136464	2	O-RING	-

TORQUE CONVERTER AND TRANSMISSION HYDRAULICS [02B16]
