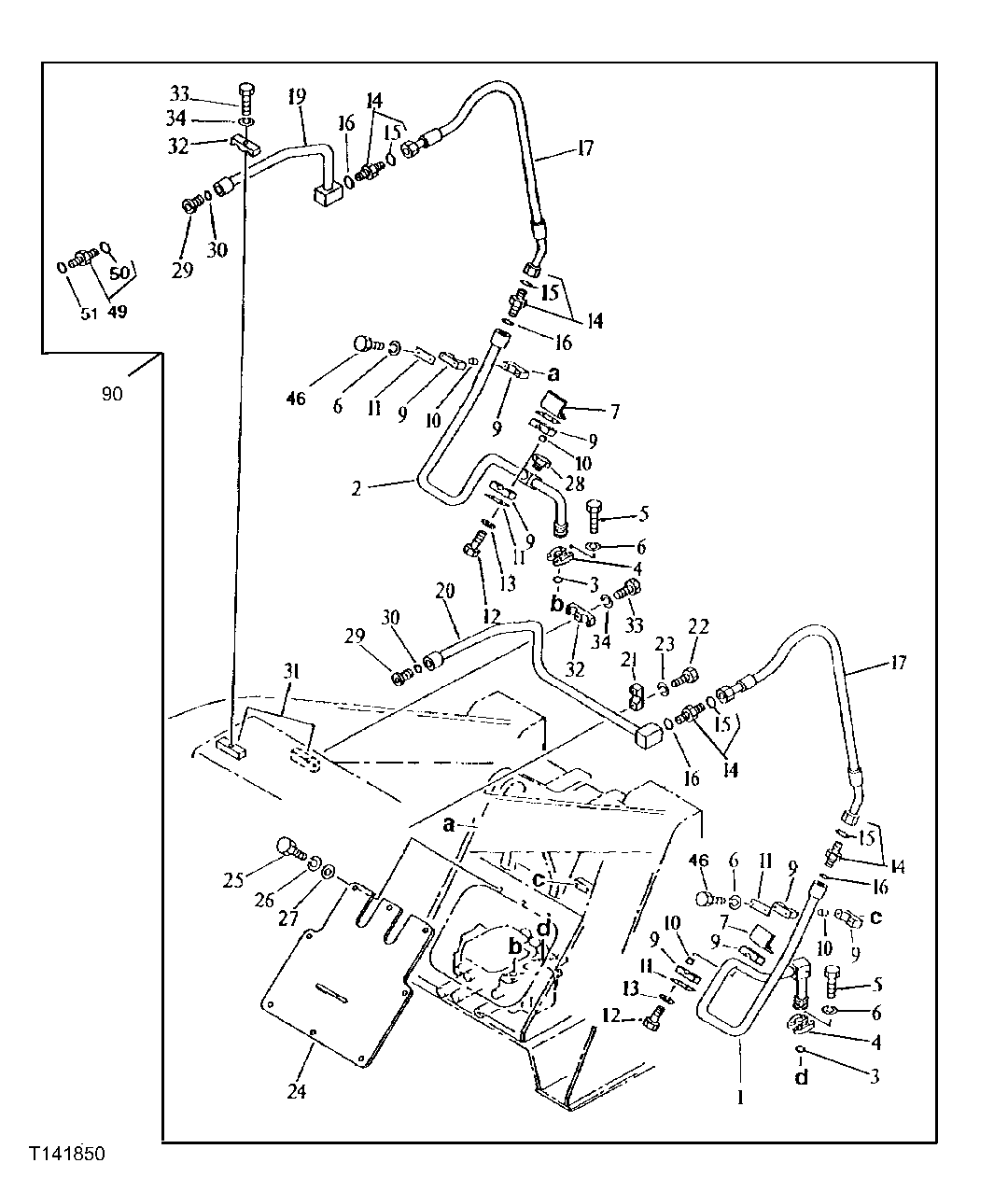

THIRD FUNCTION LINES AND HOSES (TO BOOM AND BUCKET) [03D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT172379	1	OIL LINE	(SUB FOR AT136374)
2	AT172380	1	OIL LINE	(SUB FOR AT136375)
3	T78313	2	O-Ring	(SUB FOR AT136376)
4	H61354	4	Flange Fitting	(SUB FOR AT136377)
5	19M7662	8	Cap Screw	M10 X 30
6	12M6791	8	Lock Washer	10.200 MM
7	-	2	Part 7	-
9	AT136379	4	CLAMP	-
10	AT136380	8	BUSHING	-
11	AT133606	8	STRAP	(SUB FOR AT136381)
12	19M7949	4	Cap Screw	M12 X 100
13	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
14	4189535	4	Adapter Fitting	-
15	TH101926	4	O-Ring	-
16	T76938	4	O-Ring	(SUB FOR U15192, THIS APPLICATION)
17	AT136383	2	HYDRAULIC HOSE - FABRICATE	-
19	AT158809	1	OIL LINE	(SUB FOR AT138136)
20	AT158810	1	OIL LINE	(SUB FOR AT137795)
21	AT136385	4	CLAMP	-
22	19M7331	2	Cap Screw	M12 X 65
22	19M7817	2	Screw	M12 X 70, (SUB FOR 19M7753)
23	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
24	AT158804	1	COVER	(SUB FOR AT136386)
25	19M7268	8	Cap Screw	M12 X 25
26	12M7067	8	Lock Washer	12 MM, (SUB FOR 12M6268)
27	24M7047	8	Washer	13 X 24 X 2.500 MM
28	T116250	3	FITTING PLUG	-
29	TH104733	2	FITTING PLUG	(SUB FOR AT136387)
29	38H1419	2	Fitting	-
30	TH101926	2	O-Ring	-
30	U15192	2	O-Ring	-
31	AT158808	1	STRAP	-
32	AT136388	2	CLAMP	-
32	AT158807	4	CLAMP	-
33	19M7331	2	Cap Screw	M12 X 65
33	19M7390	2	Cap Screw	M12 X 75
34	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
46	19M7332	4	Cap Screw	-
49	4189535	2	Adapter Fitting	-
50	TH101926	2	O-Ring	-
51	T76938	2	O-Ring	(SUB FOR U15192, THIS APPLICATION)
90	AT136328	1	KIT	(INCLUDES ALL PARTS THIS PAGE AND OTHERS REQUIRED TO CONVERT TO THIRD FUNCTION)

THIRD FUNCTION LINES AND HOSES (TO BOOM AND BUCKET) [03D05]
