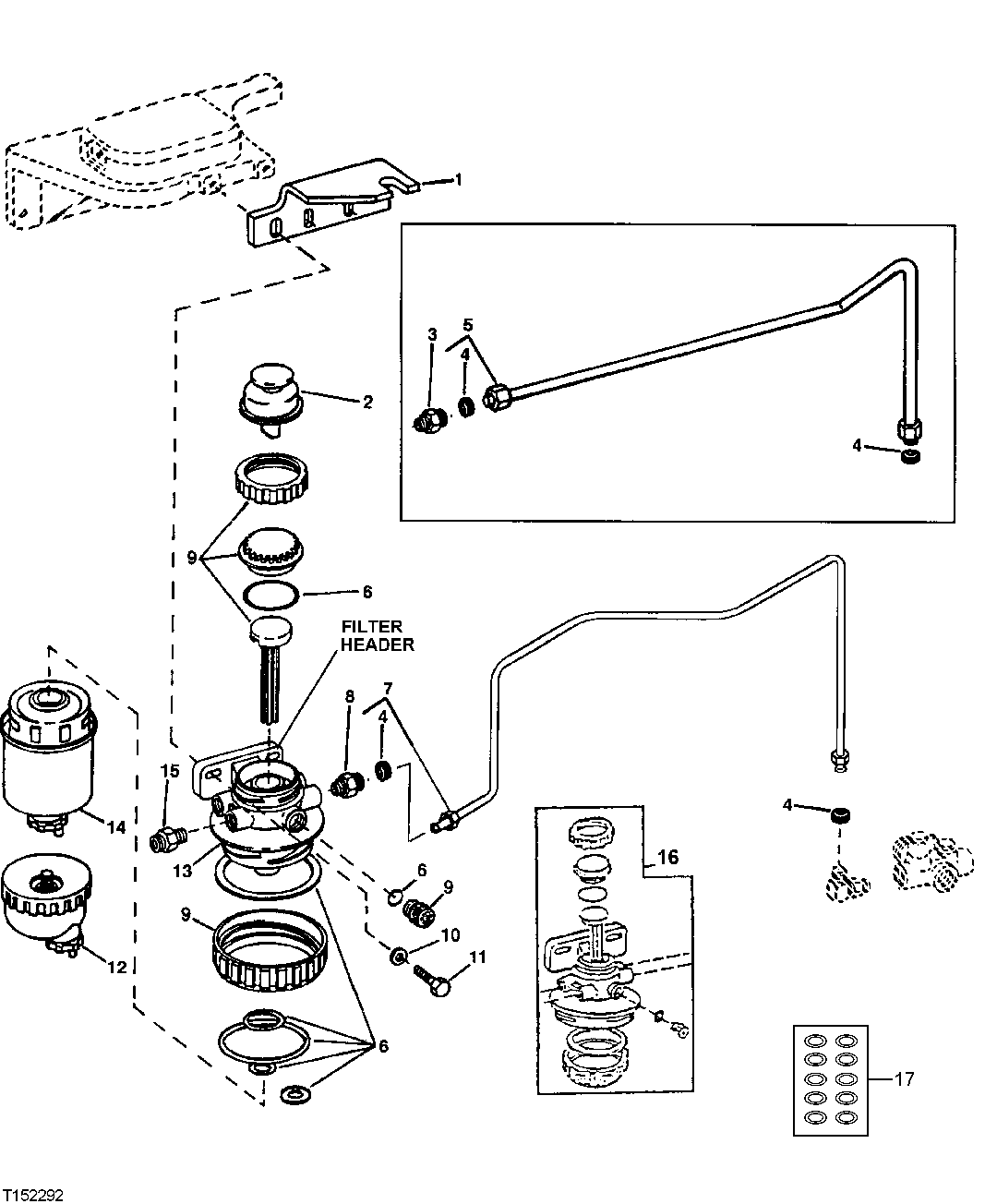

PRE-FUEL FILTER AND LINE (ENGINE SERIAL NO. 500000- ) [01I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R101122	1	Bracket	-
2	RE50467	1	Hand Primer	(HAND PRIMER)
3	R51133	1	Fitting	(USE WITH RE53719)
4	R67092	2	Sealing Washer	-
5	RE53719	1	Line	(USE WITH R51133) (SUB RE55643 AND R120462)
6	RE516553	1	Seal Kit	(SUB FOR RE50752) (ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286) (FUEL FILTER PACKINGS)
7	RE55643	1	Line	(SUB FOR RE53719) (USE WITH R120462)
8	R120462	1	Fitting	(USE WITH RE55643)
9	RE51649	1	Seal Kit	(MECHANICAL COMPONENTS)
10	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
11	19H3483	2	Cap Screw	3/8" X 1-1/8"
12	RE51650	1	Sediment Bowl	-
13	RE55763	1	Base	(USE W/ RE53729 ONLY) (SUB FOR RE54077) (SUB RE508633 AND RE63183)
13	RE63183	1	Filter Head	NO LONGER AVAILABLE, (SUB RE500161) (ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286) (USE WITH RE65431 OR RE508633)
14	RE53729	1	Filter Element	(USE WITH RE55763) (SUB RE508633)
14	RE508633	1	Filter Element	(USE WITH RE63183 AND RE500161) (SUB FOR RE65431)
15	M87733	1	Adapter Fitting	-
16	RE500161	1	Filter Kit	PRIMARY FILTER (WHEN REPLACING RE63183, ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)
17	RE516513	1	Pump Repair Kit	(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)
17	RE516512	1	O-Ring Kit	(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)

PRE-FUEL FILTER AND LINE (ENGINE SERIAL NO. 500000- ) [01I15]

Нет текстового описания
