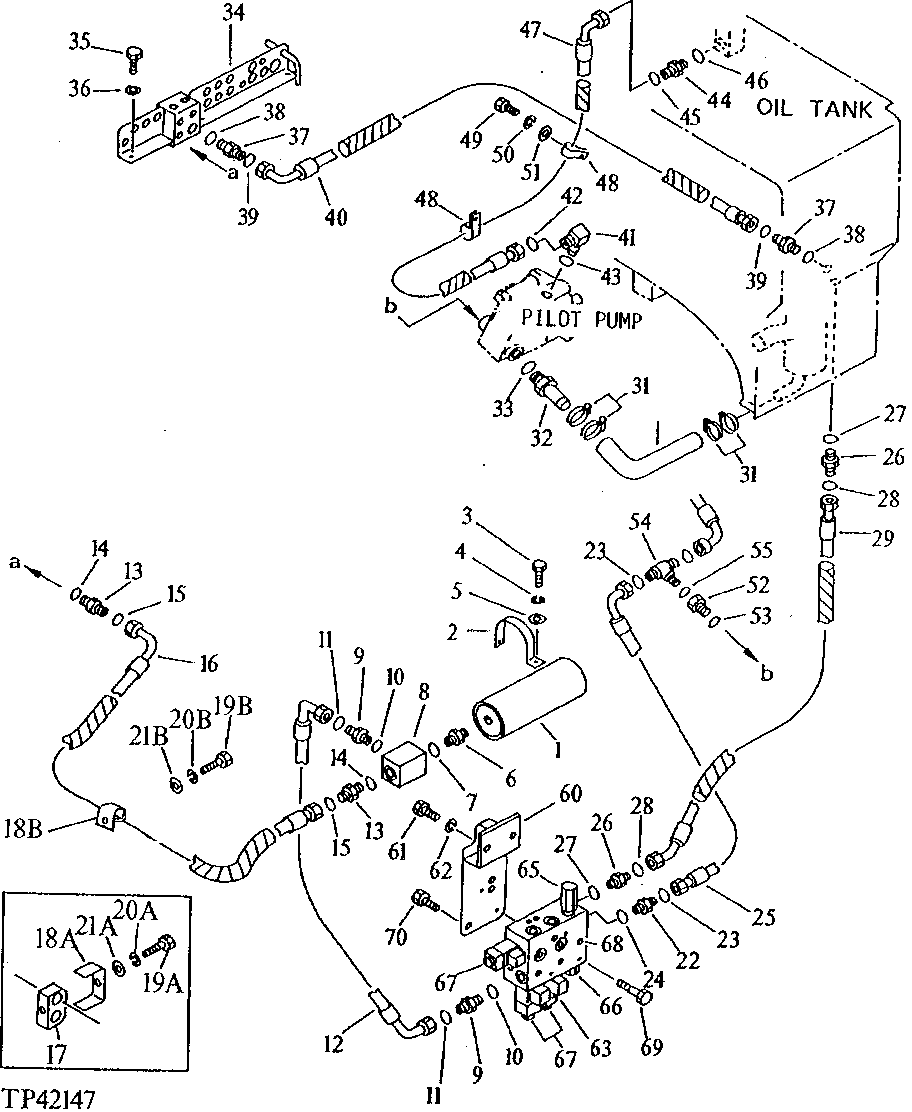

PILOT HOSES (PILOT TO RESERVOIR) [03C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
32	AT137725	1	FITTING	-
33	R29936	1	O-Ring	-
34	AT137735	1	HOUSING	-
35	19M8324	3	Cap Screw	M10 X 16
35	19M8324	2	Cap Screw	M10 X 16
36	12M6791	3	Lock Washer	10.200 MM
36	12M6791	2	Lock Washer	10.200 MM
37	AT107392	2	Adapter Fitting	(SUB FOR AT136355)
38	TH100055	2	O-Ring	-
39	T77858	2	O-Ring	(SUB FOR T15710, THIS APPLICATION)
40	AT137696	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 400 MM (55") X 1-3/16"
41	AT138133	1	ELBOW FITTING	-
42	T77613	1	O-Ring	-
43	R26448	1	O-Ring	-
44	AT136392	1	ADAPTER FITTING	-
45	T77613	1	O-Ring	-
46	CH11570	1	O-Ring	-
47	AT102866	1	Hydraulic Hose	11/16" X 1 445 MM (57") X 11/16"
47	AT317601	1	HYDRAULIC HOSE - FABRICATE	13/16" X 1 524 MM X 13/16", (ALSO ORDER 38H1013)
48	T115715	2	Clamp	-
49	19M8324	2	Cap Screw	M10 X 16
50	12M6791	2	Lock Washer	10.200 MM
51	24M7028	2	Washer	10.500 X 20 X 2 MM
52	L32705	1	Threaded Nipple	-
53	R29936	1	O-Ring	-
54	AT137734	1	TEE FITTING	-
55	R26448	1	O-Ring	-
60	-	1	Part 28	( AT137675 NO LONGER AVAILABLE)
61	19M8029	2	Cap Screw	M16 X 30
61	19M7417	2	Cap Screw	M16 X 65
62	12M7069	2	Lock Washer	16 MM
63	AT137687	1	VALVE	(INCLUDES ALL "A" PARTS FOLLOWING) (MANIFOLD BLOCK ASSEMBLY)
65	AT103404	1	Hydraulic Pressure Valve	(A) (SUB FOR AT137688) (PRESSURE REGULATING)
66	AT137689	1	CHECK VALVE	(A)
67	AT139972	3	Solenoid Valve	(A) (SUB FOR AT137690) (SOLENOID, DIFF LOCK, CCO, PARK BRAKE)
67	R26906	3	O-Ring	-
68	TH100689	11	Fitting Plug	(A) (SUB FOR T115329)
69	19M8554	2	Screw	M8 X 65
70	19M8446	1	Screw	M8 X 20
65A	-	1	Part 34	(A) (RELIEF SEAL REPAIR) ( AT138235 NLA) (ORDER R26906, R28776, R33259, (2) T101763, (2) T101764)
